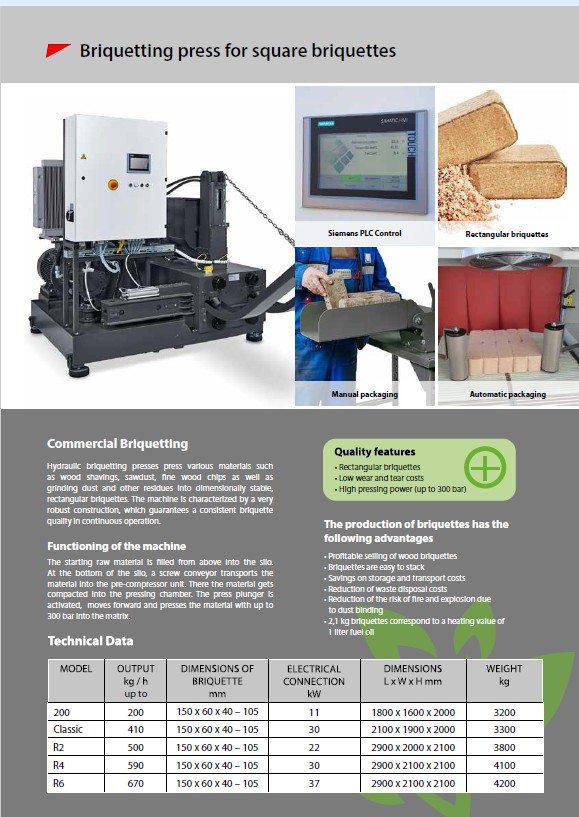

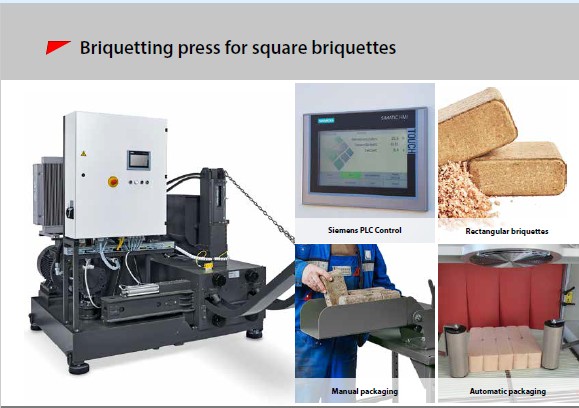

Mütek briketpresse for square briquettes 150x60x40 mm





Download katalog her.

Kontakt for mere information her.

Mütek briketpresse for square briquettes 150x60x40 mm
Fra 200 til 670 kg/t.

Model Classic:

Briquett-Dimensions: 60 x 150 mm
Briquett-Leangths: 40 to 105 mm (adjustable)
Hydraulic Pre-Compression
Hydraulic Main-Compression
Pressingpower: up to 1700 kg/cm²
Hydraulicsystem with 260 liter Oiltank
Pumpmotor 30 kW / 400V / 50Hz / 3ph
Manual Mode of all Cylinders
Electric Panel dustproof
with PLC
Total Consumption: appr. 33 KW
Dimensions (lxwxh): 2100 x 1900 x 2000 mm
Weight: appr. 3300 kg
.
inklusive:
– 2 Transport-Tubes appr. 1,5 m long
– Packaging Table
– Oil-deficiency-switch
.
Requirements for the raw material:
– the water content (ATRO) has to be between 6 % – 15 %
– max. length of the material: 20 x 2 x 2 mm
– the temperature where the machine is placed has to be at
minimum +5 degrees
– The customer must protect himself against hydraulic oil
loss
– The supply unit has to be free of metals and mineral
contamination. Otherwise, damages on the pressing tools
and / or increased requirement of wear parts could be the
consequence.

VIGTIGT:
For optimal briketfremstilling leveres til alle pressere et bredt program af ekstraudstyr, som gør det muligt at tilpasse pressen præcis efter materiale, riftstimer, samt de færdige brikkerts kvalitet og holdbarhed.

Bemærk: den bedste træbrikket opnås, hvis træaffaldet ligger mellem 8 – 17 % fugtindhold.
Størrelse for materiale: Max 10 mm +/- 2 mm.

Dette er blot et udvalg af materialer der kan briketteres:

  • Høvlspåner
  • Savsmuld
  • Tekstilmateriale
  • Træuld
  • Halm
  • PVC materiale
  • kork
  • skumrester
  • isoleringsmaterale
  • metal / aluminium
