Stromab US 800 Automatic Beam Processing Centre

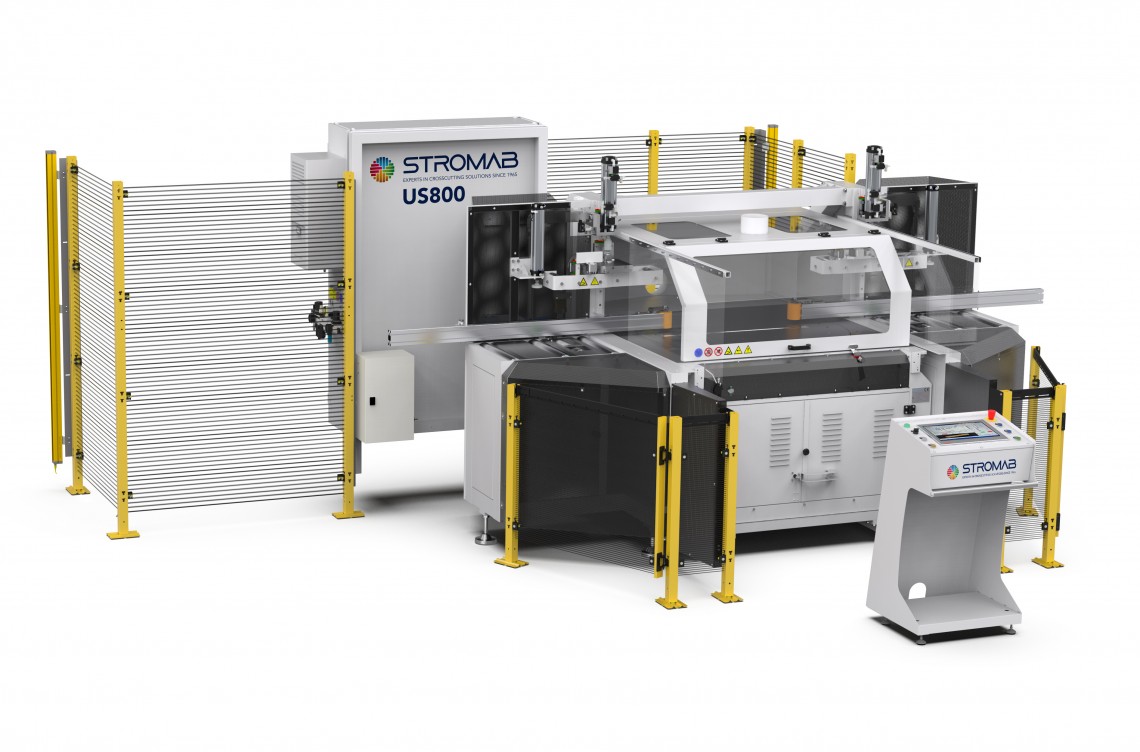

Stromab US 800 AUTOMATIC BEAM PROCESSING CENTRE

US800 is the cutting centre for large-section beams, making it the optimal solution in carpentry and timber frame construction.
Thanks to an electronically controlled 5-axis technology, it satisfies all straight, tilting and compound cutting requirements.
It guarantees maximum processing speed and finished product quality, reducing labour and maximising production.

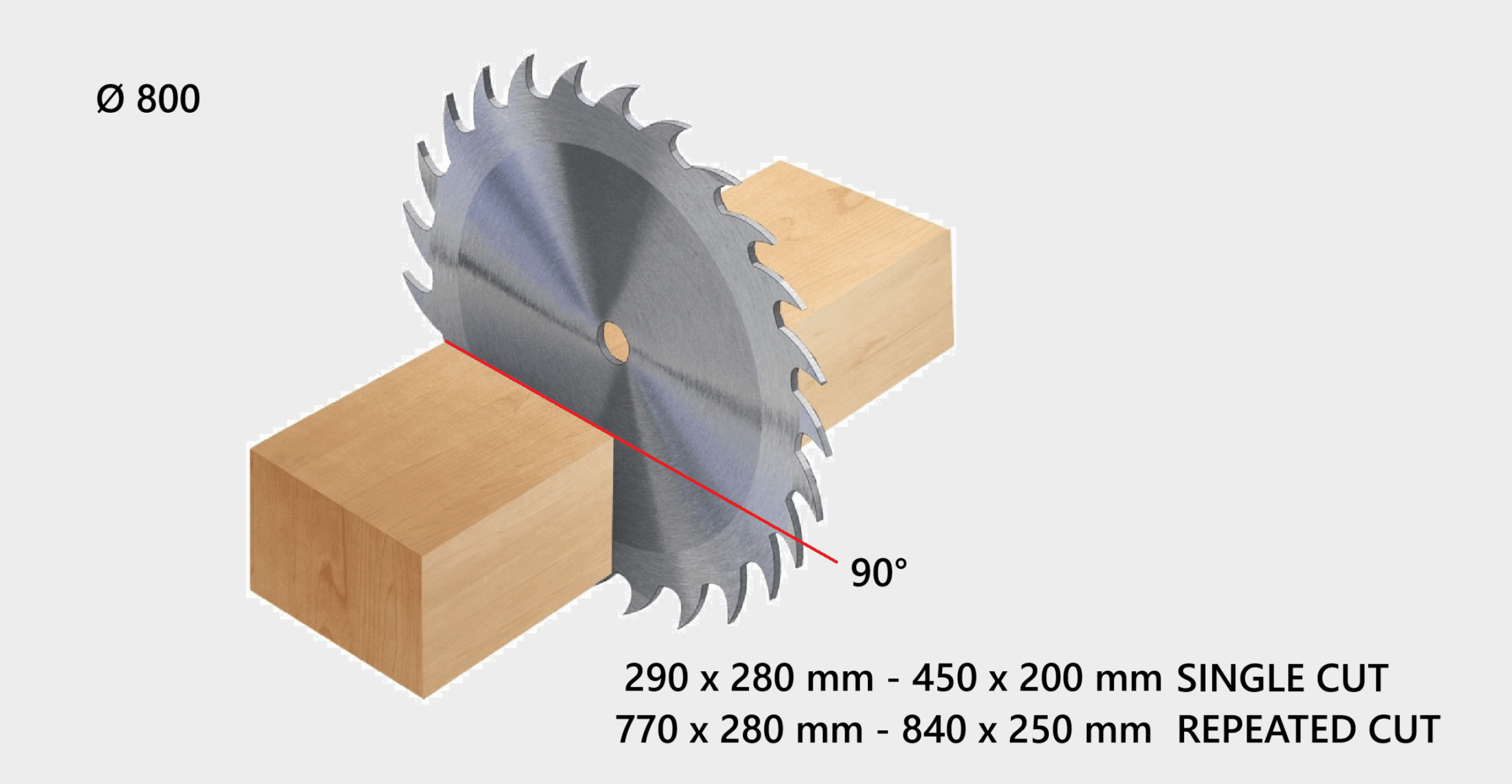

US800 can process beams of any length with cross-sections from 120×45 mm up to 290×280 mm.
Beam movement system with motorised rubberised wheels and pneumatically tilting upper pressers.
The software architecture relies on a CAD-CAM ‘Stromab Easy-Wood’ to import machining lists
generated by external design software such as SEMA, DIETRICH AND CAD-WORK.
Easy and intuitive graphical interface.

Technical specifications Cutting unit

Blade diameter 800 mm

Blade rotation speed 1450 rpm

Blade motor power kW 15 (HP 20) with Inverter

Blade driving Automatic electronically controlled

Working table height 1000 mm

Minimum crosscutting section 120 x 45 mm

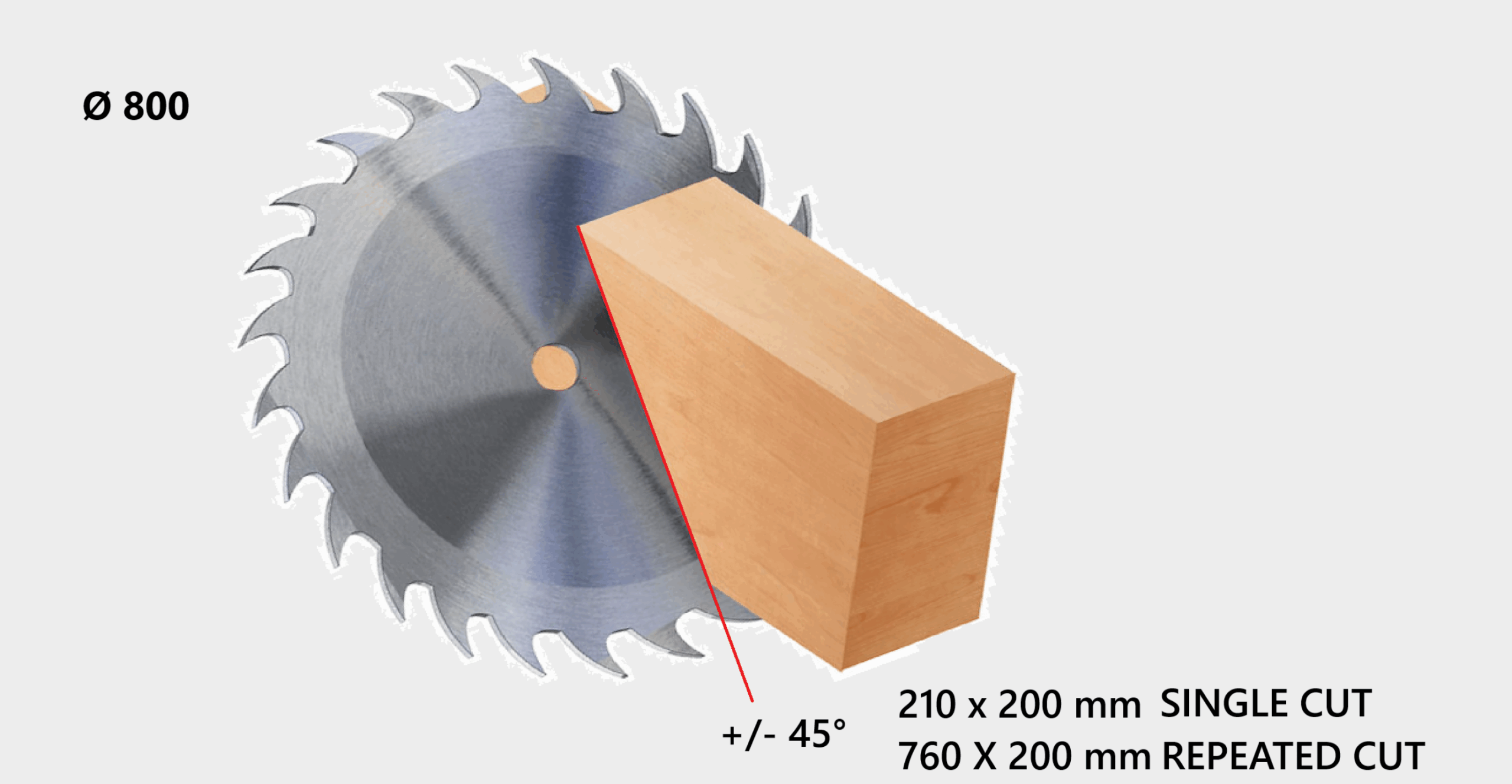

Blade inclination -45° +45°

Blade rotation 0° – 360°

Beam feed speed on rollers 0 – 17 mt / min

Workpiece loading left or right side

Max operating pressure 6-8 bar

Extraction outlets 2 x Ø150 mm

Net weight 2950 kg
