Stromab US 10 – 11 og 12 radialarmsav

RADIAL CARPENTRY SAWS
COMPOUND CUTTING FOR LARGE SECTIONS

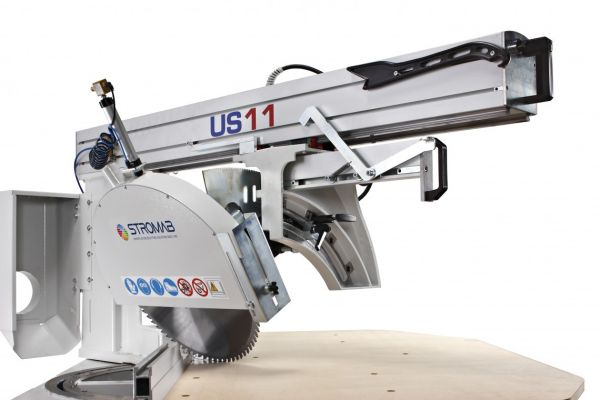

US12 was built to meet the needs of cutting large sections in combination with blade tilting and arm rotation.
All machine movements, tilting, rotation and blade feed are manually controlled by the operator.
The machine’s fixed zero point ensures that both rotation and tilting are always dimensionally stable
with respect to the length indicated on the measuring system.

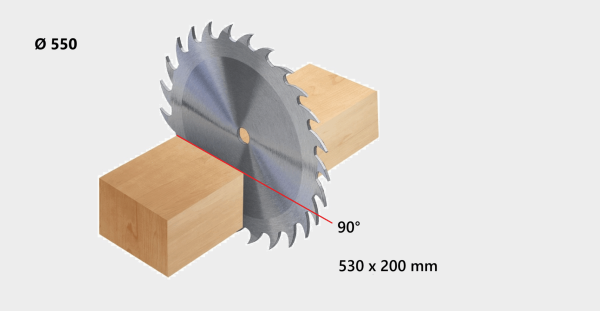

With a blade diameter of 550 mm and a motor power of 4 kW, it can cut up to 200 mm thickness and 530 mm width.
Possibility of integrating the STROMAB STOP automatic measuring positioner to create a semi-automatic cutting line.

STANDARD EQUIPMENT
• Motor protection switch with release coil.
• Mechanical motor brake.
• Spring-operated carriage return.
• Mechanical end-stop.
• Emergency push button

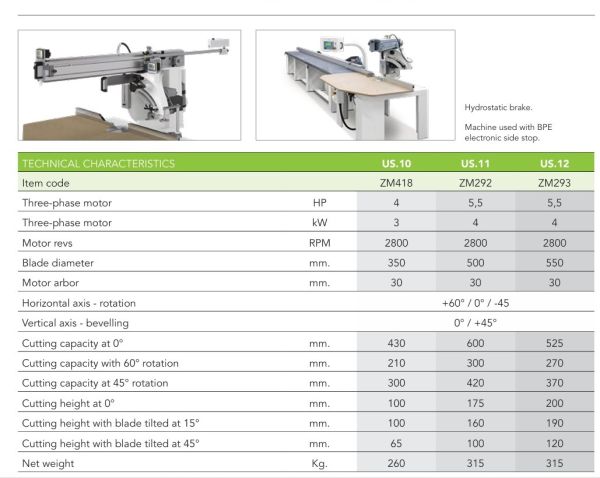

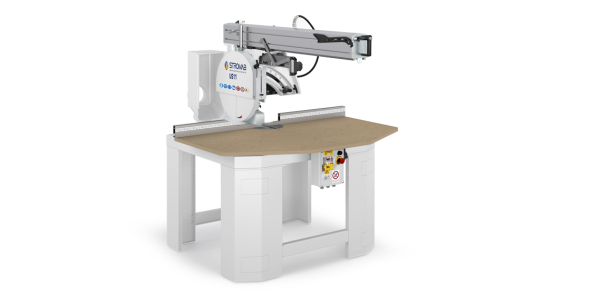

UNIVERSAL RADIAL MANUAL SAW “US12”
11.750
Motor 400/3/50 Hp.5,5 (kW 4)
Total weight kg.320
Complete with:
TCT blade Ø 550 mm F=30
Blade speed 2800 Rpm
Horizontal axis – Rotation +60° / 0° / -45°
Vertical axis – Beveling 0° +45°
Horizontal axis rotation pneumatically locked
Rotation and beveling on board
N°1 dust extraction outlet 150mm.

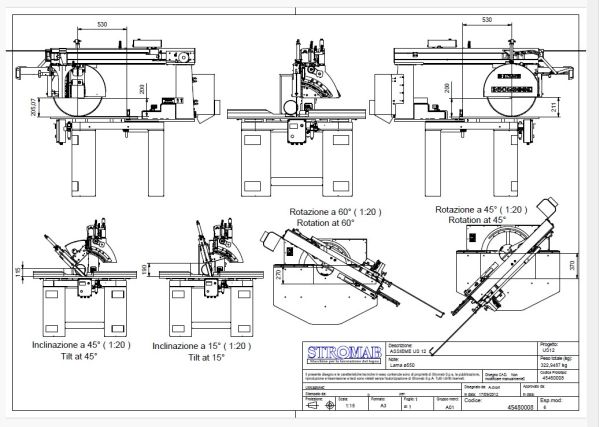

Cutting capacity:
Cutting capacity at 0°: 525mm.
Cutting capacity at 60° – rotation: 270mm.
Cutting capacity at 45° – rotation: 370mm.
Cutting height at 0°: 200mm.
Cutting height at 15° – beveling: 190mm.
Cutting height at 45° – beveling: 110mm.
The rollers table is always complete with scale ZA022
Ekstra:
ZA292 Horizontal axis rotation display (arm)

ZA293 Vertical axis rotation display (blade)

Manual side stop is an optional ZA048
