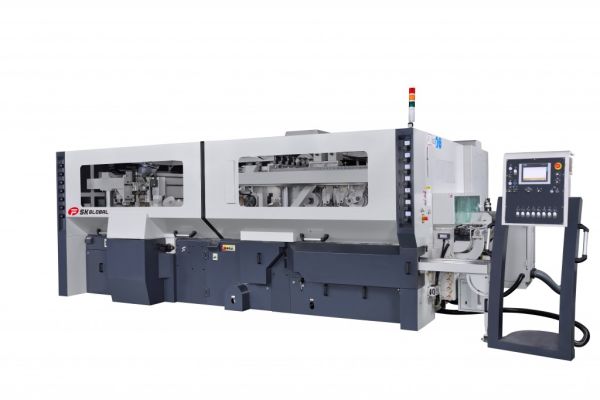

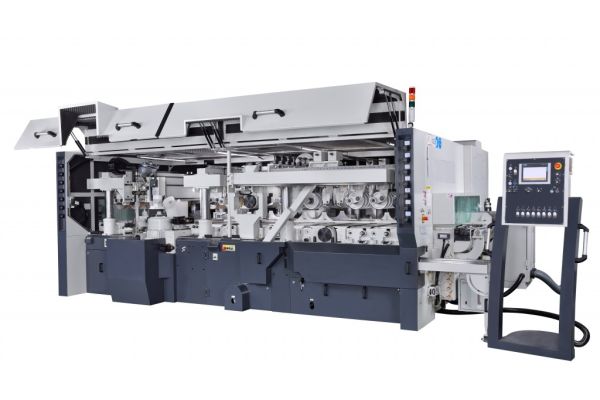

SK Global Beam Planer SKL 4130 MPL 260 x 1300 eller 200 x 610 mm 2 – 4 spindler

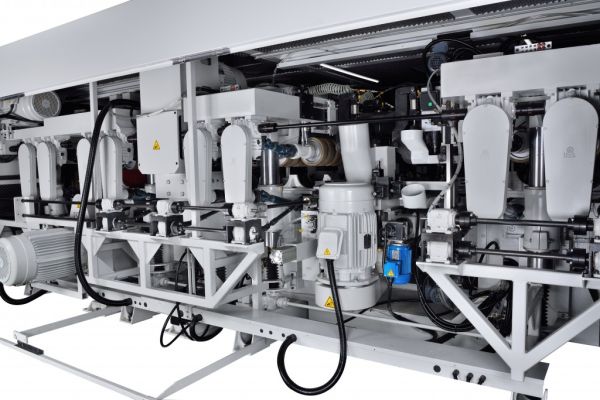

SK Global Beam Planer SKL 4130 MPL kehlemaskine 260 x 1300 mm

med 4 spindler.
Min.-Max. emnebredde 90 x 1300 mm motor over/under 2 x 60,0 Hk
Min.-Max. emnehøjde 50 x 260 mm motor højre/venstre 2 x 30 Hk

-Infeed fence with non-reference engraving

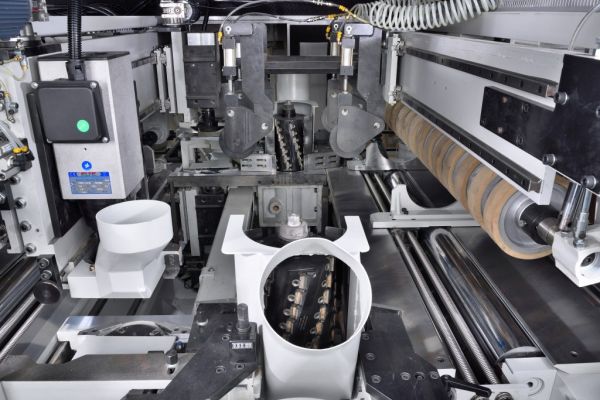

-Horizontal spindle equipped with outboard bearing support
-Steel body

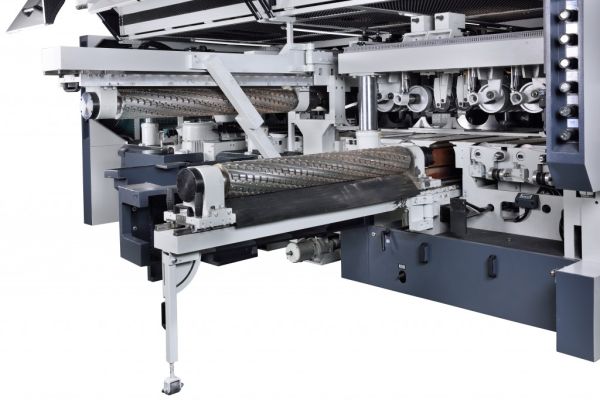

-Power driven upper roller

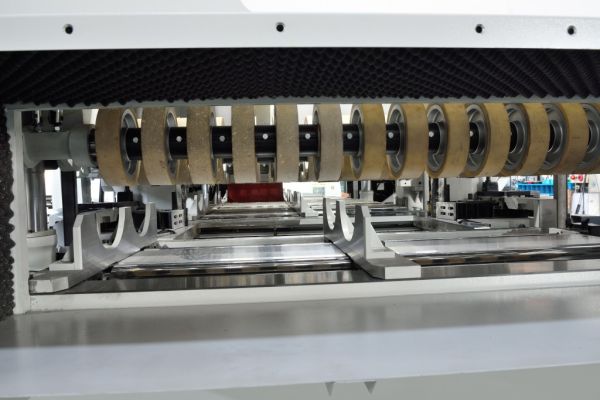

-Steel rollers before top spindle, rubber rollers after top spindle under standard spindle arrangement & 5 units of bottom roller are equipped with power driver roller on the feed table
-NC controller for auto setting thickness and width
-Movable control panel with 5m cables
-Adjustment of infeed table and fence at the front of the machine
-Max. adjustment range of vertical spindle (axial) 60mm

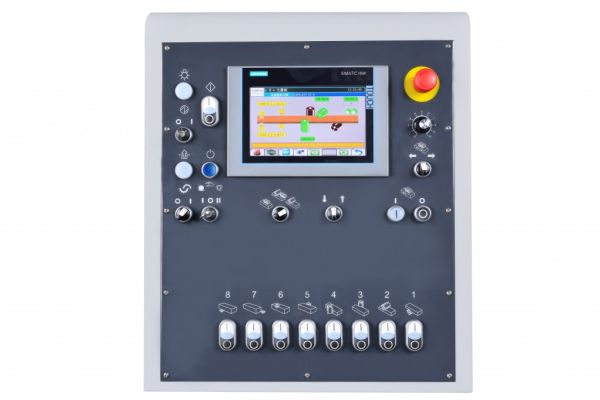

Control Panel

-9″ HMI (Memory 300 sets)
-Automatic machine quick setup
-Easy and powerful functionality
-Setworks on any axis as desired
-The Motorized Axes: derived by inverter, transmitted by ball screw, feedback by encoder
-The desired values for radial and axial are displayed on HMI.

Heavy timber structures require powerful and precise processing equipment.

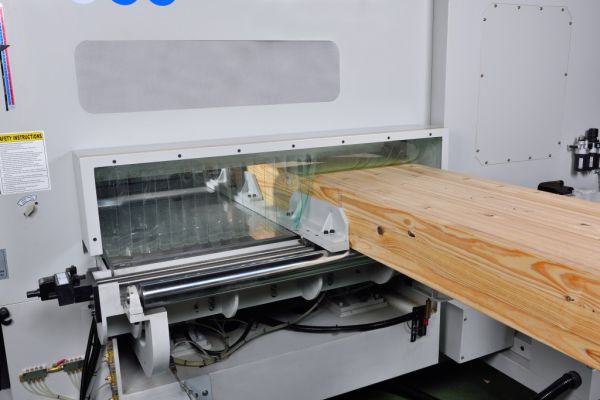

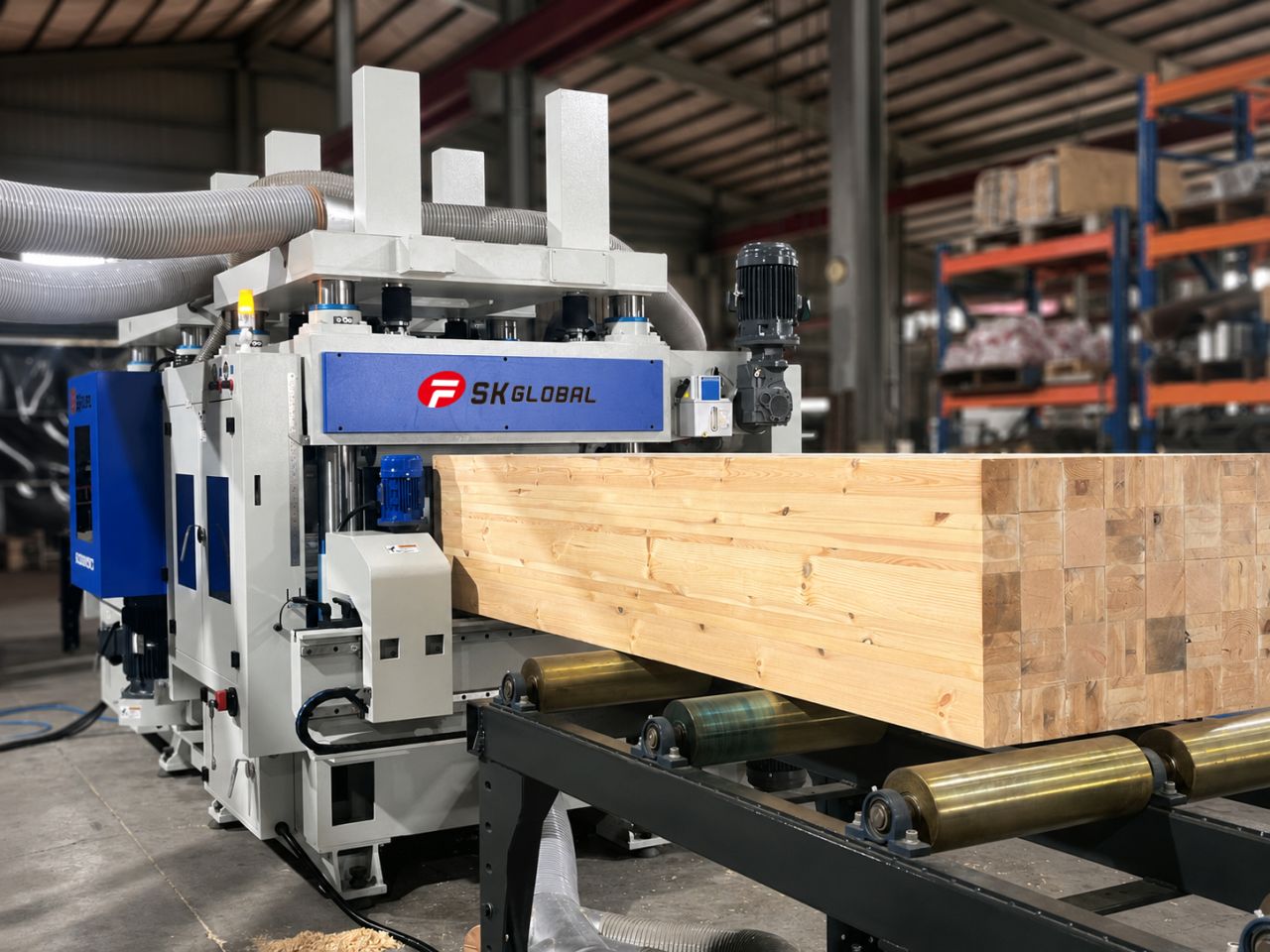

This heavy-duty four-side planer is designed for large Glulam components, including straight and curved beams.
It offers a maximum working width of 850 mm and a maximum working thickness of 500 mm.

After gluing and pressing, the Glulam beams undergo final four-side planing to achieve the required dimensions, create smooth surfaces, and remove residual glue before completion.

From material preparation and pressing to final machining, every step is essential to the quality of Mass Timber components.

SK Global SK 1300 DSP 2 sidet høvlemaskine 260 x 1320 mm

Tekniske data for 1320 mm 2 sidet over/under

Tekniske data for 610 mm 2 sidet over/under

Høvlebredde 610 mm
Høvlehøjde 200 mm
