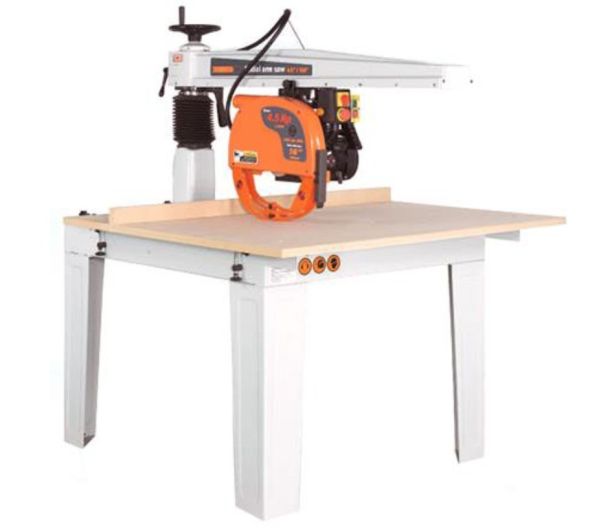

SK Global BS 999 radiarlarmsav

-Motor: 4.5 HP/3PH
-Motor speed: 2900 rpm
-Bearings for rails: Linear bearing / 8pcs
-Spindle bore: Ø 30 mm
-Blade diameter: 508 mm (sawblade is excluded)
-Thickness of cut: 155mm
-Head swiveling: 0~180°
-Head tilting: 0~90°
-Max trimming width: 1140 mm
-Max cross cutting length: 18”
-Table area L x W: 820 x 1140 mm
-Machine size: 1450 x 1250 x 1600 mm
-Packing size: 1480 x 1070 x 790 mm
-N.W/G.W: 250/290 kgs
-Attach with below
Brake Motor
Safety Switch Box
Infrared Device
Rear Dust Collection Cover
Return Spring
Safety Guard Interlock Plug-in Switch
Motor Auto Home-Position Locking Device

Ekstra udstyr:

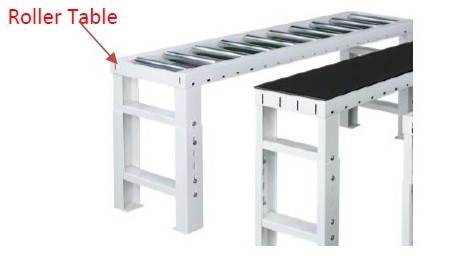

Rullebord kan også leveres med lineal og klapstop
