ROJEK Tykkelseshøvl RFT 530 og 630

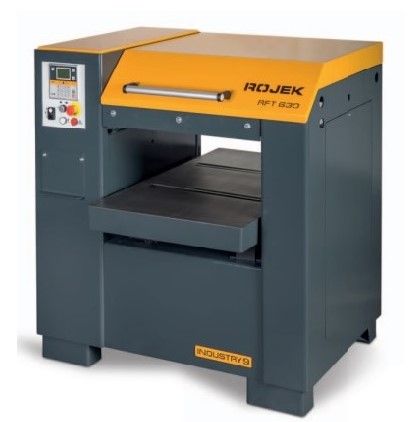

RFT 630 INDUSTRY 9 – Technical data
|
| Thicknesser |

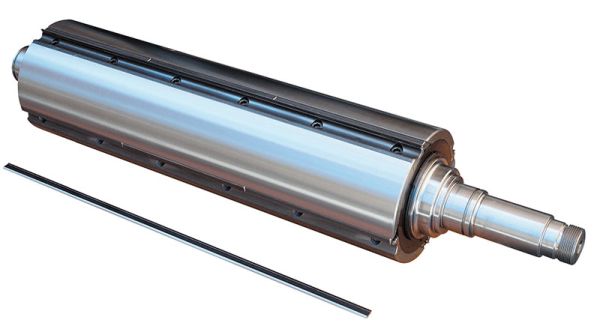

| Diameter of cutterblock |
120 mm |
| Number of cutters |
4 |
| Speed of cutterblock |
5 500/min. |
| Max. thicknessing width |
630 mm |
| Max. thicknessing height |
300 mm |
| Max. stock removal thicknessing |
8 mm |
| Feeding speed |
5 ÷ 20 m/min. |
| Motor power S6 40% |
7,5 kW (9,2 kW) |
| Feeding motor power |
0,55 kW |
| Lifting motor power |
0,25 kW |
| Machine dimensions |
| Length |
1 200 mm |
| Width |
1 170 mm |
| Height |
1 290 mm |

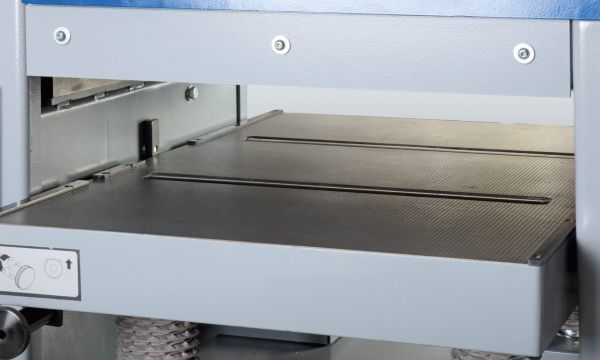

| Table size – Thicknesser |
1 050 x 630 mm |
| Gross weight |
890 kg |
| Nett weight |
870 kg |
| Other parameters |
| Voltage / frequency |
3x400V / 50(60)Hz |
| Noise level (without technology) |
88,3 dB(A) |
| Noise level (with technology) |
95,6 dB(A |
|
Ekstra udstyr:
Tersa rundkutter
Spiral rundkutter
Gummi udtæksruller
Gummi indtræksvalse
Leddelt indtræksrulle
Ruller i bordet
Sakserullebord til montering efter maskinen
RFT 530 INDUSTRY 9 – Technical data
|
| Thicknesser |
| Diameter of cutterblock |
120 mm |
| Number of cutters |
4 |
| Speed of cutterblock |
4 500/min. |
| Max. thicknessing width |
530 mm |
| Max. thicknessing height |
250 mm |
| Max. stock removal thicknessing |
8 mm |
| Feeding speed |
4 – 8 m/min. |
| Motor power S6 40% |
4,0 kW |
| Feeding motor power |
0,55 kW |
| Lifting motor power |
0,25 kW |
| Machine dimensions |
| Length |
960 mm |
| Width |
900 mm |
| Height |
1 140 mm |
| Table size – Thicknesser |
960 x 530 mm |
| Gross weight |
790 kg |
| Nett weight |
770 kg |
|
Ekstra udstyr:
Tersa rundkutter
Spiral rundkutter
Gummi udtræksvalse
Gummi indtræksvalse
Leddelt indtræksvalse
Ruller i bordet
Sakserullebord til montering efter maskinen
