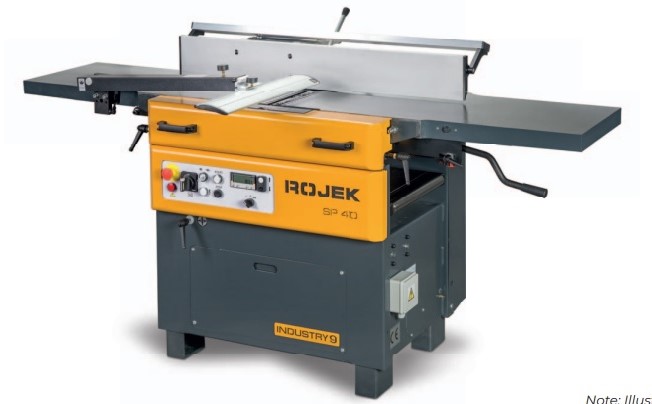

| Combined planer and thicknesser |
| Motor power S6 40% |
5,3kW/3x400V (2,2 kW/1x230V) |
| Motor speeds |
2 840/min.(3 410/min.[60Hz]) |
| Feeding motor power |
0,35/0,45 kW |
| Diameter of cutterblock |
95 mm |
| Diameter of feeding rollers |
40 mm |
| Number of cutters |
4 |
| Fence tilting |
0° ÷ 45° |
| Speed of cutterblock |
4 200/min. |
| Max. planing width |
410 mm |
| Max. thicknessing width |
400 mm |
| Max. thicknessing height |
230 mm |
| Max. stock removal thicknessing |
5 mm |
| Max. stock removal planing |
4 mm |
| Feeding speed |
5,5/10 m/min. (7,5/15 m/min.) |
| Machine dimensions |
| Length |
2 020 mm |
| Width |
750 mm |
| Table height |
890 mm |
| Max. height of machine |
1 080 mm |
| Table size – Planer |
2 020 x 420 mm |
| Table size – Thicknesser |
750 x 408 mm |
| Suction dust hood diameter |
100 mm |
| Dimensions with packing |
2 100 x 810 x 1 100 mm |
| Gross weight |
410 kg |
| Nett weight |
380 kg |
| Other parameters |
| Voltage / frequency |
3x400V (3x230V | 1x230V) / 50(60)Hz |
| Line safeguarding |
16 A |
| Noise level (without technology) |
89,5 dB(A) |
| Noise level (with technology) |
91,6 dB(A) |
| Acustic achievement |
95,9 dB(A) |
| Acustic achievement (with technology) |
98,2 db(A) |
