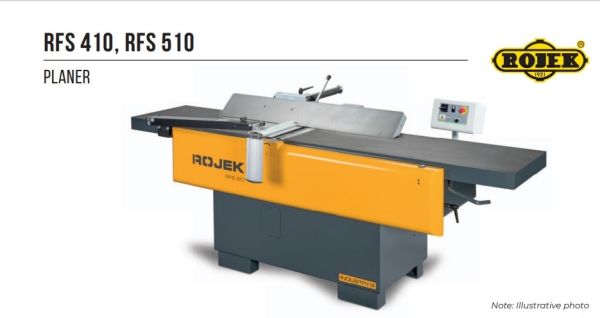

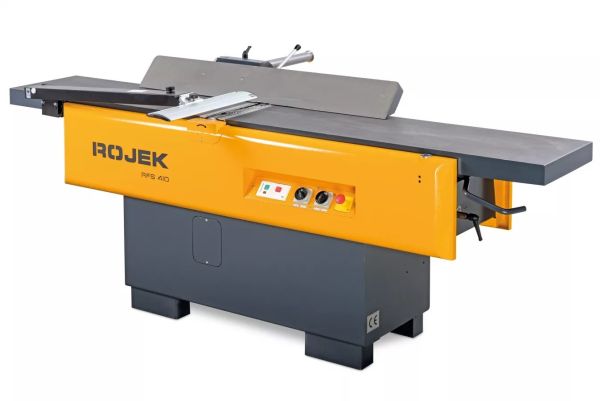

Rojek RFS 410 – 510 afretter





Download katalog her

Kontakt

ROJEK aftetter type RFS 410 og 510 mm





  • Tekniske Data:
  • Høvlebredde 410 mm
  • Længde planer 2600 mm
  • Kipbar sideland 1200 x 160 mm
  • Spindelhastighed 5000 o/min.
  • Antal HSS knive 4 stk
  • Motor 4.0 hk
  • Udsugningsstuds ø150 mm
  • Vægt. 560 kg

Ekstra tilbehør:

Tersa kutter med engangs vendeknive
Spiral rundkuter

RFS 410 INDUSTRY 9 – Technical data
Planer
Motor power S6 40% 5,3 kW
Motor speeds 2 860/min.(3 432/min.[60Hz])
Diameter of cutterblock 116 mm
Number of cutters 4
Speed of cutterblock 5 000/min.
Max. planing width 400 mm
Max. stock removal planing 8 mm
Fence tilting 0° ÷ 45°

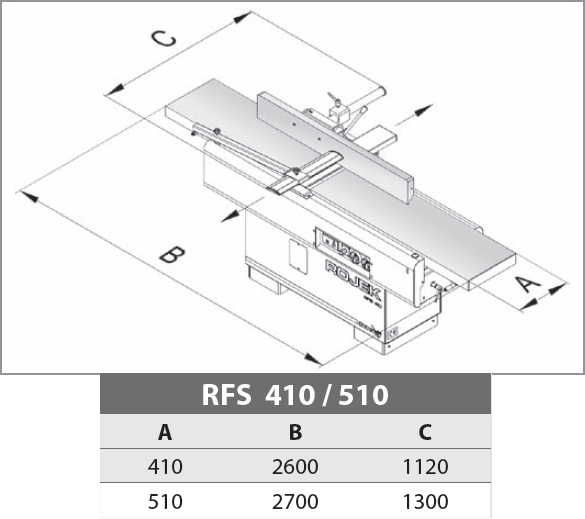

Machine dimensions
Length 2 600 mm
Width 1 120 mm
Max. height of machine 1 070 mm
Table size 2 600 x 410 mm
Table height 890 mm
Suction dust hood diameter 150 mm
Gross weight 560 kg
Nett weight 550 kg
Other parameters
Voltage / frequency 3x400V (3x230V) / 50(60)Hz
Line safeguarding 16 A (25 A)
Noise level without technology LAeq 78,4 dB(A)
Noise level with technology LAeq 86,9 dB(A)
Acustic achievement 86,8 dB(A)
Acustic achievement (with technology) 92,2 dB(

RFS 510 INDUSTRY 9 – Technical data
Planer
Motor power S6 40% 5,3 kW (7,5 kW)
Motor speeds 2 860/min.(3 432/min.[60Hz])
Diameter of cutterblock 116 mm
Number of cutters 4
Speed of cutterblock 5 000/min.
Max. planing width 500 mm
Max. stock removal planing 8 mm
Fence tilting 0° ÷ 45°
Machine dimensions
Length 2 700 mm
Width 1 300 mm
Max. height of machine 1 070 mm
Table size 2 700 x 510 mm
Table height 890 mm
Suction dust hood diameter 150 mm
Gross weight 630 kg
Nett weight 620 kg
Other parameters
Voltage / frequency 3x400V (3x230V) / 50(60)Hz
Line safeguarding 16 A (25 A)
Noise level without technology LAeq 78,4 dB(A)
Noise level with technology LAeq 86,9 dB(A)
Acustic achievement 86,8 dB(A)
Acustic achievement (with technology) 92,2 dB(A)
