Rojek PK 315 A





Download brochure PK-315A ny

Video

Kontakt for mere information

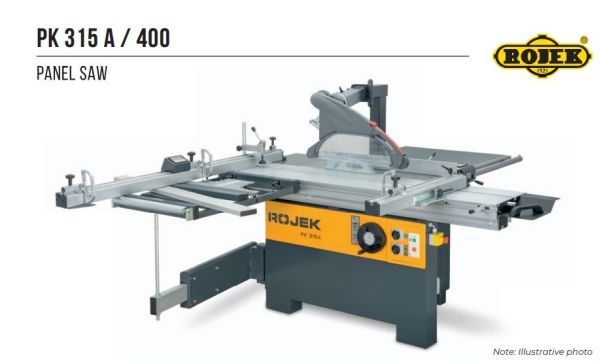

Rojek PK 315A formatsav
Max. klingediameter ø400 mm
Max. skærehøjde 138 mm
Kan leveres i 3 længder på rullebord :
1200 – 2000 – 2600 mm

Foto med ekstra udstyr.



Rojek PK 315A med ø315  – 350 – 400 mm klinge
Alurullebord 1200 eller 2000 mm

MACHINE INCLUDES:
aluminium sliding table on hardened and polished bars CV360T
scoring unit with fi ne adjustment and separate motor 0.75 kW/S6
supporting frame 870 x 630 mm complete for version 2,6 m (2,2 m)

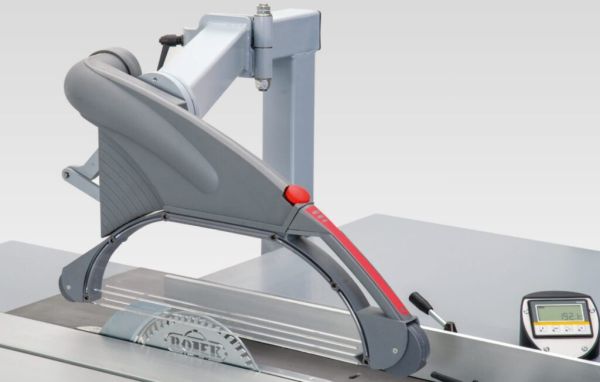

upper suction hood ROJEK with parallelogram, max. diam. 400 mm, max. cut of depth 138 mm*

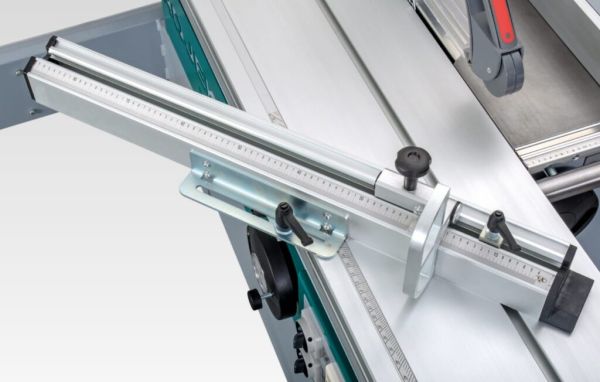

rip fence with fi ne tuning, cast iron holder, aluminum profi le
width of cut 800 mm
table extension
net weight PK 315 A / 400 CV 360T / 2,6 m = 510 kg

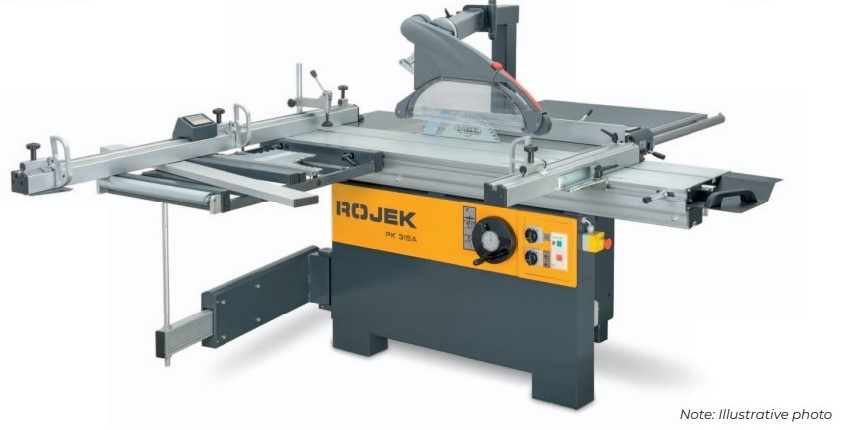

Rojek PK 315A med ø400 mm klinge
Alurullebord 2600 mm

Ekstra udstyr:

CV 360 Aluminium sliding table on steel round bars
Motor power 5,3; 7,5 kW / S60 40%
Width of cut 500; 1050; 1300; 1500 mm
Upper suction hood ROJEK with parallelogram for saw blade diam. 350 (without scoring unit 400) mm
Execution DADO (possibility of milling cutter attachment for droowing) CMT klinge ø203×6,2-20,0×30 Z=12
Execution without scoring unit

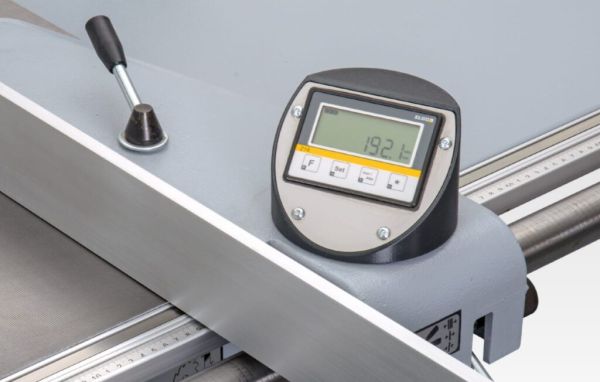

Digital indication ELGO of rip fence position
Digital indication ELGO of cross-cut stop.

Technical parameters

Engine power 4,4 (5,3; 7,5; 2,2 – 1f.) * kW
Motor power of separate pre-cutting 0,75 (1)* kW
Saw blade speed 4400 rpm
Max. blade kerf 315 (350/ 400) 90°: 102 (120/138) mm
45°: 71 (83/86) mm
Max. blade diameter with pre-cut 315 (350/400) mm
Dimensions of the DADO grooving tool max. Ø / width 250 / 20 mm
Saw blade spindle diameter 30 mm (1″ ; 5/8″)
Tilting of blades 90° – 45°
Pre-cutting blade diameter 120 mm
Pre-cutting spindle diameter 20 mm (3/4″)
Pre-cutting speed 8530 rpm (50 Hz)
10236 rpm (60 Hz)
Table dimensions 400 x 955 mm
Cutting width 800 (500;1050; 1300; 1500) mm
Suction diameter 100 + 40 (80) mm
Noise at the workplace under load 92.9 dB
Net weight 510 kg (standard 2 m)

.
