Rojek KPSN 300 – 400 fuldkombineret maskine med kipbar klinge/fræser og forrids

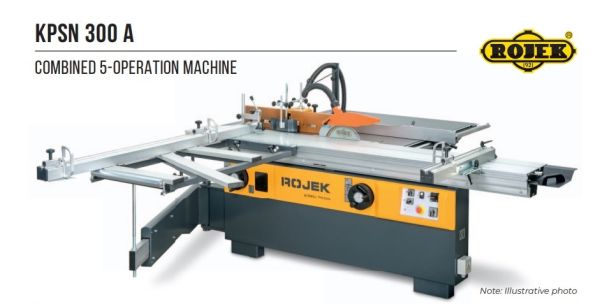

KPSN 300 / 400 A – 5 kombineret maskine med kipbar klinge og fræser |
||
KPSN 300 A – Technical data
| Sav | |
| Motor power | 3,0 kW (2,2 | 3,7 kW) |
| Motor hastighed | 2 865/min.(3 438/min.[60Hz]) |
| Max. sav blade diameter med forrids | Ø 315 mm |
| Spindle diameter | 30 mm (5/8″ | 1″) |
| Speed of main saw blade spindle | 4 400/min. |
| Max. depth of cut with forrids | 100 mm (70 mm [45°]) |
| Saw blade tilting | 0° ÷ 45° |
| Max. width of cut | 800 mm |
| Forrids | |
| Motor power of forrids | 0,5 kW |
| Sav blade diameter | Ø 120 mm (100 mm) |
| Spindle diameter | Ø 20 mm (3/4″) |
| Speed (drive with separate motor) | 8 530/min.(10 230/min.[60Hz]) |
| Fræser | |
| Motor power | 3,0 kW (2,2 | 3,7 kW) |
| Motor speeds | 2 865/min.(3 438/min.[60Hz]) |

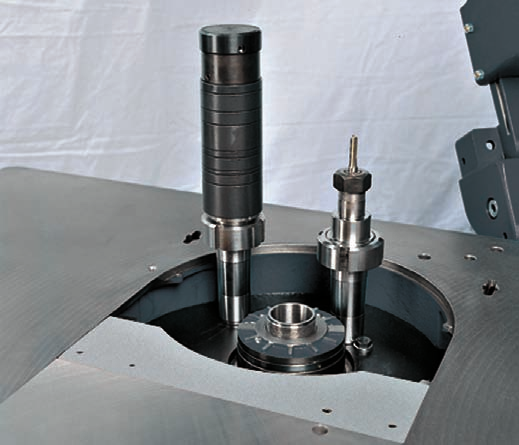

| Spindle diameter | Ø 30 mm (35 | 40 | 50 | 5/4″ | 5/4″/3/4″) |
| Spindle hastighed | 1 400; 3 500; 6 000; 8 000/min. |
| ( 1 400; 3 500; 6 000; 8 000; 10 000/min ) | |
| Max. spindle vandring | 140 mm |
| Spindle længde | 130 mm |
| Max. diameter of table opening | Ø 220 mm |
| Max. tool diameter under the table | Ø 175 mm |
| Max. tool diameter above the table | Ø 200 mm |
| Spindle kip | -5° ÷ +45° |
| Kombineret afretter høvl | |
| Motor power | 3,0 kW (2,2 | 3,7 kW) |
| Motor speeds | 2 865/min.(3 438/min.[60Hz]) |

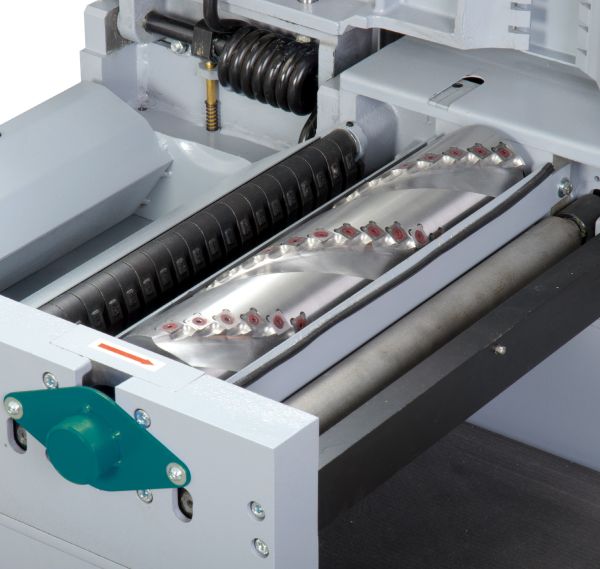

| Diameter of cutterblock | 95 mm |
| Diameter of feeding rollers | 40 mm |
| Antal knive | 3 (4) |
| Kipbar land | 0° ÷ 45° |
| Spindel hastighed | 4 200/min. |
| Max. planing width | 310 mm |
| Max. thicknessing width | 308 mm |
| Max. thicknessing height | 230 mm |
| Max. stock removal thicknessing | 5 mm |
| Max. stock removal planing | 4 mm |
| Feeding speed | 8 m/min. |
| Maskine størrelse | |
| Length (with CV360 – 2 000 mm) | 2 660 mm |
| Length (with CV360 – 2 600 mm) | 2 970 mm |
| Length (with CV360 – 3 200 mm) | 3 390 mm |
| Width | 2 790 mm |
| Table height | 892 mm |
| Max. height of machine | 1 300 mm |
| Table size Saw/Spindle moulder | 1 314 x 479 mm |
| Table size – Planer | 1 600 x 320 mm |
| Table size – Thicknesser | 750 x 308 mm |
| Suction dust hood diameter | 100 mm |
| Gross weight | 857 kg |
| Nett weight | 847 kg |

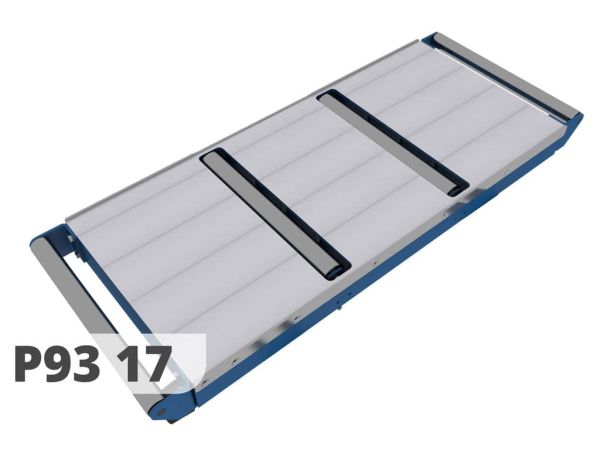

| Alu rullebord | |
| Table size | 2 000 (2 600 | 3 200) x 360 mm |
| Dimensions of supporting frame | 1 240 x 650 mm |
| Length of cut | 2 000 (2 600 | 3 200) mm |
| Andre parameters | |
| Voltage / frequency | 3x400V (3x230V | 1x230V) / 50(60)Hz |
| Line safeguarding | 16 A (25 A) |
| Noise level (without technology) | 84,8 dB(A) |
| Noise level (with technology) | 88,3 dB(A) |
| Acustic achievement | 81,5 dB(A) |
| Acustic achievement (with technology) | 103,4 dB(A) |
|
KPSN 400A EURO 9 – Technical data |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
