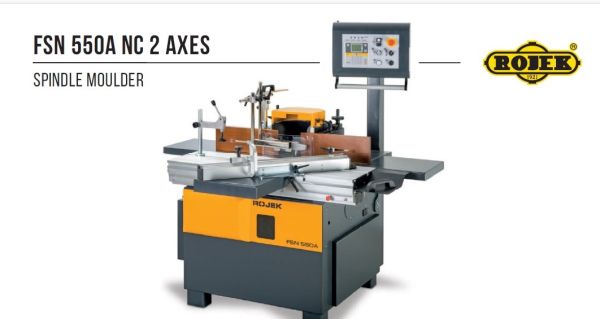

Rojek FSN 550A fræser med kipbar spindel – 5°+45°

Rojek bordfræser model FSN 550A med kipbar spindel– 5°+45°


Alu rullebord 1200 x 360 mm eller 2000 x 360 mm

Kan leveres med elektrisk spindelvandring.

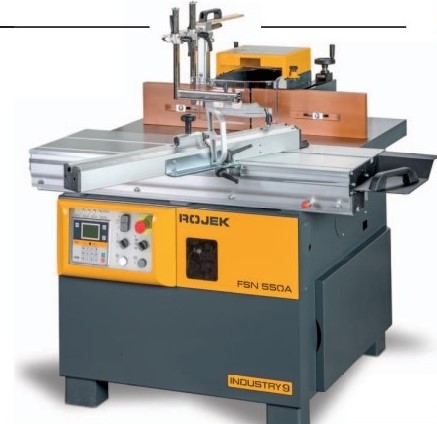

FSN 550A INDUSTRY 9 – Technical data

Spindle moulder
Motor power S6 40% 5,3 kW (7,5 kW)
Motor speeds 2 900/ min.
Spindle diameter 30 (32 |35 | 40 | 50 ) mm
Spindle speeds 3 500; 6 000; 8 000; 10 000 (12 500)/ min.
Spindle tilting -5° ÷ +45°
Max. spindle stroke 142 mm
Max. tool height 140 mm (180 | 220)
Max. diameter of table opening 260 mm
Max. tool diameter under the table 250 mm
Max./min. tool diameter for profiling 250 / 80 mm
Max./min. tool diameter for tenoning 275 / 80 mm
Machine dimensions
Length (with CV360 – 1 200 mm) 1 360 mm
Length (with CV360 – 2 000 mm) 2 160 mm
Width 1 050 mm
Width with supporting frame 2 220 mm
Table height 900 mm
Max. height of machine 1 320 mm
Table size 1 000 x 520 mm
Suction dust hood diameter 120 / 80 mm
Gross weight 410 kg
Nett weight 405 kg
Alu sliding table CV360
Table size 360 x 1 200 (2 000) mm
Travel length 1 500 (2 300) mm
Dimensions of supporting frame 870 x 630 mm
Other parameters
Voltage / frequency 3x400V (3x230V) / 50(60)Hz
Line safeguarding 25 A
Noise level (without technology) dB(A)
Noise level (with technology) dB(A)
Acustic achievement dB(A)
Acustic achievement (with technology) dB(A)

Ekstra udstyr:

  • Aluminium sliding table  on steel bars CV 360T/ 2,0m
  • Table extension left + right
  • Cross-cutting frame complete with telescopic arm and fence with 2 flip over stops
  • Tennoning plate
  • Tenoning cover
  • CPS – Safety protection for round profiles
  • Outrigger roller
  • Electric spindle stroke
  • Spindle diameter – on request (D= 32;D=35;D=40;D=50 mm; D=5/4; D=1inch.)
  • Interchangeable spindle
  • Modification for interchangeable spindle (included spindle 30 mm )
  • Extra interchangeable spindle – on request (D=30; D= 32; D=35; D=40; D=50 mm; D=5/4 inch.)
  • Extra interchangeable spindle with chuck for router bits – on request (D = 30; D=32; D=35; D=40; D=50 mm; D=5/4 inch.)
  • Feeding devices
  • Three-phase motor 10,2 HP (7,5 kW, S6/40%), 400V, 50 Hz
