Rojek FSN 300A fræser med kipbar spindel – 5°+45°





Download brochure

For mere information

Video

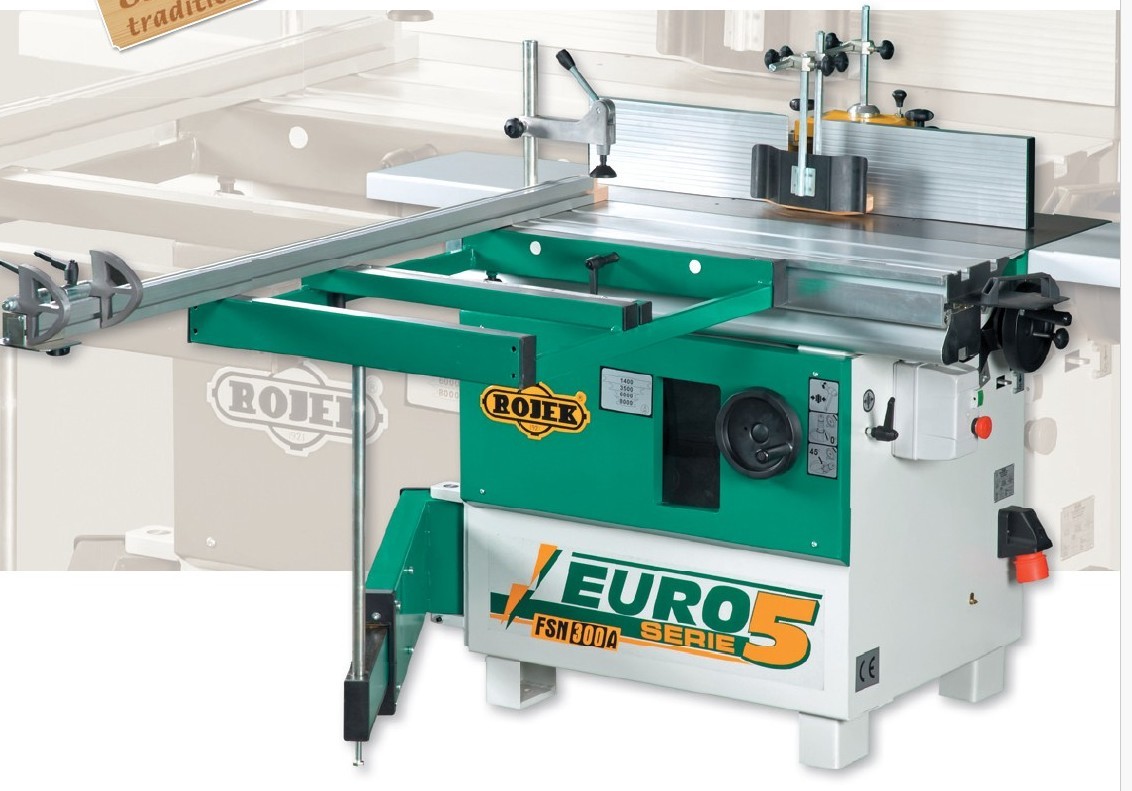

Rojek FSN 300A bordfræser med manuel kipbar spindel– 5°+45°

Alu rullebord 1200 x 360  eller 2000 x 360 mm



Tekniske specifiktioner:

Motor 5.0 hk

  • spindel ø 30 x 130 mm
  • 5 hastigheder 1400-3500-6000-8000 o/min.

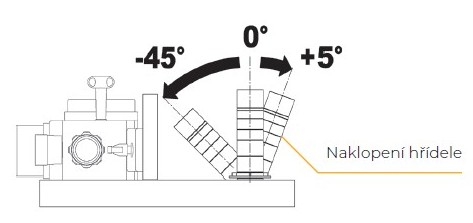

  • kipbar spindel –5 +45 grader
  • fræseboks med justerbar fræseland i begge sider
  • max. Værktøjsdiameter 200 mm
  • max. Værktøjsdiameter u bord 175 mm
  • max. Hul i bord 220 mm
  • rullebordsvandring 1370 mm (2170)
  • bordstørrelse 1000 x 476 mm
  • sugestuds ø100 mm
  • vægt 275 kg.
  • CE norm
  • støjniveu i.h.t. DIN 45635/1652 73,4 db (a)



Sidebord med kraftig teleskobarm.- Spindel til overfræseværktøj,- Tappeboks til vinduesværktøj

FSN 300A EURO 9 – Technical data
Spindle moulder
Motor power S6 40% 4,4 kW/3x400V (2,2 kW/1x230V)
Motor speeds 2 840/min.(3 410/min.[60Hz])
Spindle diameter Ø 30 mm (32 | 40 | 50 )
Spindle speeds 2 500; 3 500; 6 000; 8 000; 10 000/min.
Max. spindle stroke 140 mm
Spindle length 130 mm
Spindle tilting -5° ÷ +45°
Max. diameter of table opening Ø 220 mm
Max. tool diameter under the table Ø 175 mm
Max. tool diameter above the table Ø 200 mm

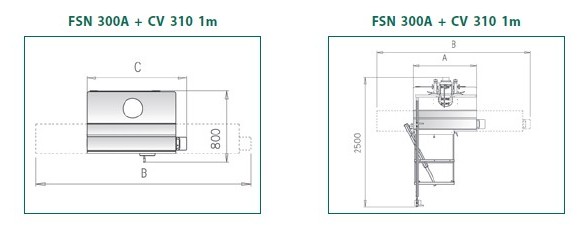

Machine dimensions
Length (with CV360 – 1 200 mm) 1 700 mm
Length (with CV360 – 2 000 mm) 2 300 mm
Width 800 mm
Width with support frame 1 980 mm
Table height 897 mm
Max. height of machine 1 300 mm
Table size 1 000 x 350 mm
Suction dust hood diameter 100 mm
Gross weight 275 kg
Nett weight 275 kg
Alu sliding table CV360
Table size 360 x 1 200 (2 000) mm
Travel length 1 370 (2 170) mm
Dimensions of supporting frame 870 x 630 mm
Other parameters
Voltage / frequency 3x400V (3x230V | 1x230V) / 50(60)Hz
Line safeguarding 16 A (25 A)
Noise level (without technology) 70,4 dB(A)
Noise level (with technology) 83,0 dB(A)
Acustic achievement 78,6 dB(A)
Acustic achievement (with technology) 88,5 dB(A)

Ekstra udstyr:

  • Aluminium sliding table  on steel bars CV 360T/ 2,0m
  • Support of sliding table
  • Cross-cutting frame complete with telescopic fence and 2 flip over stops
  • Right and left table extension
  • Modification for interchangeable spindle (included spindle 30 mm )
  • Extra interchangeable spindle – on request (D=30; D= 32; D=35; D=40; D=50 mm; D=5/4 inch.)
  • Extra interchangeable spindle with chuck for router bits – on request (D = 30; D=32; D=35; D=40; D=50 mm; D=5/4 inch.)
  • Single-phase motor 3 HP, 230 V, 50 Hz (2,2 kW) – or other voltage – or 60Hz
