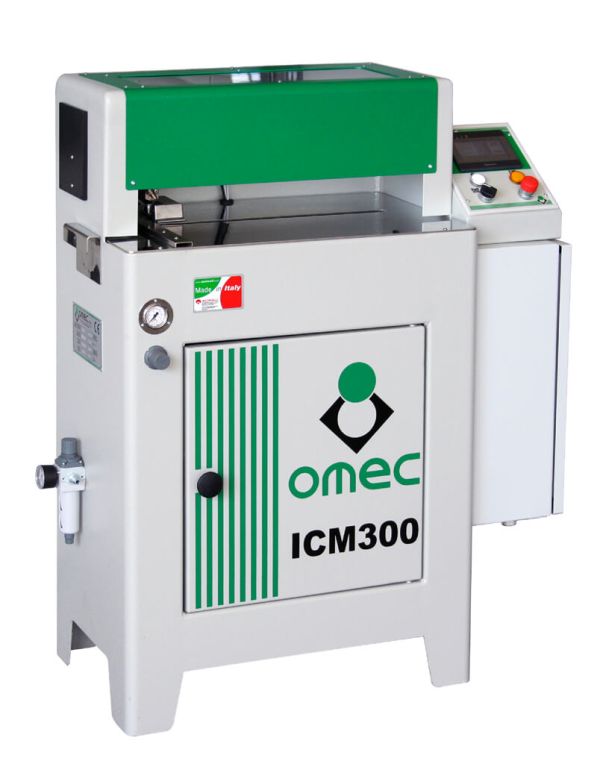

Omec ICM 300 limpåføringsmaskine.
TECHNICAL CHARACTERISTICS
On-board machine installed power |
Kw |
0,25 |
Working pressure |
MPascal |
0,7 |
Glue type: vinyl glue |
mPa.s |
8000 |
Glue tank’s capacity |
lt |
16 |
Machine weight |
kg |
94 |
Packed machine weight |
kg |
130 |
Overall dimensions(length x width x height) |
cm |
100x40x105 |
Packing dimensions |
cm |
110x70x135 |

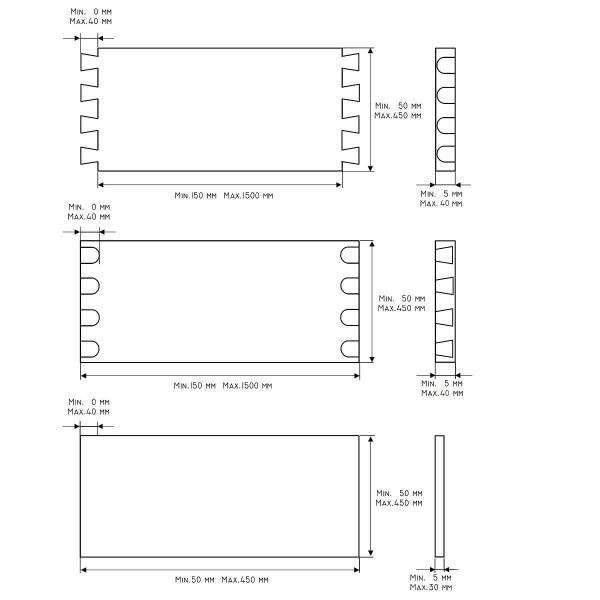

DIMENSIONAL LIMITS OF WORKPIECES
|
Min |
Max |
Length |
150mm |
1500mm |
Width |
50mm |
450mm |
Thickness |
5mm |
40mm |
Depth |
0mm |
40mm |

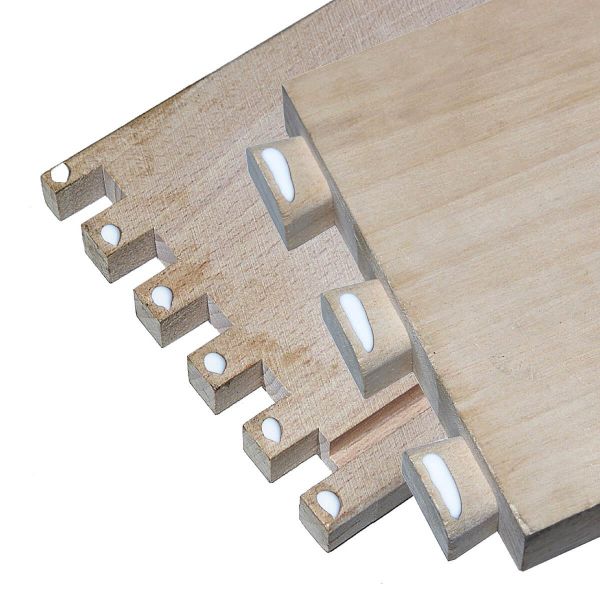

The OMEC ICM300 manual gluing machine was designed to glue different types of drawers featuring dovetails, parallel joints and lock pins. This machine can glue drawers having any type of joint pitch, with no need for customised parts or nozzles, and there is no need for adjustments when the width of drawers is modified. The machine also comes with a special system for adjusting glue quantity. Thanks to the special configuration of the spray nozzle, it is possible to clean it at the end of the operating cycle. Machine control is performed by an on-board control panel.
