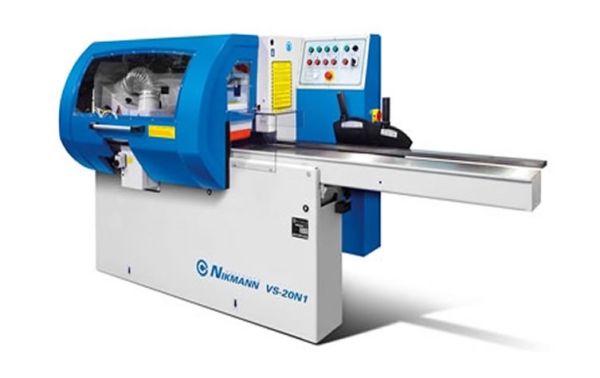

Nikmann VS20-N1 kehlemaskine 180/230 x 105 mm 4 spindler kr.99.800,00
Kan leveres i 2 udgaver:
Nikmann VS20-N1 kehlemaskine 180 x 105 mm med 4 spindler, priser fra kr.99.800,00 ekskl. moms ab.fabrik
Nikmann VS – 230 kehlemaskine 230 x 120 mm med 4 spindler
Design, Manufacture and Service of our Nikmann woodworking machines.
The Nikmann four-sided planer moulder is engineered for processing large timber with unmatched precision and quality. Designed to simplify your daily workflow, this advanced machine incorporates cutting-edge technology to deliver results like never before.
Built with a robust frame, premium components, and a rigid structure, it features touch control and linear guides that reflect true engineering excellence. Nikmann is committed to quality, integrating innovative systems—such as its high-performance drive system—to achieve exceptional surface finishes.
Whether you’re in industrial woodworking or large-scale carpentry, this machine is tailored to meet your demands, ensuring high productivity and outstanding accuracy in every pass.
Four sider planer Nikmann VS20-N1 is designed for companies requiring to process many panels per day even though they may be different from one to another.
Nikmann VS20-N1 has several solutions that guarantee always the best machining on any panel type
| STANDARD PERFORMANCE | VS 20N1 |
| Finished workpiece max. width, mm | 180 / 230 |
| Finished workpiece min. width, mm | 25 |
| Finished workpiece max. thickness, mm | 105 |
| Finished workpiece min. thickness, mm | 10 |
| Workpiece min. length, mm | |
| – single workpiece feeding | 350 |
| – serial feeding | 250 |
| Number of operating spindles | 4 |
| Spindle revolutions, min-1 | 6000 |
| Spindle diameters, mm | 40 |
| Cutting head diameters, mm | 120 |
| Horizontal spindles operating length, mm | 190 / 230 |
| Vertical spindles operating length, mm | 120 |
| Feeding speed, m/min | 6 ; 12 |
| Feeding rollers diameter, mm | 120 |
| Feeding table length, mm | 1700 |
| Table height, considered from the floor, mm | 920 |
| Table and fence adjustment range, mm | 10 |
| Spindles motor power, kW | 4.0 |
| Feeding motor power, kW | 0,8 / 1,1 |
| Total installed power, kW | 17,1 |
| Working voltage, V | 400 +6/-10% |
| Weight, kg | 950 |
