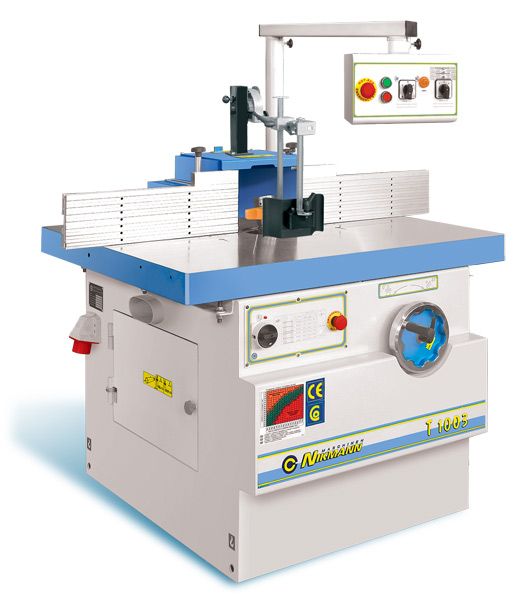

Nikmann T1003 fræser med kipbar spindel 45°
Nikmann T1003 fræser med kipbar spindel 45° bagud.
Fixed cast-iron working table with grinded surface. Spindle tilting to the back and changeable arbors with Morse cone MK 5. Spindle, mounted on precise bearings for maximal spindle speed 10000 min-1. Support (protector) for the tool for profiling with maximal diameter ø275 mm. Integral safety guides with total length 1100 mm and height 154 mm. Light indication for the spindle spe-ed. 6 spindle speeds /two-speeds motor/. Dust collection ports with diameter Ø 120 mm – under and over the working table. Electronic brake for electrodynamic stopping. Mounted device for spindle blocking while replacement the tool. Electric blocking the start of the machine while replacement the tool through an electric limit switch. Vertical and horizontal clamping device. Movable control panel over the working table /on a level with eye/.
| STANDART PERFORMANCE |
T 1003 |
| Working table dimensions, mm | 1100 x 900 |
| Working table height from the floor level, mm | 850 |
| Distance between the front part of the
working table and the spindle center, mm |
450 |
| Changeable arbor
– Morse cone – Diameter, mm – Usable length, mm |
MK5 Ø 50 160 |
| Diameters of the holes in the working table, mm | ø75, ø110, ø160, ø210, ø310, ø360 |
| Spindle tilting to the back | 0° / 45° |
| Spindle revolutions, min-1 | 3000/ 4000/ 5000/ 6000/ 8000/ 10000 |
| Max. tool diameter, mm:
– for profiling – for tenoning |
Ø 275 Ø 400 |
| Max. diameter/depth of the tool moving under the working table surface | Ø 350 / h=60 |
| Motor power, 3-phases, 2-speeds, 50 Hz, kW (HP) | 4.5 / 5.5 (6.0 / 7.5) |
| Integral safety guides | 2 х 550 |
| Dust collection port diameter, mm
– over the working table – under the working table |
Ø 120 Ø 120 |
| Overall dimensions L x W x H (without the movable control panel), mm | 110 0x 1000x 1120 |
| Weight, kg | 465 |
| OPTIONS | |

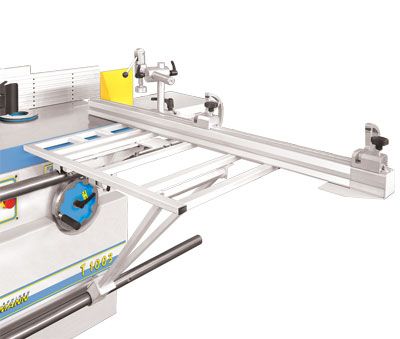

| Movable table /carriage/ with telescopic fence with two supports | |
| Motor power, kW (HP) | 7.5 (10.2) |

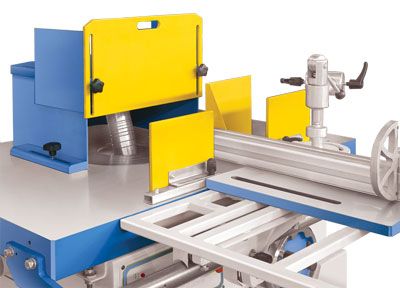

| Tenoning table and tenoning hood, mm | Ø 400 |
| Left / right spindle rotation | |

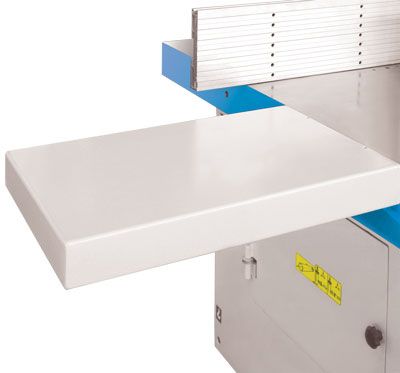

| Extension tables from the left and the right sides | |

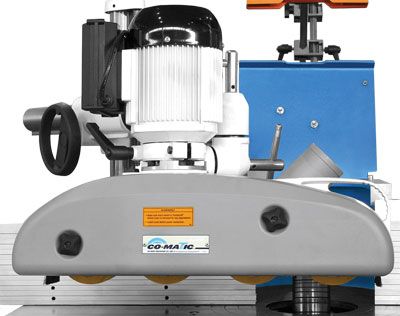

| Feeder | MX 38, MX 48 |
| Changeable arbor, МК5
Diameter / usable height, mm |
ø30 / 140, ø1 1/4″ / 140, ø32 / 140, ø35 / 140, ø40 / 160, ø50 / 160 |
