MACHINE FOR ROUNDING OF ANGLES AND EDGES
The machine desk performance. It is designed for profile milling corners of edges, on plates with the rectangular form. The detail will tighten motionlessly by means of the pneumatic cylinder. Automatic processing through the pneumatic mechanism by means of the pedal.
| STANDARD PERFORMANCE | KZM 7 |
| Thickness of the workpiece, mm | to 50 |
| Minimal dimensions of the working panel, mm | 85х200 (210х80) |
| Edge thickness, mm (depending on material) | 0.4 – 3.0 |
| Milling unit | |
| – power of the motor, kW | 0.8 |
| – RPM of the motor, min-1 | 10000 – 29000 |
| – tool, mm | ø16 / R2, tail ø8 |
| Pressure of the air, bar | 6.0 |
| Supplying voltage, Frequency | 220V, 50 Hz |
| Aspirating port diameter, mm | ø80 |
| Overall dimension L х B х H, mm | 710х570х 580 |
| Weight, kg | 50 |
| OPTIONS |

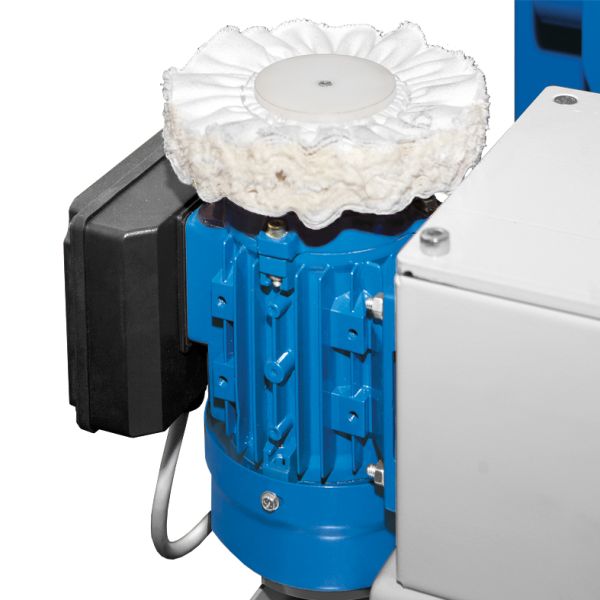

| Polishing unit |

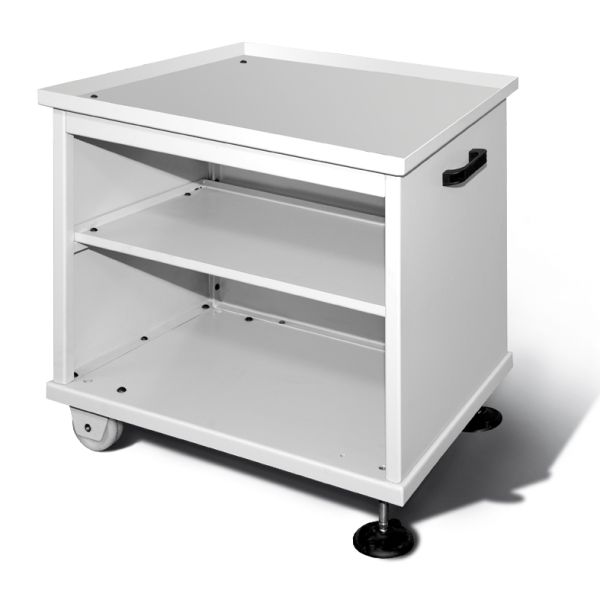

| Mobile rack (on wheels) |
| Milling tool ø18 / R3 – tail ø8 mm |
