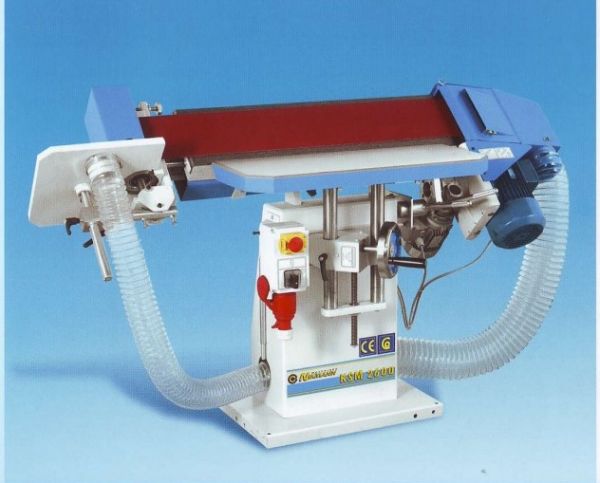

Nikmann KSM 3000, KSM 3000S kantpudser

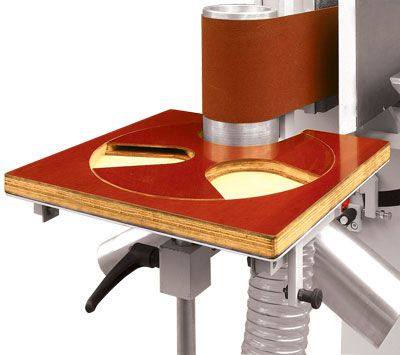

Strong machines body, with construction against torsion and vibrations- extremely stable. Sanding assembly tilting to 45°. Oscillation for the sanding assembly with separate gear motor. Height adjustable working table to use full width of belt. Device for veneer edge sanding with fine adjustment, contact shoe, relieving rollers and stops. Additional table, movable by height with aspiration – for radius sanding. Belt tension with tighten springs for automatic compensation of length tolerance.

STANDARD PERFORMANCE	KSM 3000	KSM 3000S

Working table dimensions, mm	960 x 350	960 x 350
Table height adjustment, mm	230	230
Length of the belt, mm	3000	3000
Belt width, mm	150	200
Sanding table (under the belt), mm	1050 x 200	1050 x 200
Belt speed, m/s	20	20
Oscillation movement, mm	20	20
Oscillation motor, kW (HP)	0.25 (0.34)	0.25 (0.34)
Revolutions, min^-1	2840	2840
Required area, mm	1900 x 900 x 1250	1900 x 900 x 1300
Motor power, kW (HP)	3.0 (4.0)	3.0 (4.0)
Weight, kg	400	450

OPTIONS

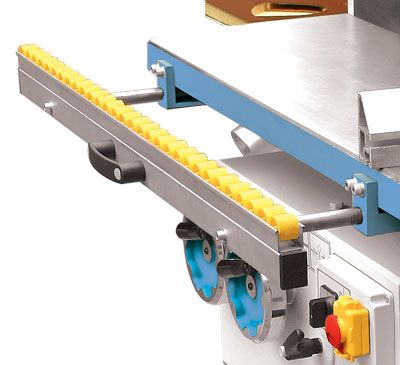

Extension of the table with rollers

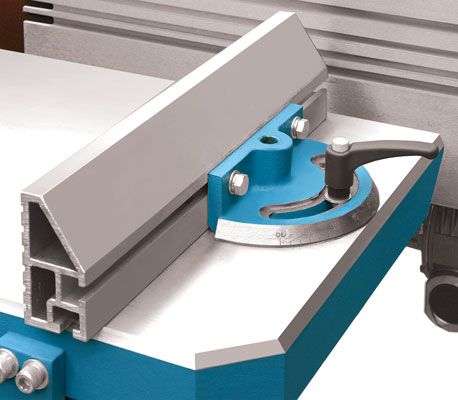

Miter fence

Support for feeder

Device “Rotating star with 3 feeding rolls” (only for KSM 3000)

Rubberized roller

Wheel set
