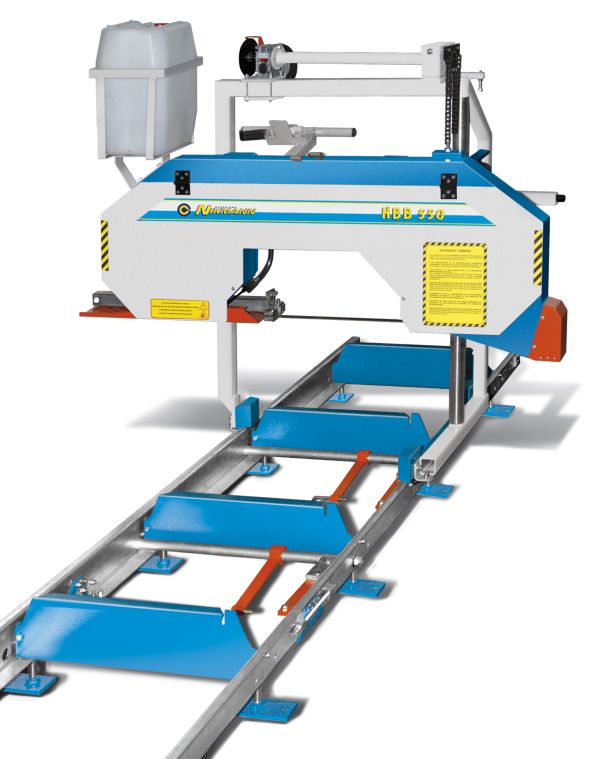

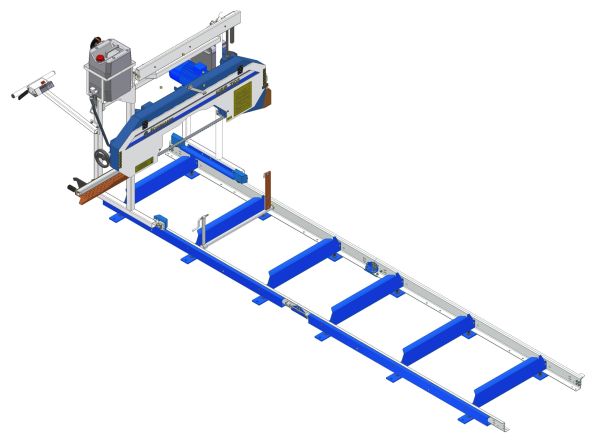

Nikmann HBB 550 / HBB 750 savværk

Log band saw is designed exclusively for cutting soft, hard, dry, raw or frozen timber or wooden prisms; their length complies with the machine design. The material must be placed and clamped on rail supports. The cutting unit must be moved manually.

Very easy machine operation. Cutting band guides of hard metal. The cutting length depends on the number of extension sections.

STANDARD PERFORMANCE	HBB 550

Max. log diameter, mm	550
Max. opening between blade guides, mm	530
Max. lifting of blade, mm	540
Min. blade height from support bean, mm	20
Max. depth of cut, mm	220
Max. log length (standard model), m	3.7
Min. log cut, m	0,9
Bandwheel motor power, kW	3,0
Bandwheel diameter, mm	ø400
Bandwheel width, mm	25
Sawblade dimension (mm), mm	3200х27-33х0,9-1.0l
Cutting width, mm	1.5 – 2.2
Saw blade speed, m/s	15
Overall width, mm	1750
Overall height , mm	1450 / 1660
Overall length (standard model), m	4.6
Weight (standard model), kg	355

OPTIONS

Bandwheel motor power, kW	4,0
Extension section, m	2.3
Weight (extension section), kg	82
Vertical feed motor power, kW	0.12
Log rotating lever

STANDARD PERFORMANCE	HBB 750

Max. log diameter, mm	750
Max. opening between blade guides, mm	730
Max. lifting of blade, mm	740
Min. blade height from support bean, mm	20
Max. depth of cut, mm	250
Max. log length (standard model), m	3.7
Min. log cut, m	0.9
Bandwheel motor power, kW	4.0
Bandwheel diameter, mm	ø400
Bandwheel width, mm	25
Sawblade dimension (mm), mm	3600х27 – 33 х0.9 – 1.0
Cutting width, mm	1.5 – 2.2
Saw blade speed, m/s	15
Overall width, mm	1830 / 2130
Overall height , mm	1900
Overall length (standard model), m	5.2
Weight (standard model), kg	450

OPTIONS

Bandwheel motor power, kW	5,5
Extension section, m	2.3
Weight (extension section), kg	95
Vertical feed motor power, kW	0.25
Log rotating lever
