Nikmann CL 1201M/A kopidrejebænk
Nikmann CL 1201M kopidrejebænk manuel
Nikmann CL 1201A kopidrejebænk motorseret

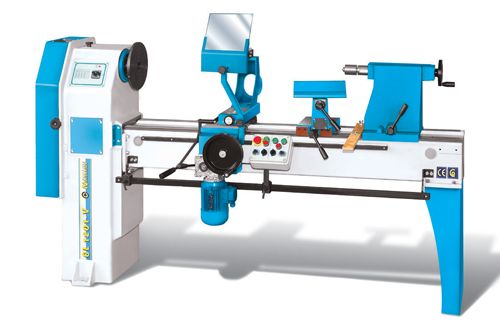

A body of grey pig iron and welded directing elements. Rear saddle with lead center. Longitudinal and perpendicular support and a device for template copying. The machine has the following accessories : tool rest 10” (254 mm), live centre for tail stock, head stock drive centre, face plate 10” (254 mm), knockout rod, stand with sockets for 4 chisels, tools.
| STANDARD PERFORMANCE |
CL 1201M |
CL 1201A |
| Maximal turning length, mm | 1270 | 1270 |
| Center height, mm | 1150 | 1150 |
| Centers height under guides, mm | 305 | 305 |
| Maximal turning diameter, mm | ||
| – over guides | Ø610 | Ø610 |
| – over tool rest 10” (254 mm) | Ø430 | Ø430 |
| – over carriage | Ø420 | Ø420 |
| – on copying | Ø420 | Ø420 |
| Coping device, mm | ||
| – maximal depth | 65 | 65 |
| – maximal lengt | 1270 | 1270 |
| Pattern, mm | ||
| – diameter, max. | Ø150 | Ø150 |
| – length, max. | 1270 | 1270 |
| Front spindle end, mm | ||
| – outer thread | M45x4.5 | M45x4.5 |
| – taper | Ø19/MK3 | Ø19/MK3 |
| Tailstock, mm | ||
| – pinole motion | 140 | 140 |
| – pinole cone | MK3 | MK3 |
| Dust collection port diameter, mm | Ø125/ Ø75 | Ø125/ Ø75 |
| Spindle speed, min-1 | 375 / 1000 / 2350 / 3250 | 375 / 1000 / 2350 / 3250 |
| Main motor power, kW (HP) | 1.1 (1.5) | 1.1 (1.5) |
| Mechanical feeding | ||
| – speed, m/min | – | 0 – 3 |
| – motor power, kW (HP) | – | 0.37 (0.5) |
| Overall dimension, mm | ||
| Length | 2200 | 2200 |
| Height | 1250 | 1250 |
| Width | 1000 | 1000 |
| Required space, mm | 3000/2000 | 3000/2000 |
| Net weight, kg | 490 | 530 |
| STANDARD EQUIPMENT |
| 1.Tool rest 10”(254mm) |
| 2.Live centre for tail stock |
| 3.Head stock drive centre |
| 4.Face plate 10”(254mm) |
| 5.Knockout rod |
| 6.Stand with sockets for 4 chisels |
| 7.Copying knife 16×16 – 2 pcs |
| 8.Tools |
| OPTIONS |
| 1. Electronic regulator for speed changing |
| 2.Traveling rest, with shavings collector, with knife turns to round, with drive center Ø 20 mm, with running center Ø 20 mm, with 2 knives |
| 3. Spiral cutting attachment with screw pitch 3”(76), 4”(102), 6”(152), 8”(203), 12”(305), 16”(406), 24”(609mm). |
| 4. Motionless lunette for round details. |
| 5. Motionless lunette for square details.
6. Copying device. |
