Nikmann CL 1201 kopidrejebænk
Nikmann CL 1201 kopidrejebænk

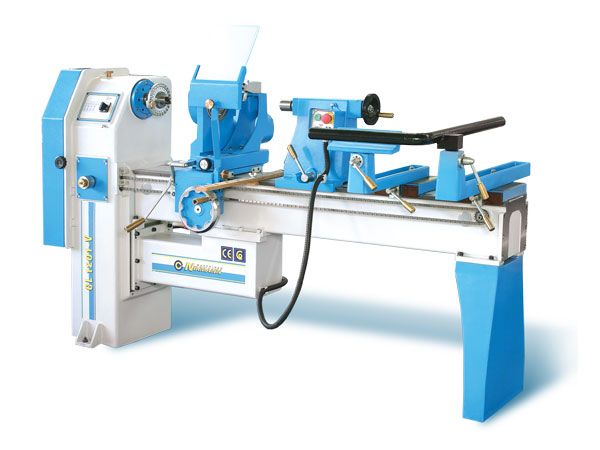

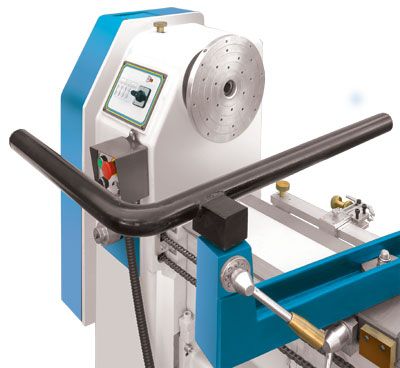

A body of grey pig iron and welded directing elements connected via a mobile pivot. Rear saddle with lead center. Longitudinal and perpendicular support and a device for template copying. The machine has the following accessories : tool rest 10” (254 mm), tool rest with arch part for working of disks details 48” (1200 mm), live centre for tail stock, head stock drive centre, face plate 10” (254 mm), knockout rod, stand with sockets for 4 chisels, tools.
| STANDARD PERFORMANCE |
CL 1201 |

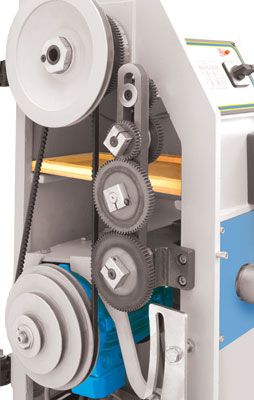

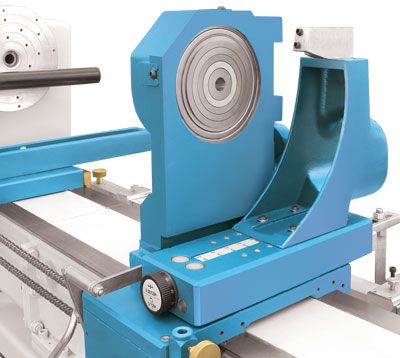

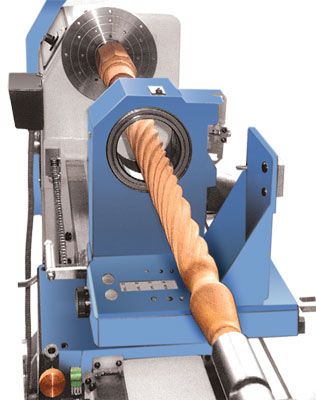

| Maximal turning length, mm | 1270 |
| – with extension 20” (508 mm) | 1778 |
| – with extension 50 ”(1270 mm) | 2540 |
| – with removed bridge | 300 |
| Center height, mm | 1150 |
| Centers height under guides, mm | 305 |
| Maximal turning diameter, mm | |
| – over guides | Ø610 |
| – over tool rest 10” (254 mm) | Ø430 |
| – over carriage | Ø420 |
| – on copying | Ø420 |
| – with removed bridge | Ø1200 |
| Coping device, mm | |
| – maximal depth | 65 |
| – maximal lengt | 1270 |
| – with extension 20” (508 mm) | 1778 |
| – with extension 50” (1270 mm) | 2540 |
| Pattern, mm | |
| – diameter, max. | Ø150 |
| – length, max. | 1270 |
| – with extension 20” (508 mm) | 1778 |
| – with extension 50” (1270 mm) | 2540 |
| Front spindle end, mm | |
| – outer thread | M45x4.5 |
| – taper | Ø19/MK3 |
| Tailstock, mm | |
| – pinole motion | 140 |
| – pinole cone | MK3 |
| Dust collection port diameter, mm | Ø125/ Ø75 |
| Spindle speed, min-1 | 375 / 1000 / 2350 / 3250 |
| Main motor power, kW (HP) | 1.1 (1.5) |
| Overall dimension, mm | |
| Length | 2200 |
| – with extension 20” (508 mm) | 2710 |
| – with extension 50” (1270 mm) | 3470 |
| Height | 1250 |
| Width | 1000 |
| Required space, mm | 3000/2000 |
| – with extension 20” (508 mm) | 3510/2000 |
| – with extension 50” (1270 mm) | 4270/2000 |
| Net weight, kg | 560 |
| – with extension 20” (508 mm) | 610 |
| – with extension 50” (1270 mm) | 700 |
| OPTIONS |
| 1. Electronic regulator for speed changing |
| 2. Copying device and copying knives-2pcs |
| 3.Traveling rest, with shavings collector, with knife turns to round, with drive center Ø 20 mm, with running center Ø 20 mm, with 2 knives |
| 4. Milling appliance with spiral cutting attachment |
| 5 .Extension 20” (508 mm) |
| 6. Extension 50” (1270 mm) |
| 7. Motionless lunette for rectangular workpiece |
| 8. Motionless lunette for round workpiece |
