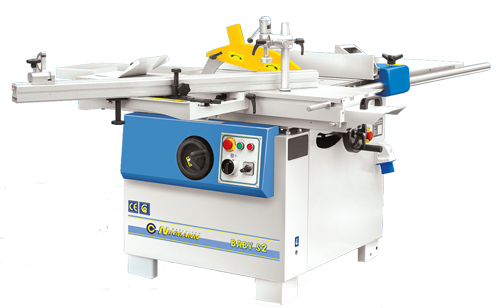

Nikmann Baby S2 formatrundsav
Nikmann Baby S2 formatrundsav

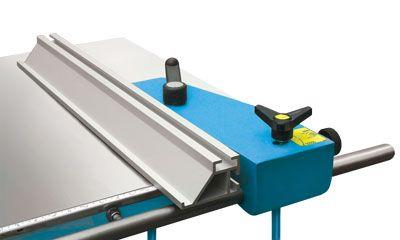

Aluminum sliding table with hardened steel high-precision guides. Telescopic miter fence 900 mm with one turnable support. Rip fence with micrometric adjustment. Table extension for width of cutting 950 mm Saw blade tilt to 45° with scale report.
| STANDARD PERFORMANCE | BABY S2 |
| Saw blade diameter – max /min | Ø 315/ Ø 250 |
| Spindle diameter, mm | Ø 30 |
| Working table dimensions, mm | 550 x 800 |
| Sliding table dimensions, mm | 1150 x 350 |
| Maximal length of cut with scoring unit, mm | 770 |
| Maximal width of cut with the rip fence, mm | 950 |
| Maximal height of cut 90°/45°, mm | |
| – With disk Ø 315 mm | 102 / 72 |
| – With disk Ø 250 mm | 70 / 49 |
| Motor power, kW (HP) | 3.0 (4.0) |
| Spindle speed, min-1 | 4000 |
| Dust collection port diameter, mm | Ø 120 |
| Weight, kg | 325 |
| Required area, m | 4.5 x4.0 |
| OPTIONS | |
| Scoring unit with: | |
| Saw blade diameter, mm | Ø 120 |
| Spindle diameter, mm | Ø 20 |
| Spindle speed, min-1 | 8000 |
| Motor power, kW (HP) | 0.75 (1.0) |
| Motor power main circular, kW (HP) | 4.0 (5.5) |
| Sliding table, L ,mm | 1600 |
| Maximal width of cutting with scoring unit, mm | 1270 |
| Extension for miter fence, mm | 950, 1219 |
| Maximal width of cut with the rip fence, mm | 1270,1500 |
| Miter fence, mm | 1219 |
| Dust extraction pipe with hose, mm | 950, 1270, 1500 |
| Hanging protector, mm | 1270, 1500 |
| Support frame with telescopic support | |
| Short crosscut fence | |
| Clamping device | |
| Wheel set |
