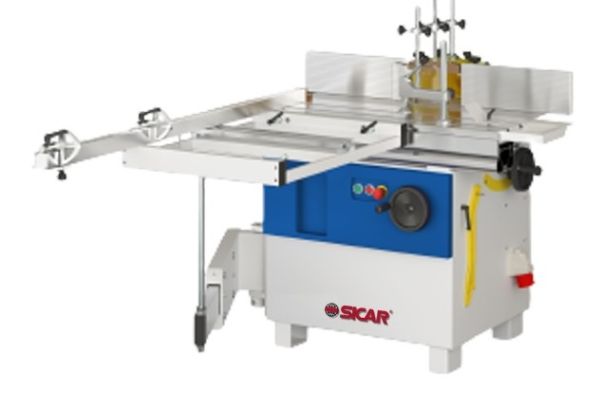

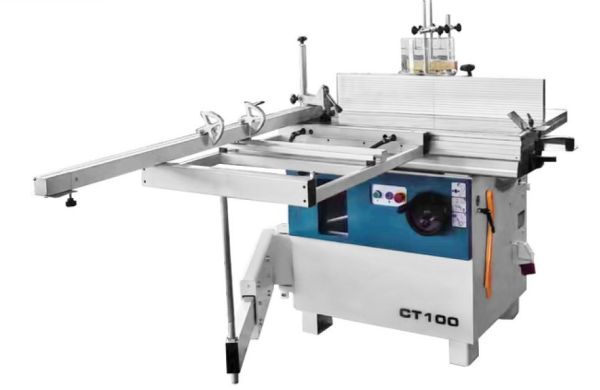

Ma.Co.2L CT100 fræser med kipbar spindel -5°+45°
SICAR CT100 fræser med kipbar spindel -5°+45°
Technical Specifications
| Technical specifications | ||
| Engine | V/KW | 400/4 |
| Rotation speed | rpm | 2500/3500/6000/8000/10000 |

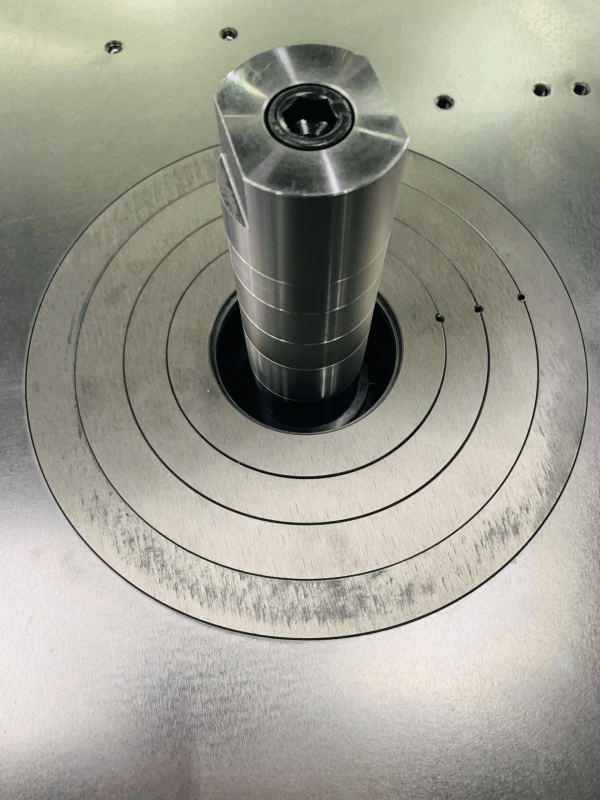

| Shaft diameter | mm | 30 intercambiabile |
| Spindle Stroke | mm | 140 |
| Table height | mm | 890 |
| Table dimensions | mm | 710×640 |
| Cart dimensions | mm | 1000×350 |

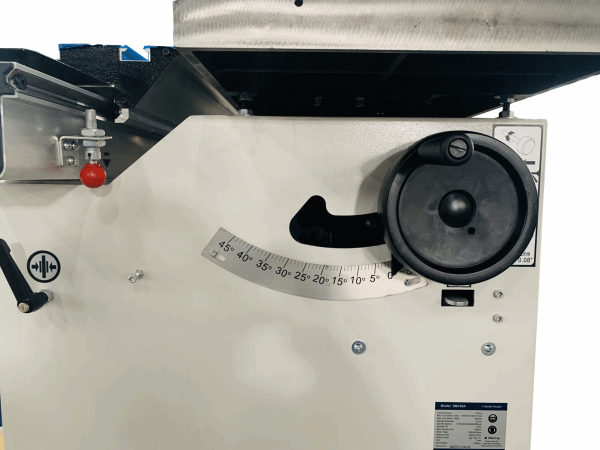

| Router tilt | mm | -5° a +45° |
| Shaft length | mm | 130 |

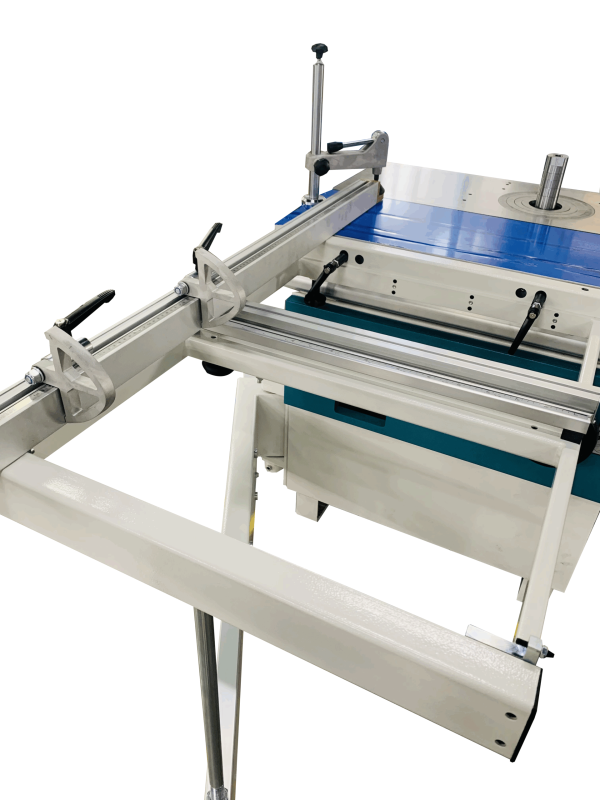

| Carriage Size | mm | 1000 |
| Maximum Tool Size Retractable Under Workbench | mm | 175 |
| Max. Table Opening | mm | 220 |
| Inlet hole diameter | mm | 100 |
| Maximum machine height | mm | 1300 |
| Maximum machine height | mm | 1300 |
| Overall dimensions | cm | 1150x900x1085 |
| Packaging dimensions | mm | 1740x230x125 |
| Weight | kgm | 270 |
