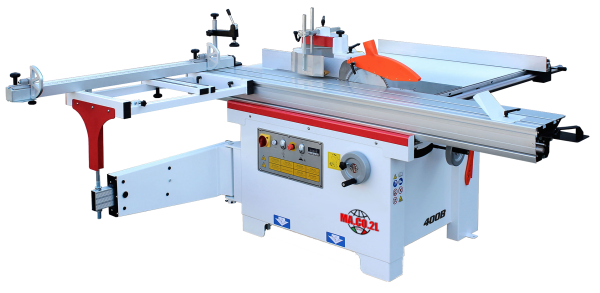

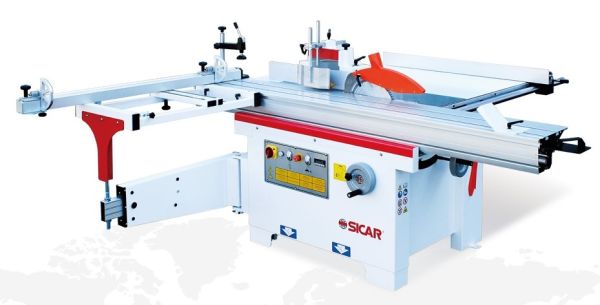

SICAR 400B fræser-rundsav
SICAR 400B fræser-rundsav med kipbar rundsav
Leveres i 3 udgaver med 2200 – 2600 eller 2800 mm rullebord
Technical Specifications
| Circular saw | ||
| Work plan | mm | 326×1112 |
| Rotation speed | g/mm | 4500 |
| Blade | Ǿ | 300 |
| Blade hole | Ǿ | 30 |
| Maximum cutting height at 90° | mm | 100 |
| Max clearance between blade and guide | mm | 1150 |
| Tilted blade | 0° | 45° |
| Maximum cutting height at 45° | mm | 75 |
| Engraver | Ǿ | 90 |
| Engraver hole | Ǿ | 22 |
| Rotation speed | g/min | 7000 |
| Vertical milling machine | ||
| Work plan | mm | 326×1112 |
| Rotation speed | g/min | 2000/3100/4400/ 7000 |
| Standard shaft diameter | mm | 30 |
| Shaft length | mm | 105 |
| Vertical stroke | mm | 115 |
| Max tool diameter | mm | 180 |
| Max tenon depth | mm | 65 |
| Standard equipment | ||
| Counterframe, flag support | mm | 800×600 |
| Three-phase motor power | KW/HP | 4,0/5,5 |
| Potenza motore monofase | KW/HP | 2.2/3,0 |
| Accessories on demand | ||
| Single-phase motor | HP/KW | 3,0/2,2 |
| Upgraded three-phase motor | HP/KW | 4,0-3,0 |
| Upgraded three-phase motor | HP/KW | 5,5-4,0 |
| Dust extraction system | HP/KW | 0,5/0,36 |
| Carro | mm | 2600/2800 |
| Weight | kg | 345 |
