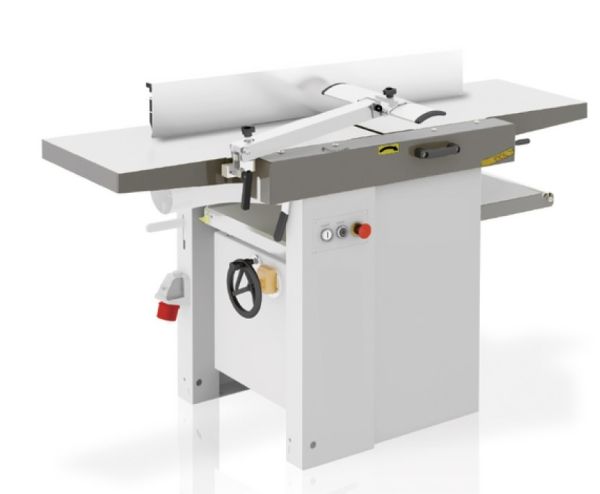

Ma.Co.2L 310C- 410C kombineret afretter/tykkelseshøvl
Ma.Co.2L 310C kombineret afretter tykkelseshøvl
Technical Specifications
| Technical specifications | ||
| Voltage / Power | V/Kw | 220/380 2.2 |
| Table width | mm | 310 |
| Maximum planing depth | mm | 3 |
| Table dimensions | mm | 305×200 |
| Minimum length of the piece | mm | 160 |
| Maximum height of the thickness | mm | 4-225 |
| Feed speed | m/min | 7 |
| Diametro albero pialla | mm | 70 |
| Planer shaft speed | rpm | 5300 |
| Table length | mm | 1409 |
| Net/gross weight | kg | 231/288 |
| Packaging dimensions | mm | 1480x585x1120 |
| Exit table | mm | 312 |
| Inlet hole diameter | mm | 100 |

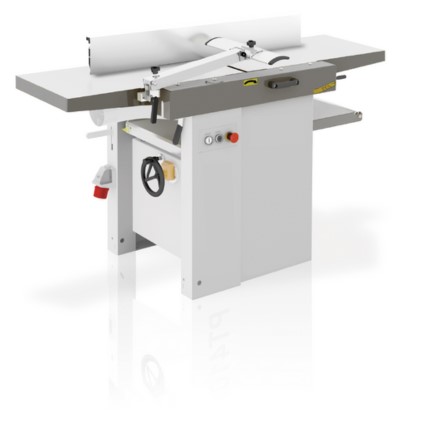

Ma.Co.2L 410C afretter tykkelseshøvl
Technical Specifications
| Technical specifications | ||
| Voltage / Power | V/Kw | 380/4 |
| Table width | mm | 410 |
| Maximum planing depth | mm | 4 |
| Table dimensions | mm | 650×407 |
| Minimum length of the piece | mm | 160 |
| Maximum height of the thickness | mm | 4-225 |
| Feed speed | m/min | 7 |
| Diametro albero pialla | mm | 70 / 2 coltelli |
| Planer shaft speed | rpm | 5500 |
| Table length | mm | 1659 |
| Net/gross weight | kg | 294/352 |
| Packaging dimensions | mm | 1710x740x1117 |
| Exit table | mm | 348 |
| Inlet hole diameter | mm | 120 |
Ekstra udstyr:
Spiralkutter
Kørehjul
For 410C motorized vertical movement of the thickness plane with digital indicator and variable feed
