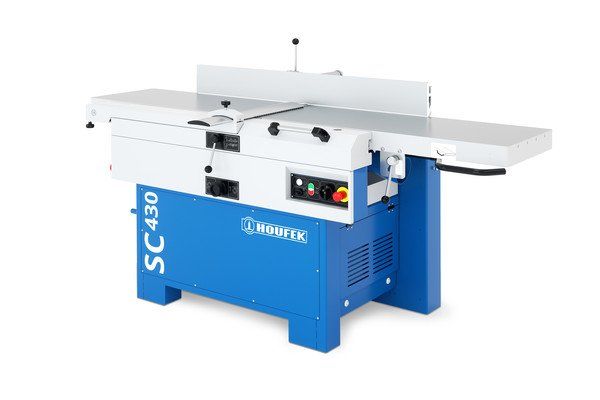

Houfek SC 430 – 530 kombineret afretter/tykkelseshøvl
Houfek SC 430 – 530 kombineret afretter/tykkelseshøvl
Standard udstyr.
- total lengthof work tables of surface planer SC 430 – 2150 mm
- total length of work tables of surface planer SC 530 – 2350 mm
- currently uncovered planer table
- size of ruler 1300×180 mm
- angle inclination of inclinable ruler 0°- 45°
- length of work table of thickenesser – 1000 mm

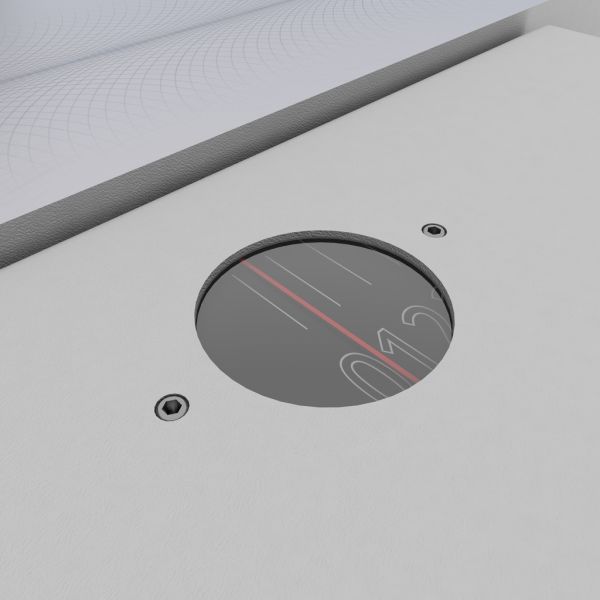

- manual table lifting of thickenesser with height indicator
- 4 point table suspension
- input divided pressure segments
- input grooved feeding roller
- output feeding roller
- min – max. thickness of workpiece 3 – 250 mm for thickenesser
- 4 knife cutter roller Ø 120 mm

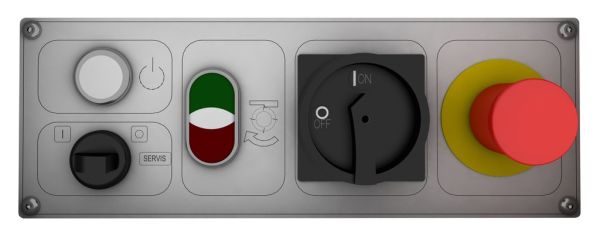

- automatic switch star/delta
- feeding speed 4 – 8 m/min
feeding motor 2 speed 0,58 / 0,75 kW 1400/2800 RPM - electromagnetic brake
- CE electric and safety standard
Optional equipment
- motor 7,5HP (5,5kW) for SC 430
- motor 10HP (7,5kW) for SC 530

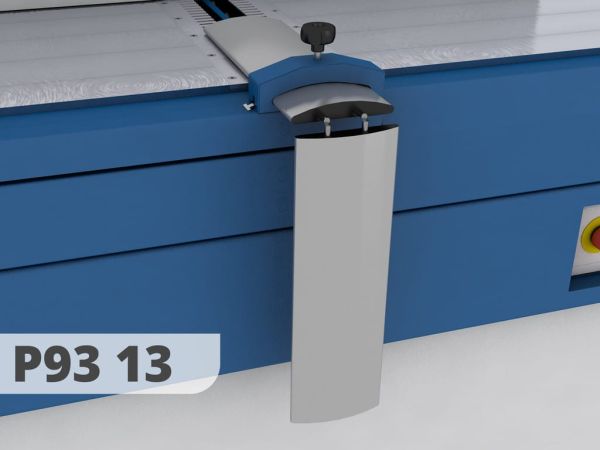

- tiltable cover of cutter head

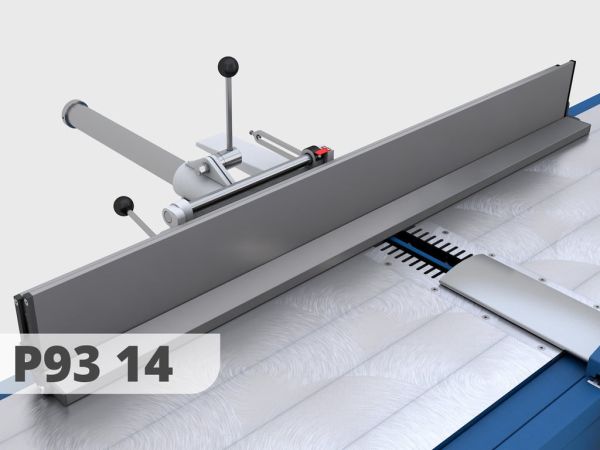

- overturn auxiliary ruler

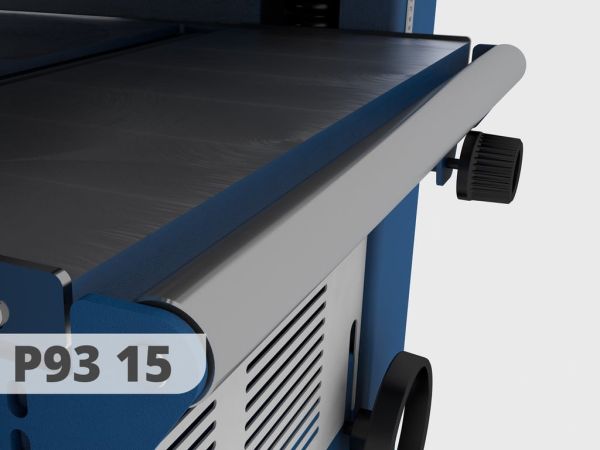

- fron and rear extensions rolleres for thickenesser
- motorized table lift for thickenesser

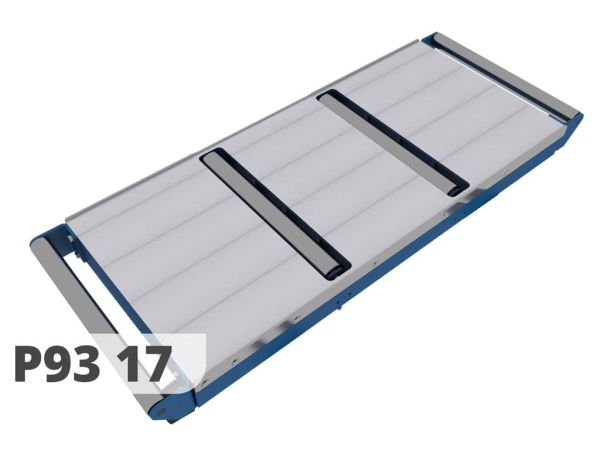

- 2 height adjustable rollers in work table
- mechanical measuring of table position for thickenesser
- electronic measuring of table position with digital display

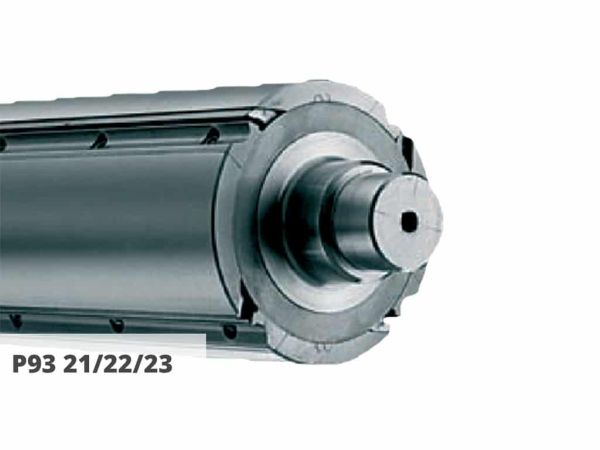

- cutter block Tersa monoblock 430 / 530
- indicator for setting of knifes
- set of knifes for standard 4 – knifes planning roller 430 / 530
- extra set of knives Tersa – 4 knives HSS plus for 430 / 530 HR 13%Cr
- grooved table

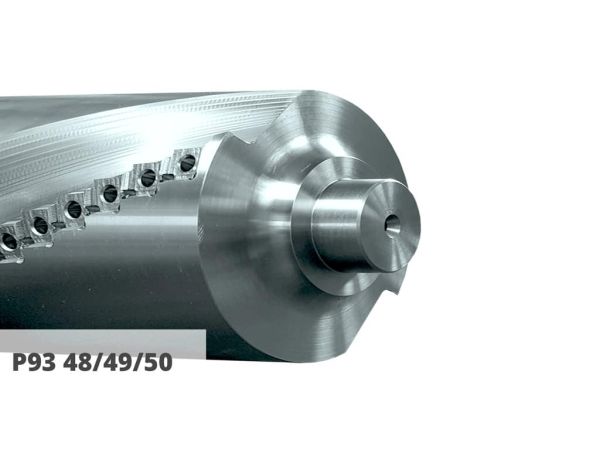

- Spiralkutter (fordele lavt energiforbrug og lavt støjneveu)
| SC | 430 | 530 | ||
|---|---|---|---|---|
| Length of cutter roller | mm | 430 | 530 | |
| Diameter of cutter roller | mm | 120 | 120 | |
| Speed of cutter roller | rpm | 5000 | 5000 | |
| Motor power | kW | 4 | 5,5 | |
| Total length of tables for planer | mm | 2150 | 2350 | |
| Legth of table for thickenesser | mm | 1000 | 1000 | |
| Height of workpiece for thickenesser | mm | 3 – 250 | 3 – 250 | |
| Max. removal of workpiece | mm | 5 | 5 | |
| Speed of feeding for thickenesser | m/min | 4 / 8 | 4 / 8 | |
| Dimension of ruler | mm | 1300 x 180 | 1300 x 180 | |
| Weight | mm | 790 | 850 |
Parameters are approximate depend on the type and configuration of the machine.
