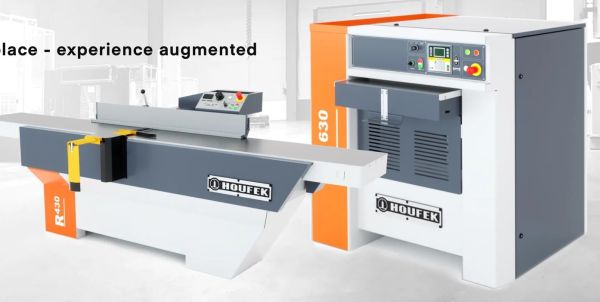

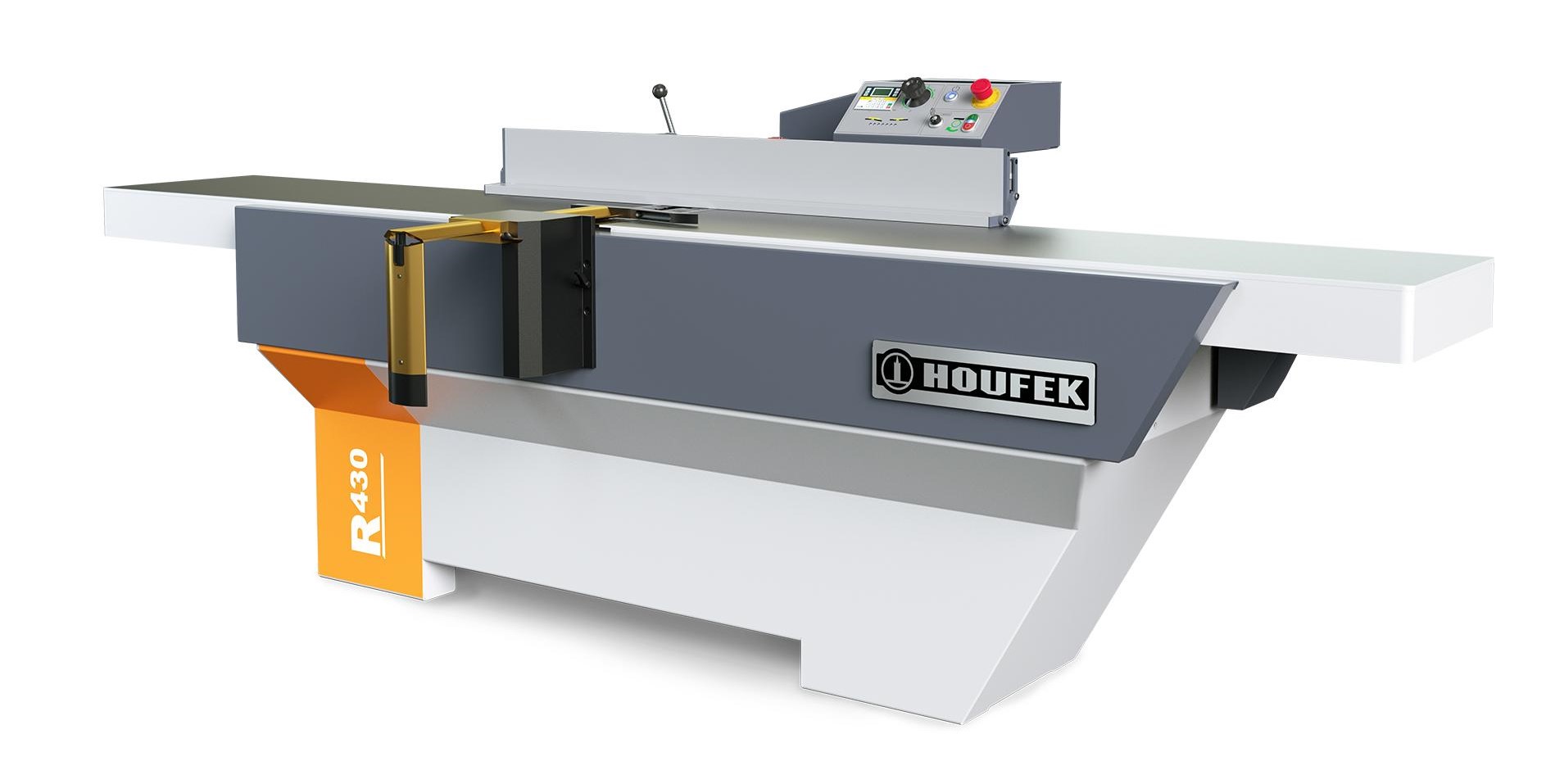

Houfek R- 430 – 530 – 630 afretter
Houfek R- 430 – 530 – 630 afretter
Standard equipment
- Work table length 3050 mm
- Size of fence 1500×180 mm
- Tiltable fence 0°-45°

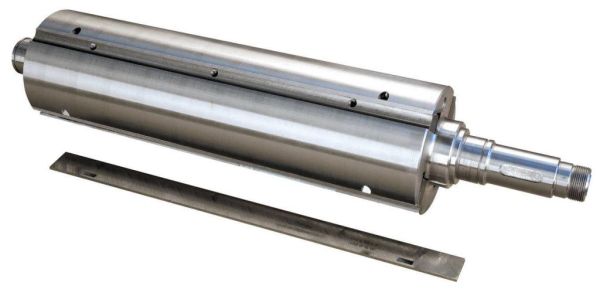

- Cutterhead D=120 mm, 4 knives
- Automatic star/delta switch

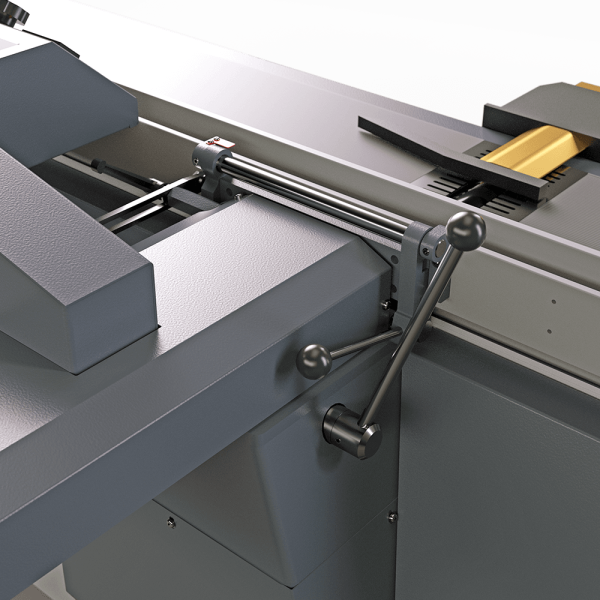

- Automatic table height adjustment
- Electronic measuring of cut depth
- Upper control panel

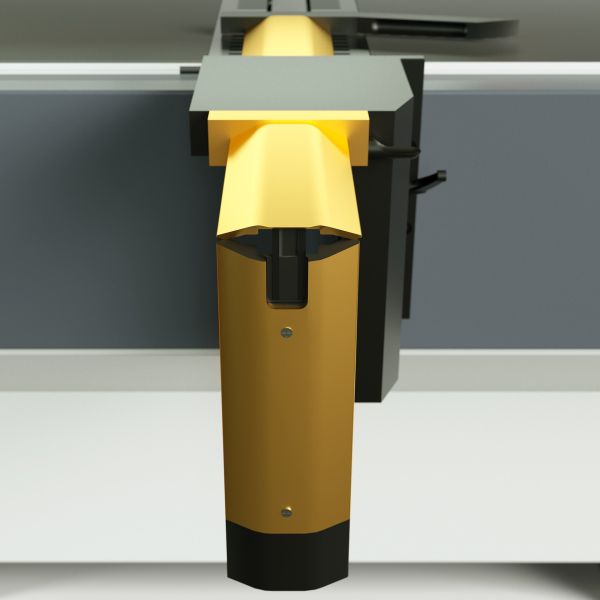

- SUVAMATIC foldable cutterhead guard
- Electromagnetic brake
- Exhaust outlet D=150 mm
- Knife setting device with indicator
- CE certification
Optional equipment

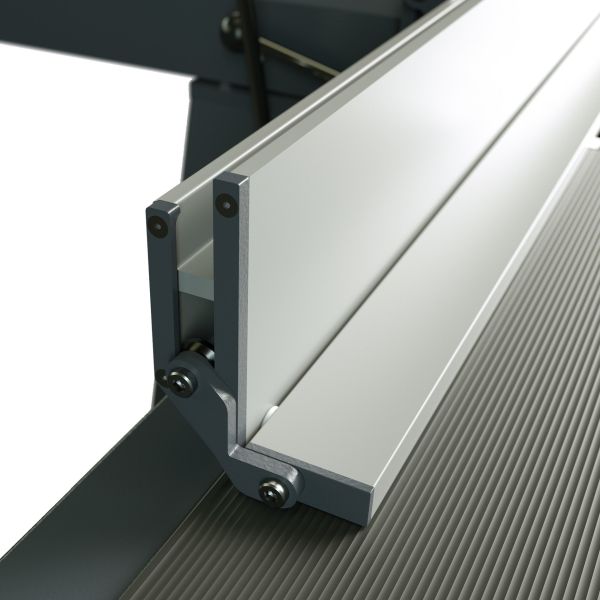

- Auxiliary fence for processing narrow workpieces

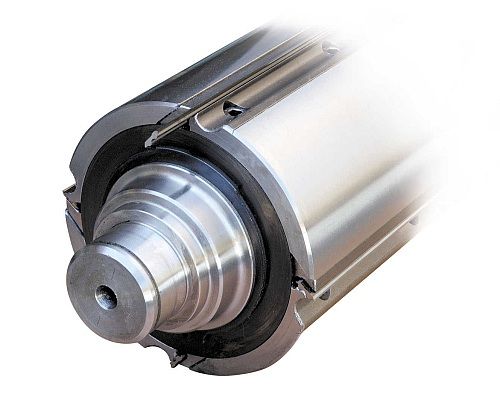

- Tersa kutter hoved 430, 530 or 630

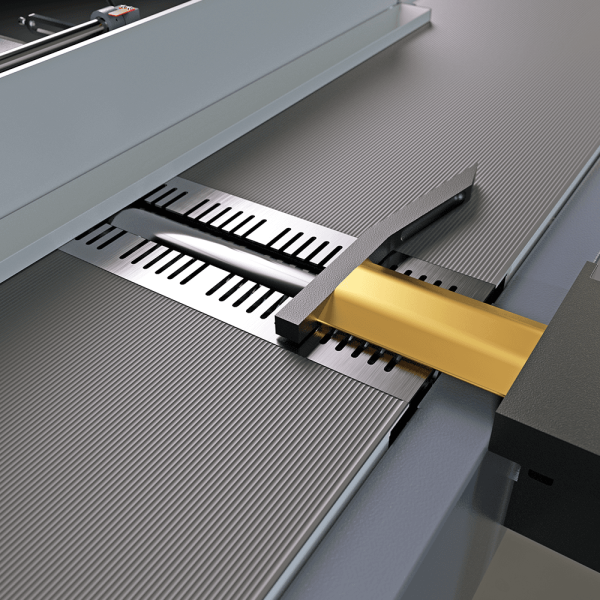

- Grooved table

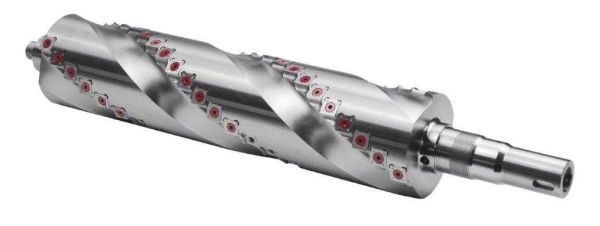

- Spiral kutterhoved
| R | 430 | 530 | 630 | |
|---|---|---|---|---|
| Length of work table | mm | 3050 | 3050 | 3050 |
| Width of work table | mm | 450 | 550 | 650 |
| Max. working width | mm | 430 | 530 | 630 |
| Diameter of cutterblock | mm | 120 | 120 | 120 |
| Number of cutters | ks | 4 | 4 | 4 |
| Speed of cutterblock | ot./min | 4700 | 4700 | 4700 |
| Max. removal | mm | 5 | 5 | 5 |
| Motor power | kW | 5,5 | 5,5 | 5,5 |
| Speed of motor | rpm | 2880 | 2880 | 2880 |
| Exhausting diameter | mm | 150 | 150 | 150 |
| Recomended min. power of exhausting | m3/hr | 1800 | 2000 | 2500 |
| Speed of exhausted air | m/s | 22 | 22 | 22 |
| Dimension of machine | mm | 3050/1370/1200 | 3050/1470/1200 | 3050/1570/1200 |
| Weight | kg | 530 | 570 | 620 |
Parameters are approximate depend on the type and configuration of the machine.
