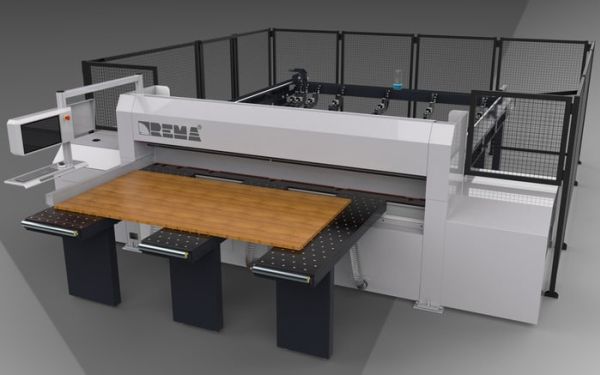

Rema Fox 3200 pladeopdelingsanlæg

ELECTRICIAN

• The main drive motor
  7,5 kW, opcja: 11kW
  Supply voltage
  częstotliwość f=50Hz, 3x400V w układzie TN-S

THE LENGTH OF SAWING

• Sawing length 3200mm
  Pneumatic pressure beam
  Beam clamping force pneumatically adjusted
  Cutting direction towards the angle fence (straight edge)

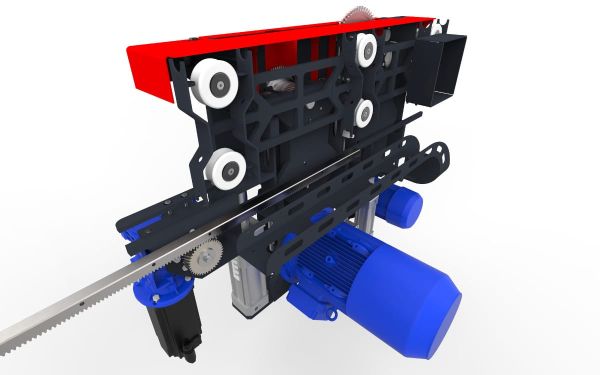

  SAW CARRIAGE

• Main shield fi 400
  Saw blade projection max 100 mm (max. wysokość cięcia 90 mm)
  Undercut saw aggregate 1,1 kW
  The scoring wheel
  fi 200mm, dla funkcji postforming fi 300mm
  Cutting at a right angle

TABLE WITH MITER FENCE AND SERVING TABLES

• Feeding tables with “airbag”
  Feeding tables with adjustable airbags
  Miter fence (optional) on the fixed table on the left side

MATERIAL PUSHER AND PLATE GRIPPERS

• Material advance beam zakres przesuwu 3200 mm
  Number of material grippers 7
  Gripper opening height 100 mm
  Beam speed 25 m/min
  The clamping force of the gripper locking system
  nastawialna

GENERAL INFORMATION

• Extraction connection 1x fi 125 mm, 3 x fi100 mm, 1 x fi80 mm
  Weight 3500kg

SAW CONTROL

• Program for optimizing the cutting of boards (the smallest waste) (option)
  Sending the designed forms to the machine via an internet cable (optional)
  Labeller (information on the label: order number, name, dimensions) (option)
  Remote support / machine diagnostics (option)
