Nikmann CL 1200M/A kopidrejebænk
Nikmann CL 1200M kopidrejebænk manuel
Nikmann CL 1200A kopidrejebænk motoriseret

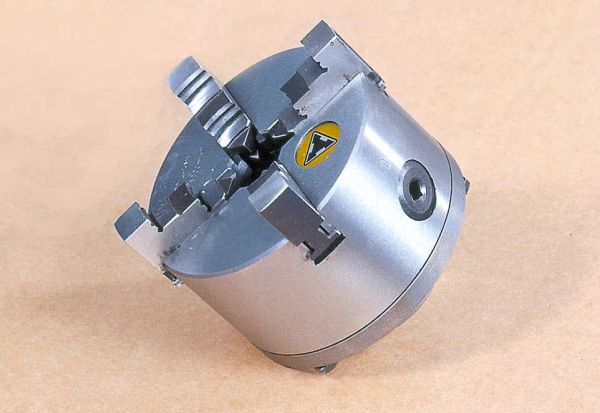

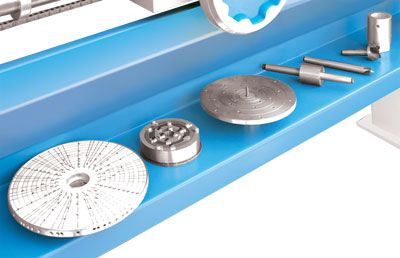

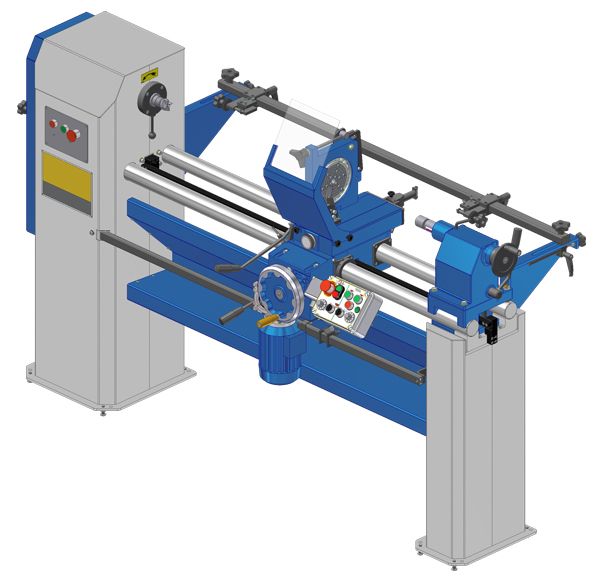

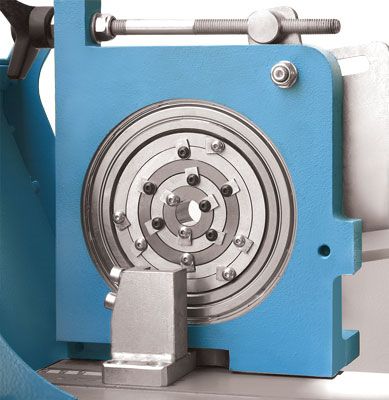

The body is made of welded steel sheets and chrome plated directing devices. A bead with and lead center. Longitudinal and perpendicular support and a device for template copying. The machine has the following accessories: traveling rest, steady rest, chuck ø 16, head stock drive centre, running center ø 20, running center ø 40, leading cogwheel center ø 20, leading cogwheel center ø 40, contrary taper ø 40, omni directional knife ø 200, copying knife 16×16, manual support, protective screen, secondary level, lever for knock- out, milling- dividing attachment.
| STANDARD PERFORMANCE |
CL 1200M |
CL 1200A |
| Maximal turning length | 1200 | 1200 |
| Center height | 1100 | 1100 |
| Centers height under guides | 215 | 215 |
| Maximal turning diameter | ||
| – over guides | Ø450 | Ø450 |
| – over carriage | Ø215 | Ø215 |
| – on copying | Ø215 | Ø215 |
| Coping device | ||
| – maximal depth | 60 | 60 |
| – maximal lengt | 1200 | 1200 |
| Pattern | ||
| – diameter, max. | Ø150 | Ø150 |
| – length, max. | 1200 | 1200 |
| Front spindle end | ||
| – outer thread | M33x3.5 | M33x3.5 |
| – taper | Ø14.9 / MK2 | Ø14.9 / MK2 |
| Tailstock | ||
| – pinole motion | 140 | 140 |
| – pinole cone | MK2 | MK2 |
| Spindle speed | 500 / 1000 / 2000 / 2800 | 500 / 1000 / 2000 / 2800 |
| Main motor power | 1.1 (1.5) | 1.1 (1.5) |
| Mechanical feeding | ||
| – speed, m/min | – | 0 – 3 |
| – motor power, kW (HP) | – | 0.37 (0.5) |
| Overall dimension | ||
| Length | 2105 | 2105 |
| Height | 1225 | 1225 |
| Width | 1000 | 1000 |
| Required space | 2500 / 1800 | 2500 / 1800 |
| Net weight | 395 | 395 |
| OPTIONS |
| Traveling rest, with shavings collector |
|
|
||||||||||||||||||||||||||||||||||||||||||
|
|
||||||||||||||||||||||||||||||||||||||||||
