CMC Finerpresse

Link til CMC

Kontakt for mere information her

Leveres med eller uden varme i planerne

Over eller underbevægelse af planerne

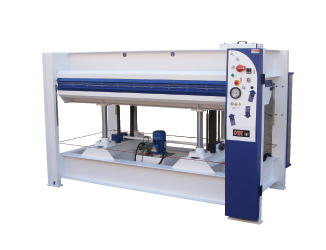

Varmepresse typer: PC – PCE/I – PCE/S



Presse med opvarmede planer

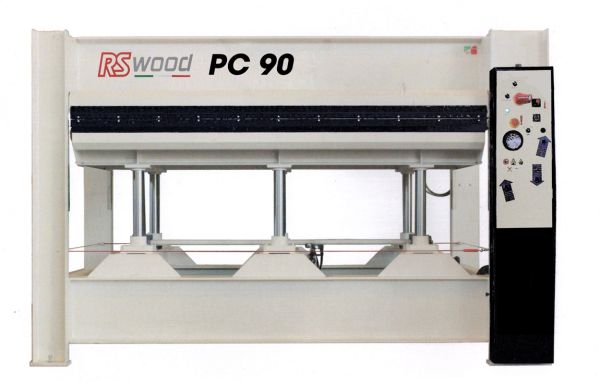

Technical data: Varmepresse

PC 70 PC 90 PC 105 PC 120 PC 160
– Dimensions 3000 x 1300 3000 x 1300 3000 x 1300 3000 x 1300 3000 x 1300
– Pistons nr. 6 – ø 70 nr. 6 – ø 70 nr. 6 – ø 85 nr. 6 – ø 85 nr. 8 – ø 85
– Kg/cm² 1,5 2 2,7 3 4
– Stroke mm 400 mm 400 mm 400 mm 400 mm 400
– Kcal 35.000 35.000 35.000 35.000 35.000
– kW 18 18 18 18 18
– Pump LT 21 LT 38 LT 38 LT 38 LT 58
– HP 2 3 3 3 3
– BAR 350 350 260 350 350

Available models:

Press with water/wood boiler.

Coil assembled plates with aluminium covering.

weight

kg 3300

weight

kg 3500

weight

kg 3700

weight

kg 4000

weight

kg 4500

Press with oil boiler.

Coil assembled plates with aluminium covering.

weight

kg 3300

weight

kg 3500

weight

kg 3700

weight

kg 4000

weight

kg 4500

Press with water/wood boiler.

Milled assembled steel plates with aluminium covering.

weight

kg 4400

weight

kg 4500

weight

kg 4900

weight

kg 5100

weight

kg 5500

Press with oil boiler.

Milled assembled steel plates with aluminium covering.

weight

kg 4400

weight

kg 4500

weight

kg 4900

weight

kg 5100

weight

kg 5500

Press with electric plates. (without boiler) weight

kg 2750

weight

kg 3050

weight

kg 3100

weight

kg 3150

weight

kg 3300

CE equipment:

  • Pump, boiler, expansion tank, installation and pipes
  • Automatic pressure recovery
  • Automatic opening by timer
  • Emergency cable
  • CE Standard

Optional:

PL LOGIC CONTROL WITH DIGITAL DISPLAY
EXTRA-STROKE FROM 400 TO 650 mm
NR.1 INTERMEDIARY PLATE
NR.1 INTERMEDIARY PLATE

(for version with milled plates)

NR.1 INTERMEDIARY PLATE

(for version with electric plates)

NR.2 INTERMEDIARY PLATES OPENING 400 mm

(DOUBLE BOILER INCLUDED)

NR.2 INTERMEDIARY PLATES OPENING 400 mm

(DOUBLE BOILER INCLUDED)

(for version with milled plates)

NR.2 INTERMEDIARY PLATES OPENING 650 mm

(DOUBLE BOILER INCLUDED)

NR.2 INTERMEDIARY PLATES OPENING 650 mm

(DOUBLE BOILER INCLUDED)

(for version with milled plates)



Koldpresse typer: PF – PFE/I – PFE/S – PFE/S3/30/3

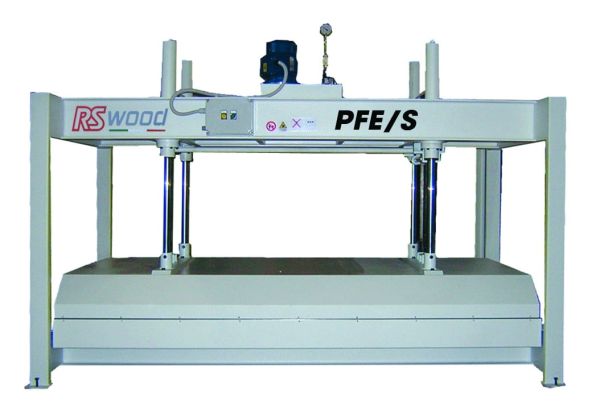

Press with movable superior plate divided in 3 identical parts

PFE/S 25/2 PFE/S 25/4 PFE/S 30/3 PFE/S 30/6
– Dimensions 2500 x 1300 2500 x 1300 3000 x 1300 3000 x 1300
– Pistons nr. 2 – ø 65 nr. 4 – ø 65 nr. 3 – ø 65 nr. 6 – ø 65
– Pressure Ton 10 Ton 20 Ton 15 Ton 30
– Stroke mm 500 mm 500 mm 500 mm 500
– Weight kg 1000 kg 1100 kg 1250 kg1390



Technical data kold presse

Technical data:

PF 40 PF 70 PF 60 PF 90 PF 120 PF 70S PF 100
Dimensions 2500 x 1300 2500 x 1300 3000 x 1300 3000 x 1300 3000 x 1300 3500 x 1300 4500 x 1300
Pistons nr. 4 – ø 70 nr. 6 – ø 70 nr. 6 – ø 70 nr. 6 – ø 70 nr. 6 – ø 85 nr. 6 – ø 70 nr. 8 – ø 70
Pressure Ton 40 Ton 70 Ton 60 Ton 90 Ton 120 Ton 70 Ton 100
Stroke mm 400 mm 400 mm 400 mm 400 mm 400 mm 400 mm 400
Peso kg 3000 kg 3200 kg 3300 kg 3500 kg 3700 kg 4500 kg 5200

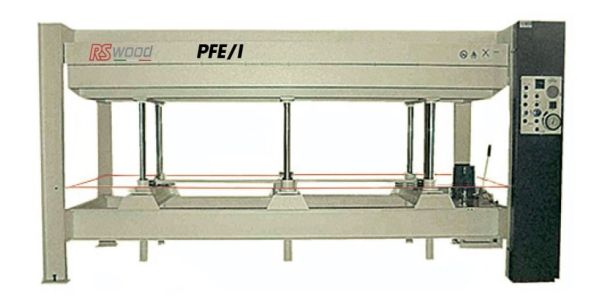

Tekniske data Kold presse PFE/I

Technical data:

PFE/I 25/4 PFE/I 30/6
– Dimensions 2500 x 1300 3000 x 1300
– Pistons nr. 4 – ø 55 nr. 6 – ø 55
– Pressure Ton 20 Ton 30
– Stroke mm 500 mm 500
– Weight kg 1000 kg 1390



CE equipment:

  • Manual opening of the plate by lever
  • Manometer situated on control board
  • Pressure tightness tap
  • CE Standard
  • Press with plates covered with galvanized iron sheet



Optional:

EXTRA-STROKE 650 mm
PRESSURE RECOVERY
DEMOUNTABLE PRESS
ELECTRIC OPENING
