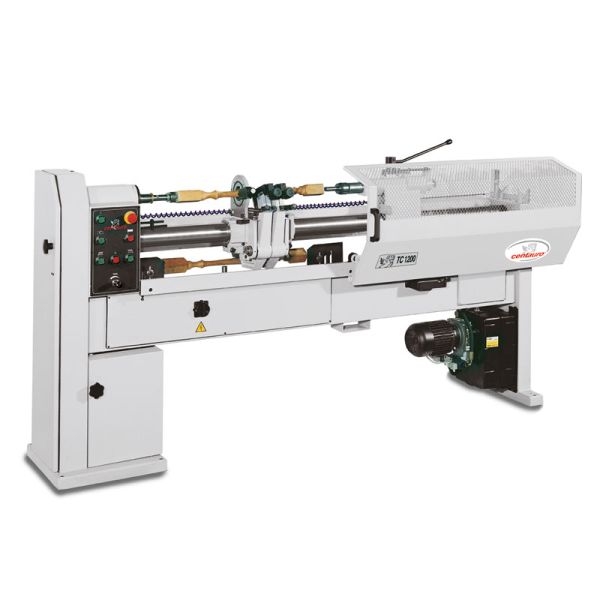

Centauro TC 1200 drejebænk

Centauro TC 1200 drejebænk

TECHNICAL DATA
Max. distance between centres mm 1200
Height of centres over bed mm 120
Max. copying diameter mm 150 (106)
Max. diameter permitted by traveling steady mm 90 (65)
Connection for driving and tailstock centre CM 3
Saddle feed speed mt/min 0 ÷5
Saddle return speed mt/min 5
Spindle motor kW 2,9 (HP 4)
Spindle speed R.P.M. 900 – 1500 – 2200 – 3000
Motor power of hydraulic unit kW 0,75 (HP 1)
Installed power Kw 3,75
Operating pressure bar 25 ÷ 30
Overall dimensions: Length x Height x Width mm 2400 x 650 x 1540
Netto Gewicht Kg. 400
Sound pressure level at operator position db (A) 71
