ASTRA SE 300/ SE400

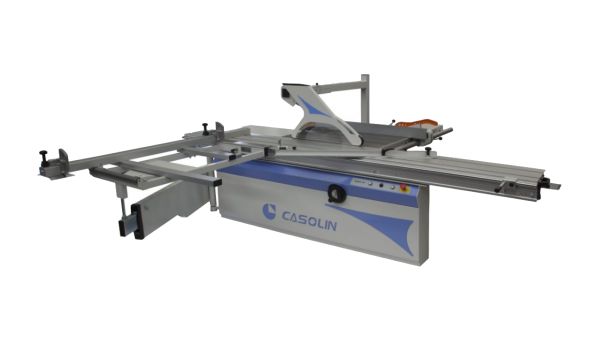

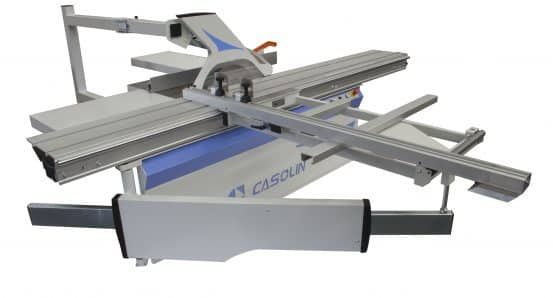

Circular saw Mod. Astra SE 400/300 for woodworking. Tilting blade group 0-45°.
Manual movements of saw blade (tilting and lifting).

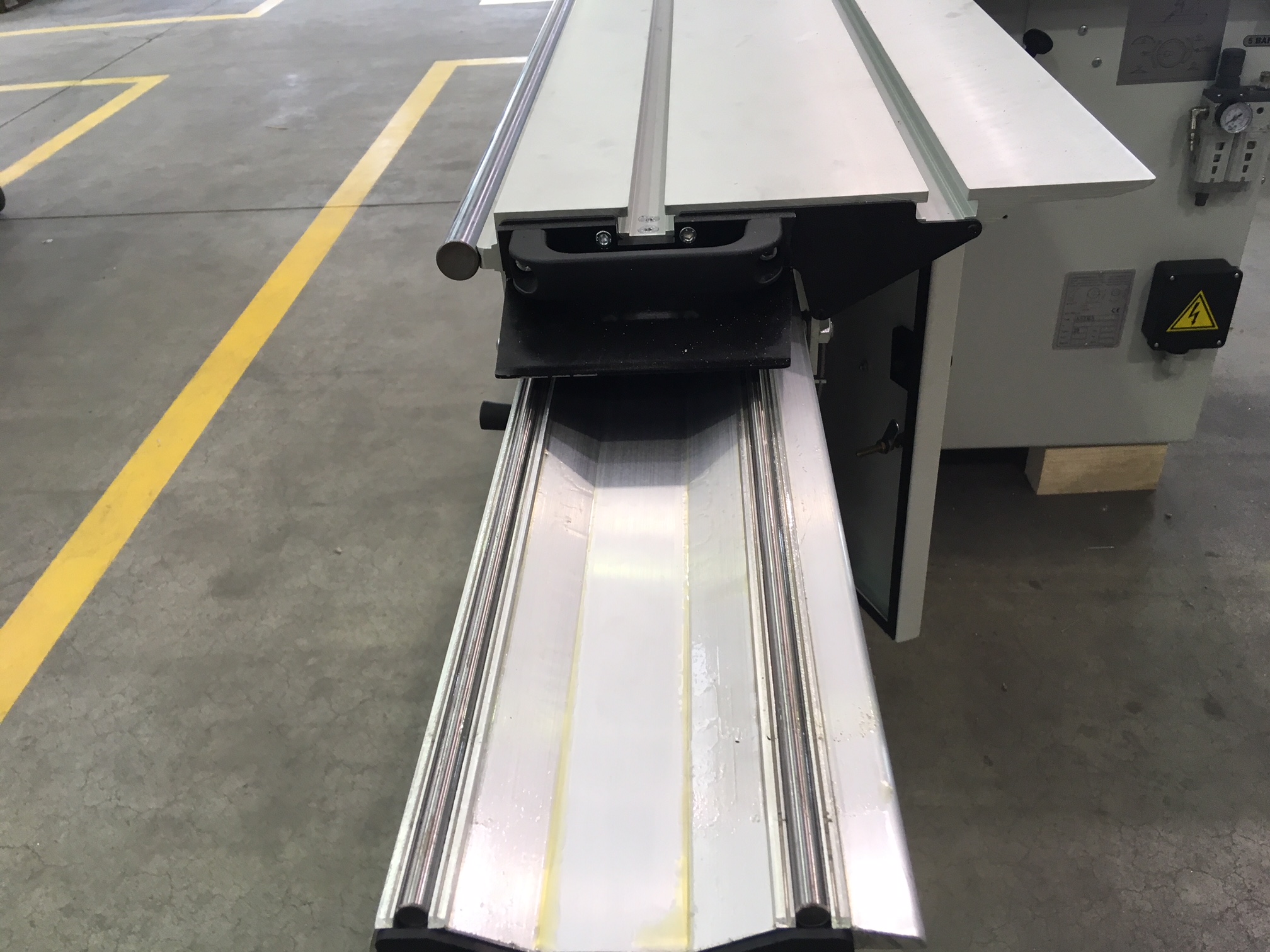

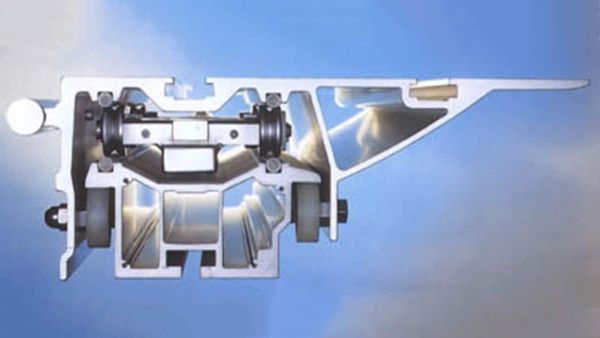

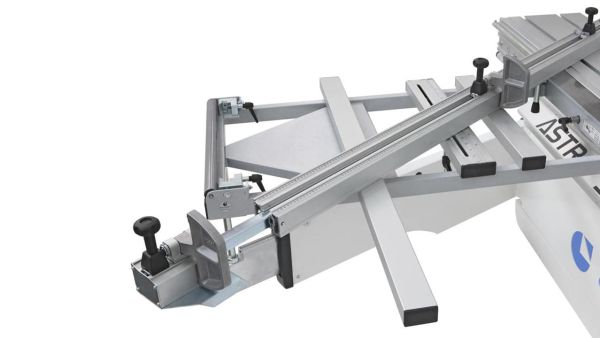

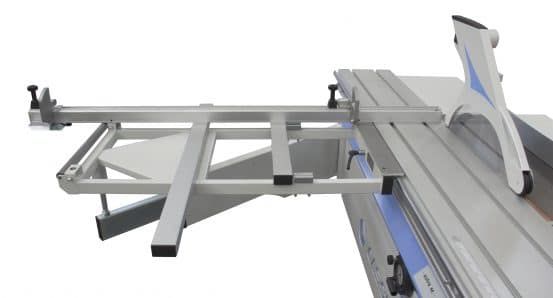

Carriage with rollers , anodized aluminum , width 360 mm.
Main advantages of the sliding table for Astra SE:

  • Excellent slidability
  • Maintanance free, sliding guides no longer required frequent cleaning
  • Wide anodised top surface.
  • Practical control to lock the carriage in the cutting position and to load large panels.

Machine ALL MADE IN ITALY





Specifications

  • Carriage length: 1900-2350-2600-3200-3800 mm.
  • Carriage width 360 mm.
  • Main blade diam. 300 – 400 mm.
  • Main shaft diam. 30 mm.
  • N.1 fixed speed: 4000 r/min. / (3 speeds on request)
  • Tilting 0-45°
  • Height of cut 133 mm. with blade diam.400 mm.
  • Height of cut 94 mm with saw blade diam. 400 mm at 45°
  • Height of cut 95 mm. with blade diam. 300 mm.
  • Height of cut 67 mm with saw blade diam. 300 mm at 45°
  • Standard motor main saw Kw 4 ( Hp 5,5 )
  • Optional Kw 5,5-7,5
  • Possibility to use scoring blade eben with main blade fitted.
  • Scoring group ( Optional)
  • Scoring 8000 r/min.
  • Scoring blade diam.120 mm.
  • Scoring shaft diam.20 mm.
  • NET WEIGHT 900 Kg.
