Casolin F45 EVO fræser med kipbar spindel – 45°+45°

.

F45 EVO +-45°

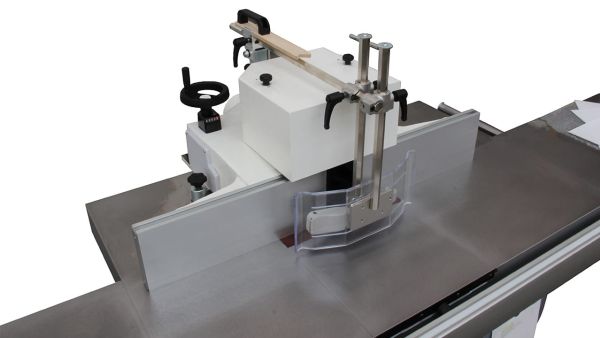

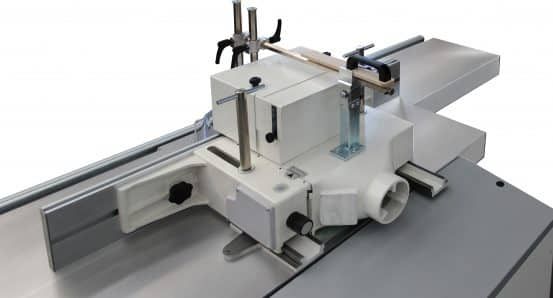

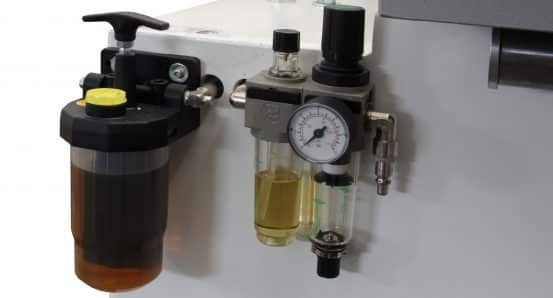

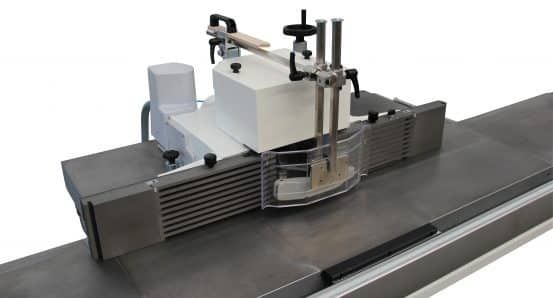

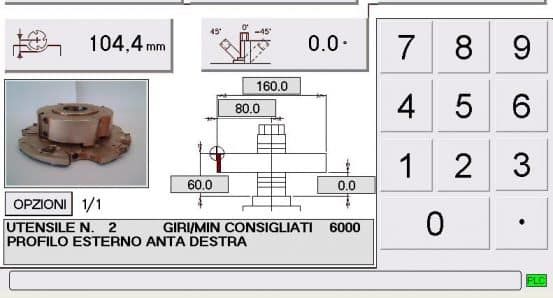

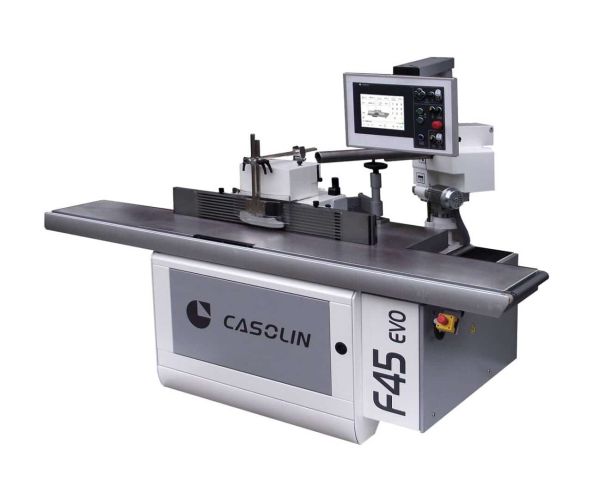

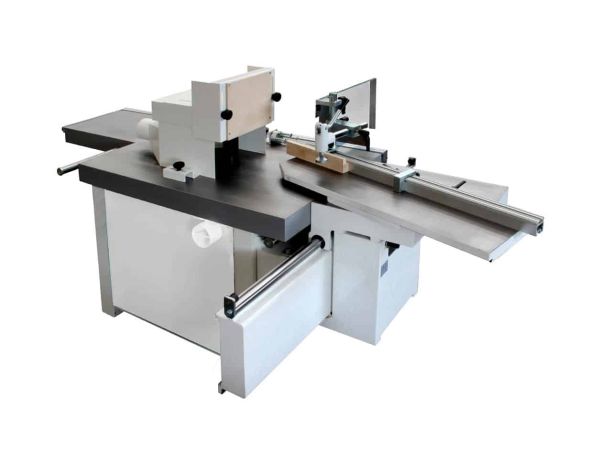

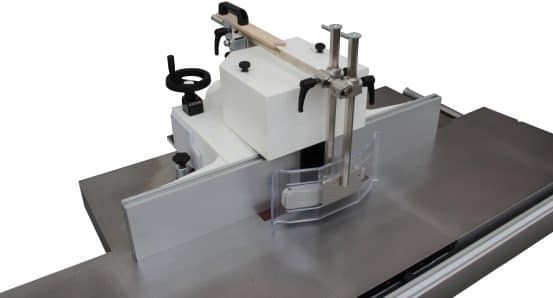

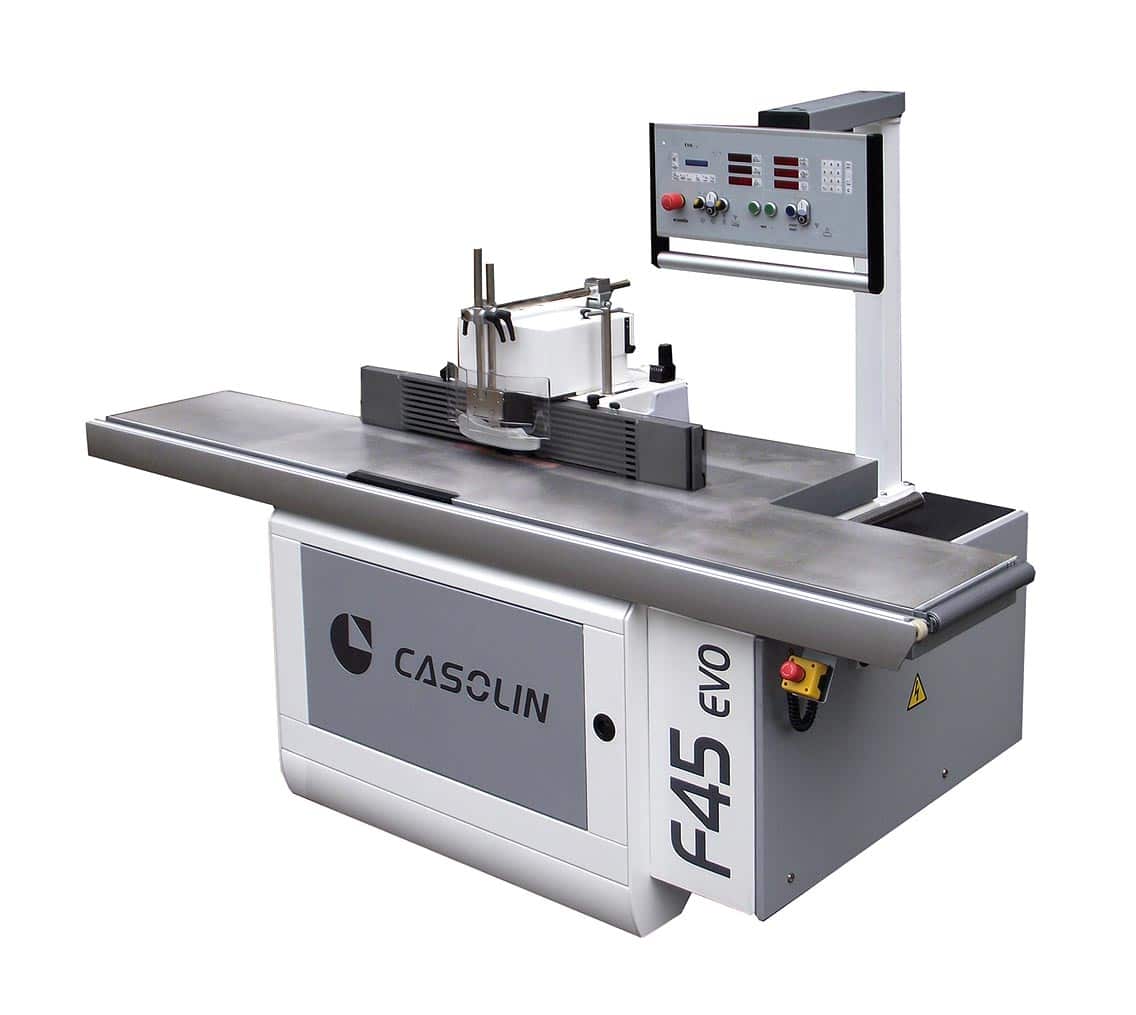

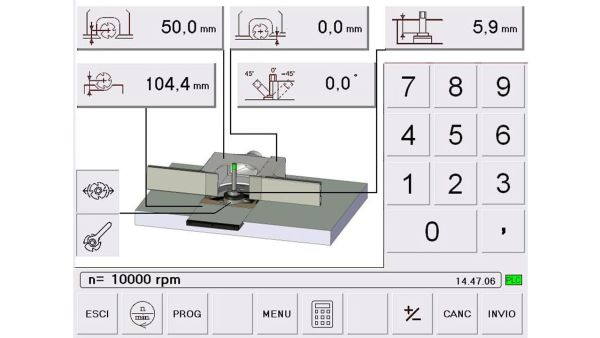

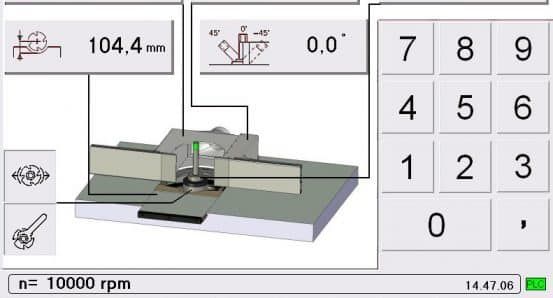

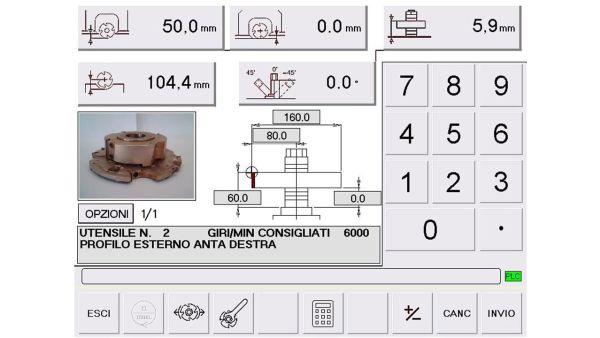

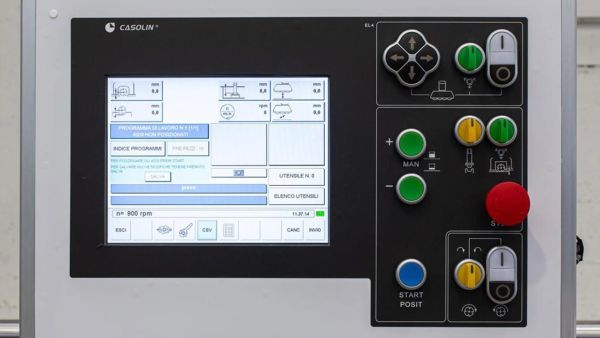

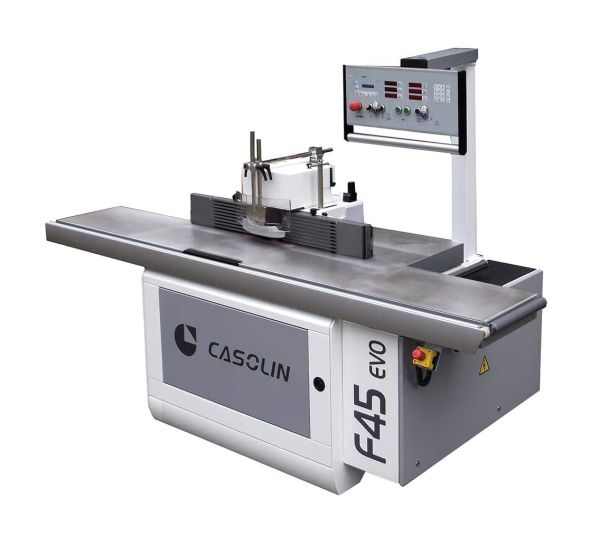

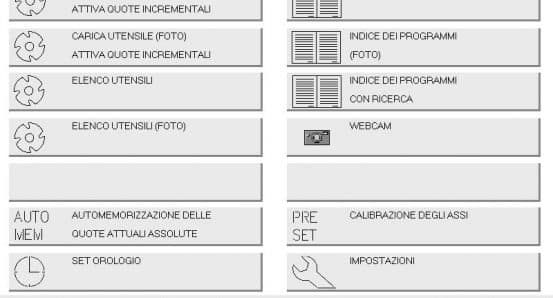

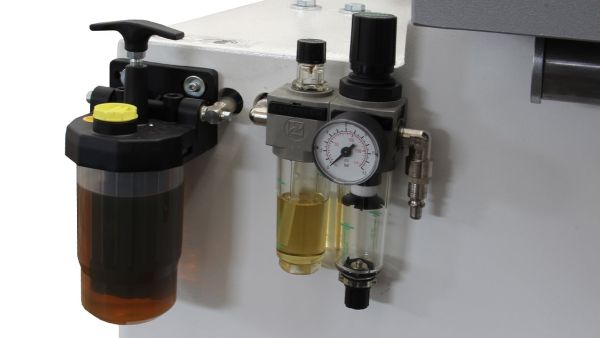

Spindle moulder model F 45 EVO with tilting shaft +-45° . Compact and very strong machine. Designed for modular composition, with long plans 2630×770 mm and  tenoning carriage. Base version with hanging control panel 3 axis – lifting-tilting – horizontal movement of front table- speed viewer. Standard spindle moulder fence with manual adjustment of the transverse movement driven and shoulder infeed, tool diameter 250 mm. Centralized lubrification pump spindle moulder unit. Interface with USB memory stick for saving even external programs.

Machine ALL MADE IN ITALY..

Caratteristiche

  • Work table height 885 mm
  • Table dimension 1300×920 mm
  • Diameter of shaft 30-35-40-50 mm 1,1/4 inch on request
  • Spindle working height 140-180 mm
  • Spindle rotation speed 3000-4500-6000-8000-10000 r/min
  • Standard motor power 7,5 Kw (10 HP)

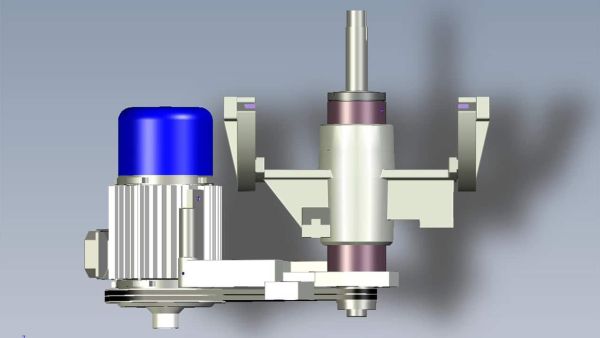

  • Tilting shaft -45,5° +45,5°

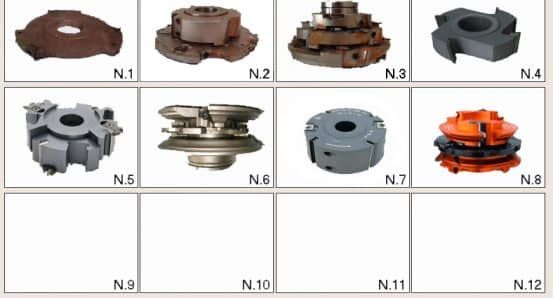

  • Max diameter of tools in profiling 250 mm
  • Weight 1000 Kg.
