CASOLIN Avion 1350

Wide belt sanding machine Casolin model Avion  1350 mm.

Machine available in 2 versions:
Roller-roller-roller
Roller-roller-pad
Machine equipped with:
Check control on the panel , automatic star delta , floating input rubber press roller with safety device, direct roller brake device, font and back extension work table with 3 rubber rollers.

Machine ALL MADE IN ITALY

Specifications

  • Usable working width 1350 mm
  • Spessore minimo lavorabile 3 mm
  • Spessore massimo lavorabile 150 mm
  • Belt size 2620 x1380mm
  • Feed speed 6-12 mt/min
  • Feed motor 0,37-0,55 Kw
  • Potenza motore sollevamento piano 0,18 Kw

Ekstra udstyr:

• Floating input rubber press roller with safety
device;
• Floating central and output steel press roller;
• Automatic star-delta;
• Piece thickness measuring device and operating table height digital display;
• Direct roller brake device;
• Electronic control of the belts by means of
infrared rays photoelectric cells;
• 2 speed belt feed motor controlled by control
board;
• Front and back extension work table with 3
rubber rollers;
• Construction in conformity with current EC
standard;
• Check control on the panel.

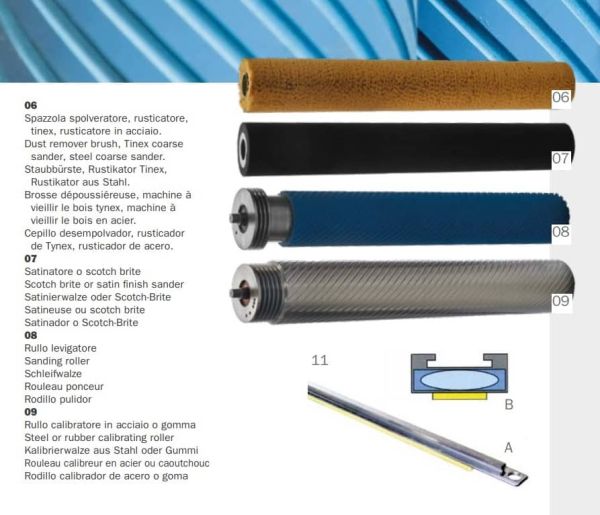

Dust remover brush, Tinex coarse nsander, steel coarse sander
_Scotch brite or satin finish sander
_Sanding roller
_Steel or rubber calibrating roller
_Polishing pad
