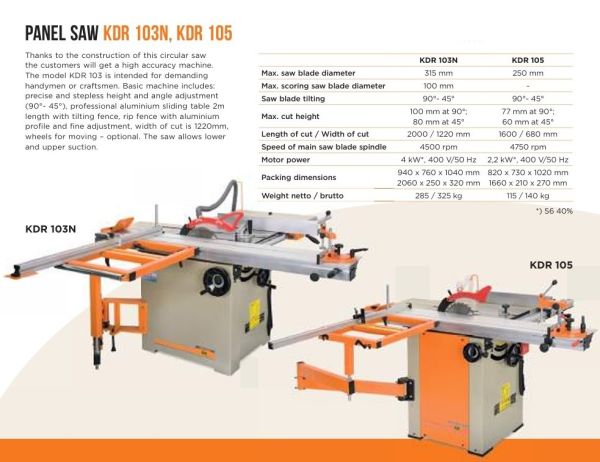

Rojek type KDR 103 N – 105 formatrundsav

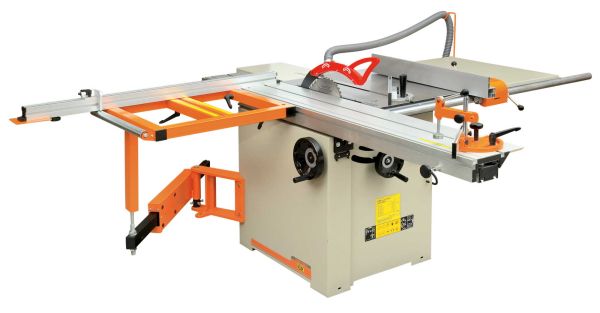

PANEL SAW is designed for cross cut and linear cut of material. With its heavy duty construction the machine is intended for demanding handymen and craftsmen. The machine includes a scoring unit, enables saw blade tilting and uplift.
KDR 103 N – Technical data
|
| Saw |
| Motor power S6 40% |
4 kW |
| Voltage / frequency |
3 x 400V / 50Hz |
| Speed of main saw blade spindle |
4 500/min. |
| Max. saw blade diameter |
Ø 315 mm |
| Scoring unit |
Ø 100 mm |
| Saw blade tilting |
90° – 45° |
| Max. depth of cut |
100 mm [90°]
80 mm [45°] |
| Max. width of cut |
1 220 mm |
| Max. length / width of table |
2 000 x 270 mm |
| texttd(545) |
940 x 760 x 1 040 mm
2 100 x 250 x 300 mm |
| Nett weight |
285 kg |
| Gross weight |
325 kg |
|
