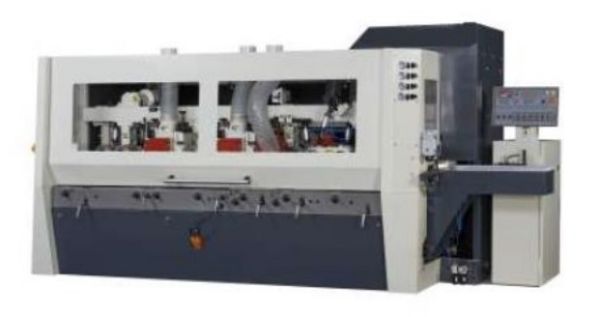

SK Global SKS-623-ME 150 x 230 mm kraftig kompakt maskine med 6 spindler

SK Global SKS-623-ME 6 spindlet kehlemaskine, meget kraftig kompakt maskine, særdeles egnet til meget hårde træsorter.

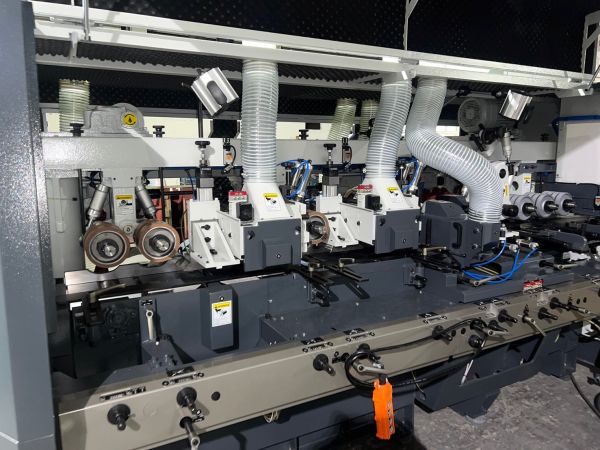

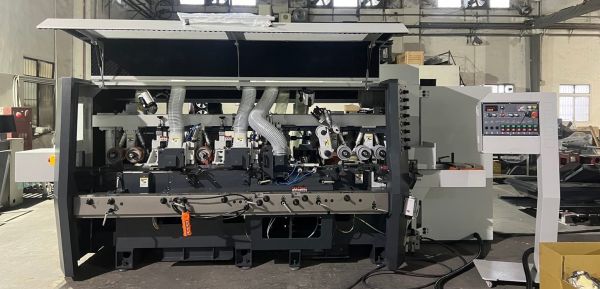

Heavy Duty 6 Spindle Moulding Machine SKS-623-ME
-Max. Width x thickness: 230 x 150mm
-Hard chrome table
-Mechanical digital readouts
-Central lubrication points for all spindles.

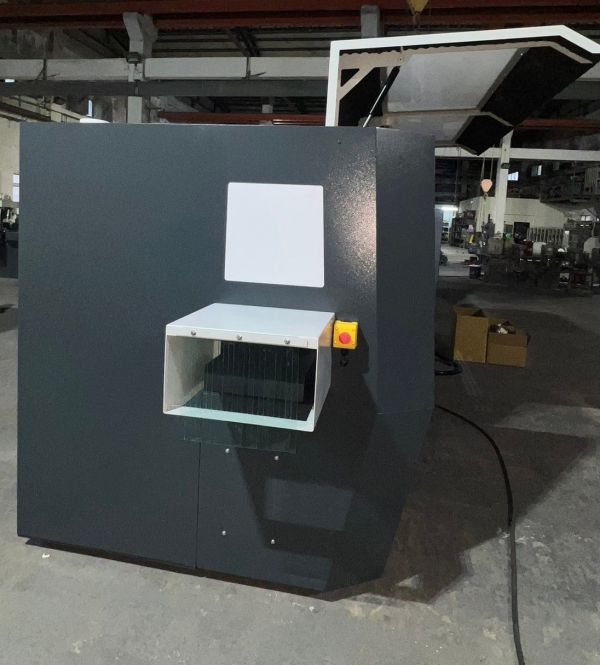

-Full sound and safety enclosure.

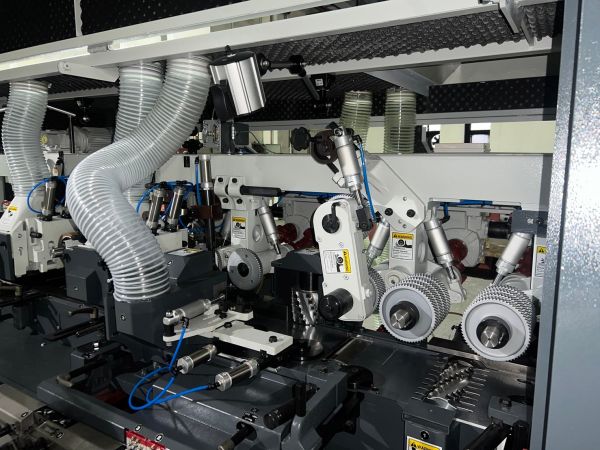

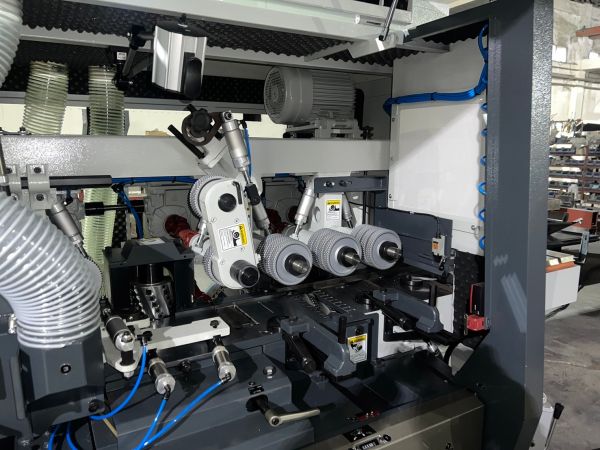

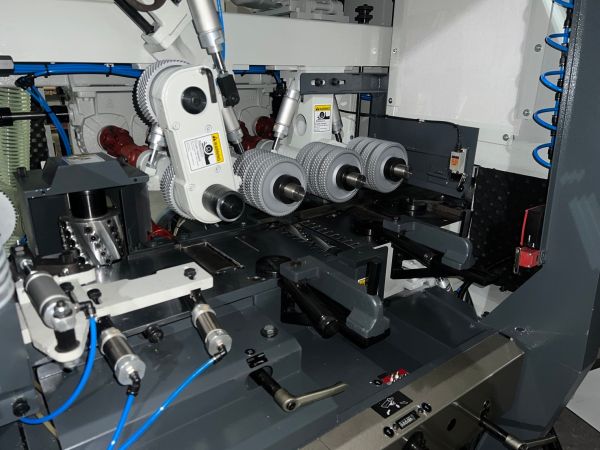

-Pneumatic controlled feed rollers.
-Full cardan shaft drive to feed works

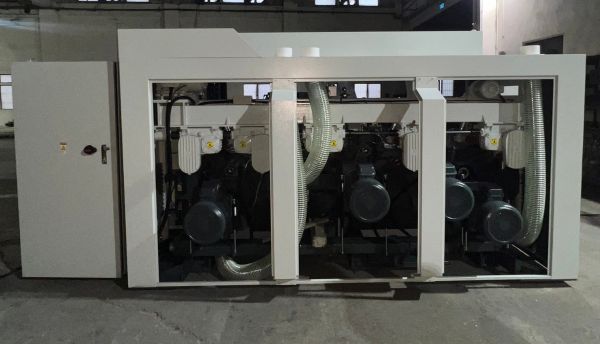

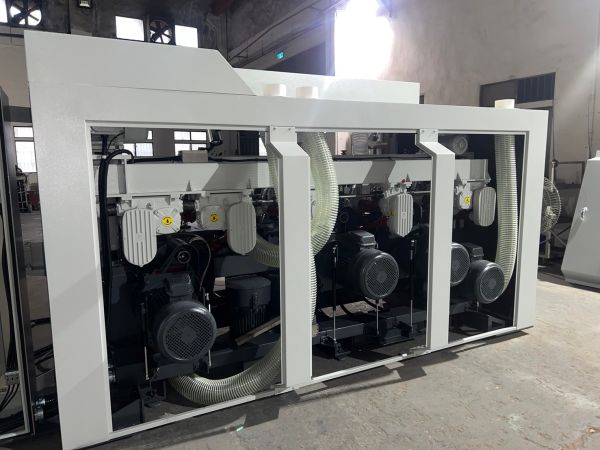

-Individual motor to each spindle.

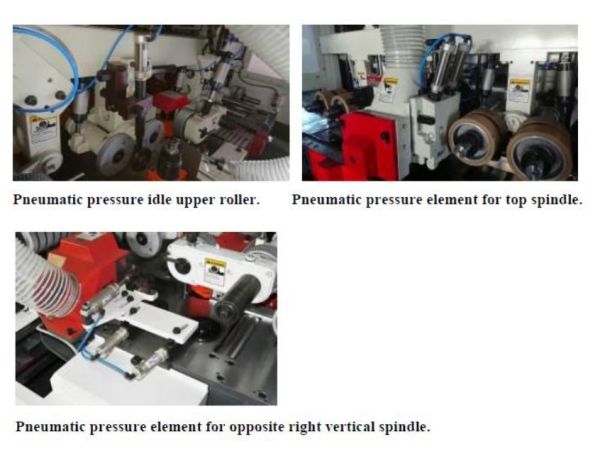

-Pneumatic pressure idle upper roller.
-Pneumatic pressure element for opposite right vertical spindle.
-Pneumatic chip breakers on 3rd, 4th, 5th spindle
-Manual oil pump to remove the resin from table. Each table has 2 hole for lubrication.

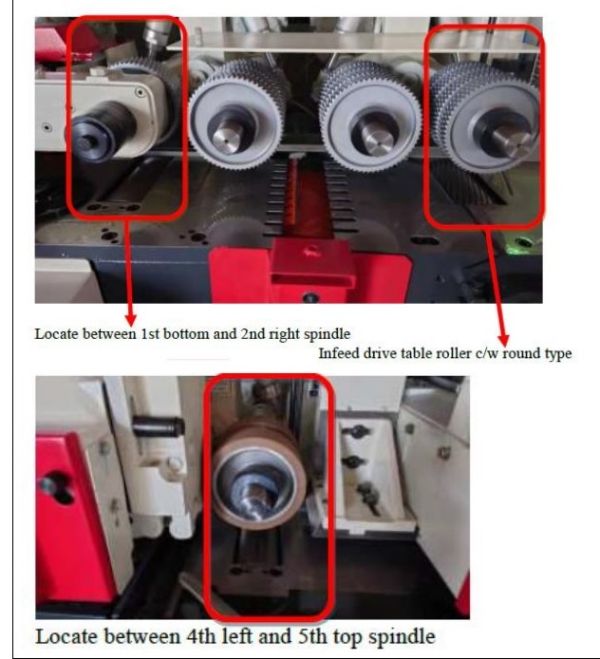

-Short infeed table, 2M long with 1 driven roller above on table, table harden and chromed
-Pneumatic pressure element for top spindle.
-Pressure shoe above the six spindle
-6000 RPM of spindle, spindle diameter 40mm

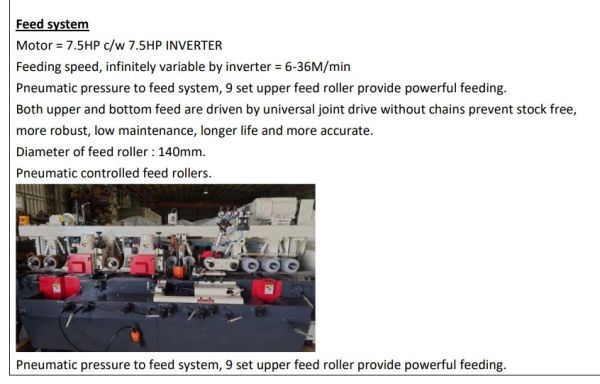

-Feed motor: 7.5HP by inverter variable speed from 6~36M/min.

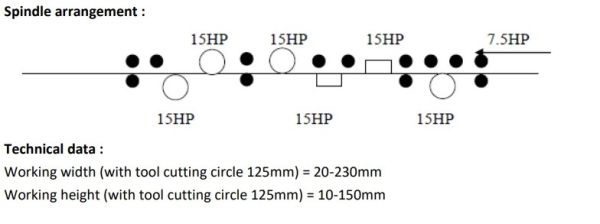

-Spindle configuration & motor:
-Bottom 15HP, Right 15HP, Left 15HP, Top 15HP, Top 15HP, Bottom 15HP
