SK Global SKG-230JH AT12 indløbsbane og AT23 udløbsbane

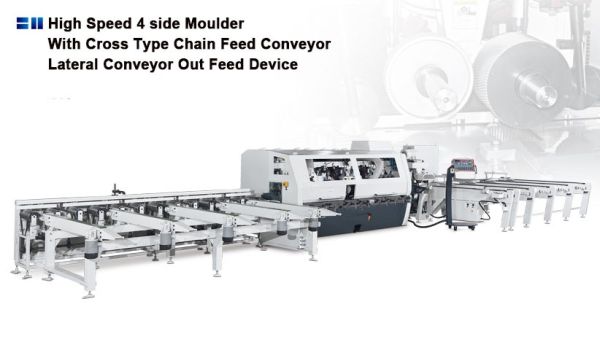

SK Global SKG-230JH med AT12 indløbsbane og AT 23 udløbsbane med PLC kontrolpanel

Den nyudviklede højhastigheds computeriserede 4-sidet kehlemaskine fra SK er fremragende til bearbejdning af lange træemner, såsom byggematerialer, vægplader og fingerfræsere osv. Udstyret med en samlingsenhed og et tværgående kædefremføringsbord producerer maskinen ikke kun en ekstra fin overflade af produktet, men øger også bearbejdningseffektiviteten dramatisk.

SPECIFICATION

MODEL	SKG-230JH
Working width min.~max.	30~230 mm
Working height min.~max.	10~150 mm
Straightening table length (Hard chrome plated)	1.2 M
Spindle power	20 HP / 25 HP (Opt. 30HP)
Feeding power	20HP / 25HP
Speed of feeding	10~120 M/min
Diameter of spindle	40 mm (Opt. 50 mm)
Feeding speed	6,000 RPM
Diameter of cutter for 1st bottom spindle	125~180 mm
Diameter of cutter for vertical spindle	150~200 mm
Diameter of cutter for horizontal spindle	150~230 mm
Adjustment range of straightening table	10 mm
Adjustment of vertical spindle	50 mm
Adjustment of horizontal spindle	30 mm
Diameter of feed roller	200 mm x ø35 mm
Width of feed roller	50 mm
Width of feed roller opposite to left spindle	20 mm (increased width available)
Width of rubber feed roller	50 mm
Max. cutting capacity for 1st bottom spindle	10 mm

• Jointer device

• Out broad bearing support on horizontal spindle

• Table surface is hard chrome treat

• Specifications and design features are subject to change without notice.

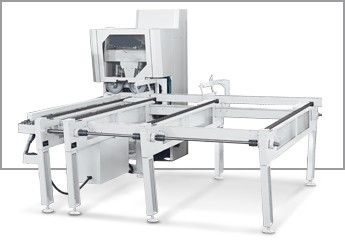

Cross Type Chain Feed Conveyor : AT12

• Feeding width min.~max. : 20~230 mm
• Feeding height min.~max. : 10~150 mm
• Working length : 1,000~5,000 mm
• Material waiting area : 2 M (Available to adjust according to wood size)
• Feeding power : 7.5 HP
• Speed of spindle : 10~120 M/min
• Diameter of feed roller : ø200 mm
• Chain feed motor : 3 HP

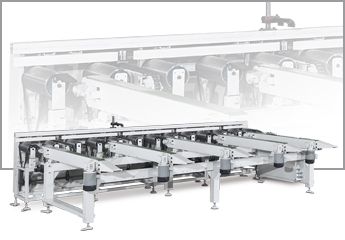

Lateral Conveyor Outfeed Device : AT23

• Feeding width min.~max. : 20~230 mm
• Feeding height min.~max. : 10~150 mm
• Working length : 1,500 mm~Can be customized
• Material waiting area : 2 M (Available to adjust according to wood size)
• Feeding power : 3 HP
• Speed of spindle : 30~140 M/min
• Diameter of feed roller : ø132 mm
• Chain feed motor : 3 HP

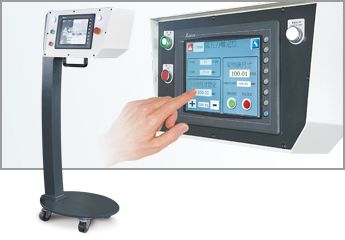

PLC Control in Combination With HMI Touch Screen

• The 10.4″ high resolution touch screen.
• Computerized automatic cutter calibration dramatically shortens time of tool calibration.
• Spindle positioning accuracy: 0.01 mm.
• 200 sets of cutter data display.
• 50 sets of memory capacity of production modules.
• Error message display facilitates trouble shooting.
• Also suitable for small lots flexible production mode.
• Spindle arrangement can be varied according to customer’s requirement.
