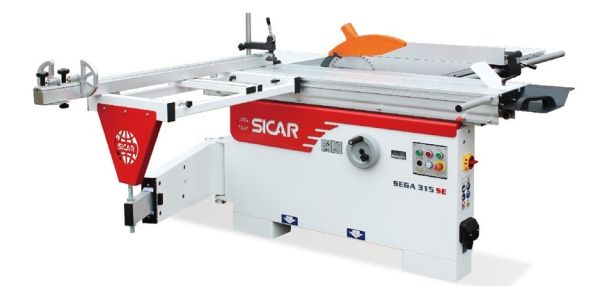

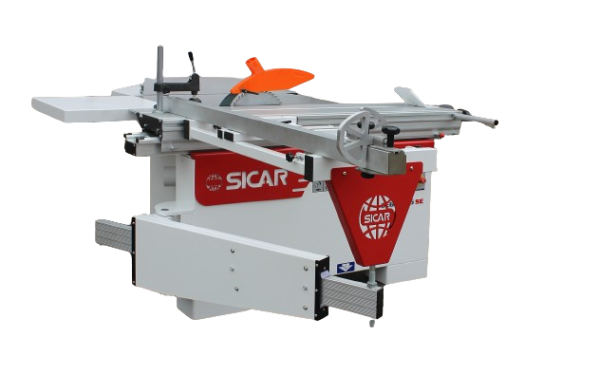

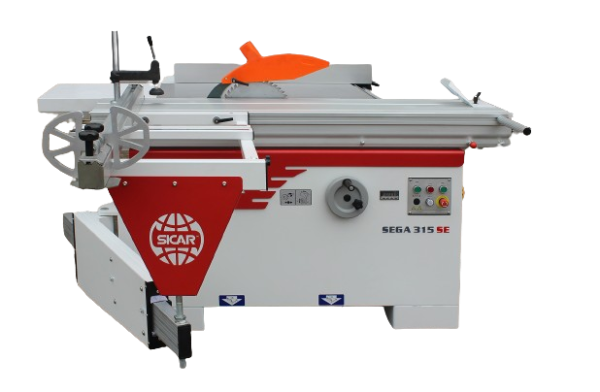

Sicar Sega 315SE formatrundsav
Sicar Sega 315 SE formatrundsav
Kan leveres i 2 udgaver 1600 eller 2600 mm rullebord
Technical Specifications
| Technical specifications | PANEL SAW 315 SE | |
| Main worktable | mm | 910×760 |
| Additional side worktable | mm | 500×550 |
| Main blade speed | rpm | 4000 |
| Engraver speed | rpm | 8000 |
| Blade diameter | mm | 250-315*30 |
| Diametro incisore | mm | 120×20 |
| Maximum cutting height at 45° | mm | 75 |
| Maximum cutting height at 90° | mm | 100 |
| Maximum cutting distance between blade and fence | mm | 1250 |
| Cart dimensions | mm | 3200 |
| Three-phase motor power | HP -KW | 5,5 – 4 |
| Scorer motor power | kW-HP | 1,0-0,75 |
| Weight | kg | 550 |
| Packaging dimensions | mm | 1750x1030x1100 |
| Packaging dimensions of the carriage | mm | 3560x420x210 |
