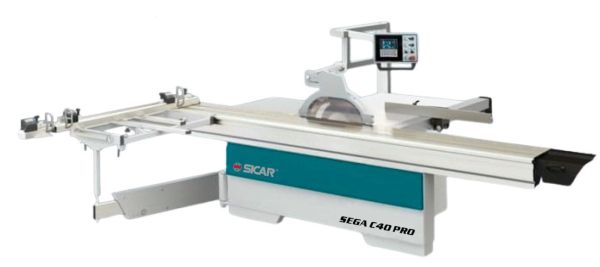

Sicar Sega 400 Pro 3 akset formatrundsav

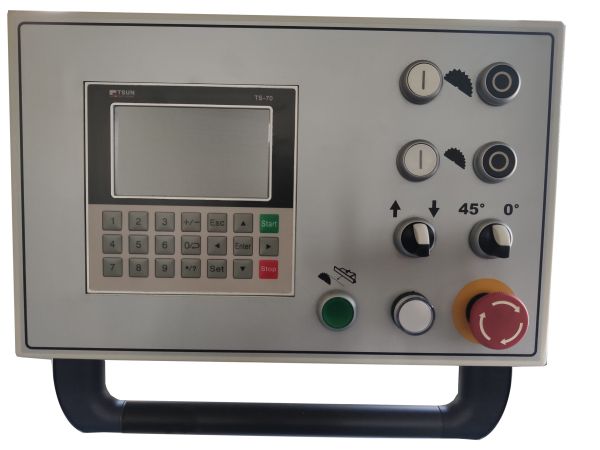

Sicar Sega 400 Pro 3 akset formatrundsav med PLC
Rullebord 3200 mm,
Technical Specifications
| Technical specifications | ||
| Table dimensions | mm | 1750×1000 |
| Blade speed | rpm | 3K/4K/5K |
| Incisor blade speed | rpm | 8000 |
| Blade diameter | mm | 400×30 |
| Incisor blade diameter | mm | 120×20 |
| Maximum cutting height at 45° | mm | 97 |
| Maximum cutting height at 90° | mm | 140 |
| Maximum distance between blade and rip fence | mm | 1400 |
| Cart dimensions | mm | 3200x390x223 |
| Three-phase motor | kW-HP | 5,5-7,5 |
| Incisor motor | kW-HP | 0,75-1 |
| Net/gross weight | kg | 1030/1140 |
| Packaging | mm | 2450x2320x1500 |
| Carriage packaging | mm | 3300x420x240 |
