Virutex TM 33W dreje/kipbar geringssav



Video

TM33W brochure

Kontakt for mere information

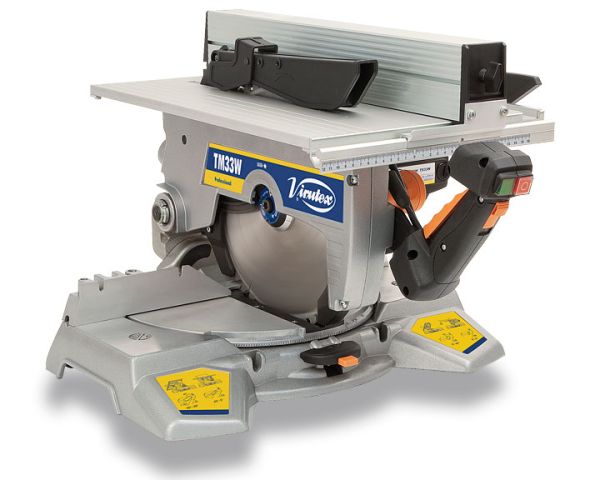

Kipbar geringssav med overliggende savbord.
Er som standard altid med indbygget laserlys.

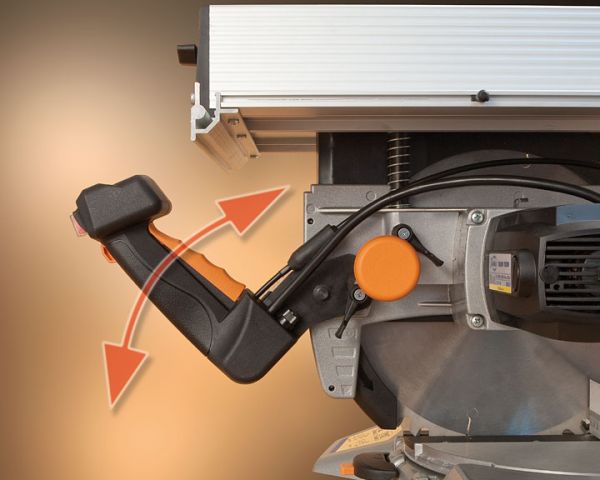

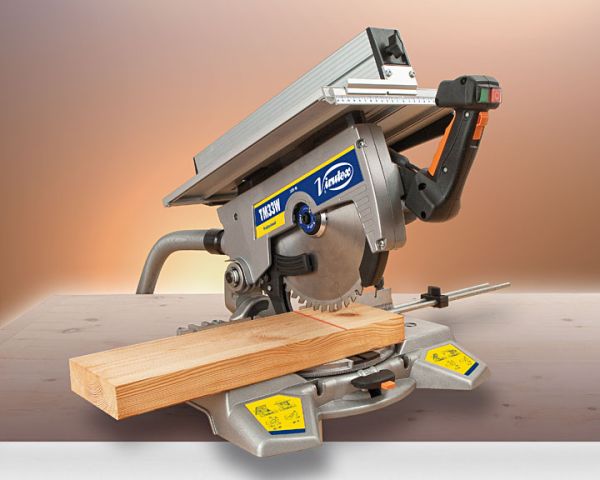

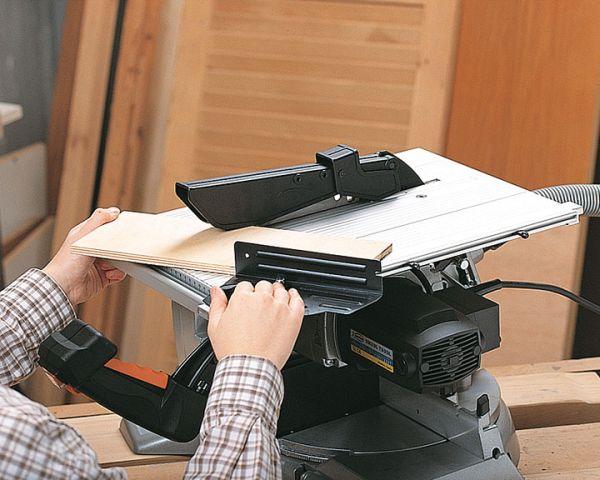

High precision portable tiltable mitre saw. Big cutting capacity, up to 160×95 mm or 200×45 mm. Head can be tilted from 0° to 45°. Equipped with upper table. Integral safety system with saw blade brake and protection against intempestive switch on. Connection for external dust collection.

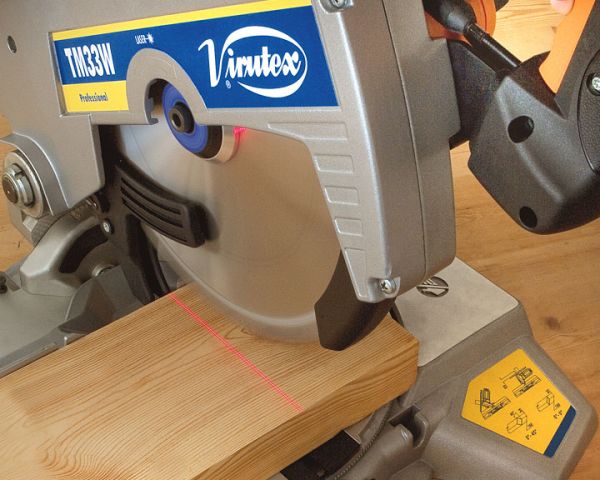

With precission laser.

Includes shut-off button for easy change of saw disc. No noise from gears: belt transmission with safety tension.



Cutting capacity



Standard equipment

Professional carbide saw blade Ø 300 mm 48 Z, precission laser, length cutting guide and service keys.

Double insulation
Input power:1.500 W
No-load speed:3.700/min
Saw blade diameter:300 mm
Weight:20 Kg
Cutting capacity:
Cutting to 0° x 0°:160×95 mm
(with supplement 36 mm) ref.: 3346388200×45 mm
Cutting to 0° x 45°:110×95 mm
Cutting to 45° x 0°:160×64 mm
Cutting to 45° x 45°:75×64 mm
Max. cutting capacity on upper table:55 mm

3345416 Pressers set

3345470 Set of lateral handles

3346388 Set of supp. cut 200 mm

6446073 Standard dust collector attach. 3.5 m (for upper table)

5800100 MT58K Portable table

7246098 Square for table
