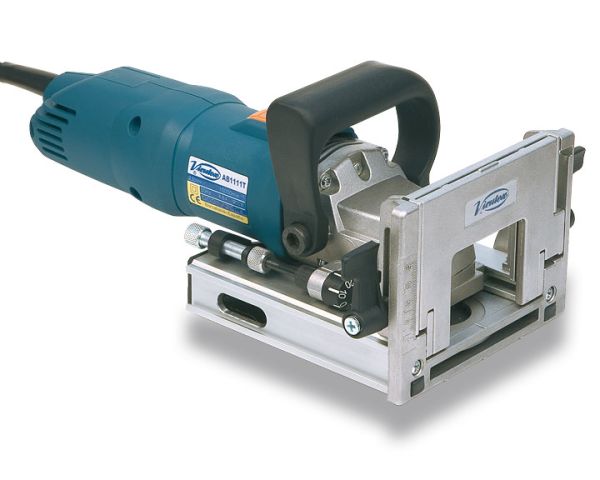

Virutex AB111 N kikshåndfræser

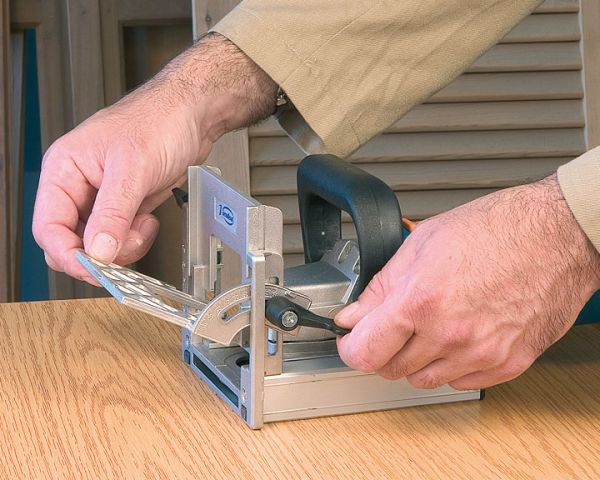

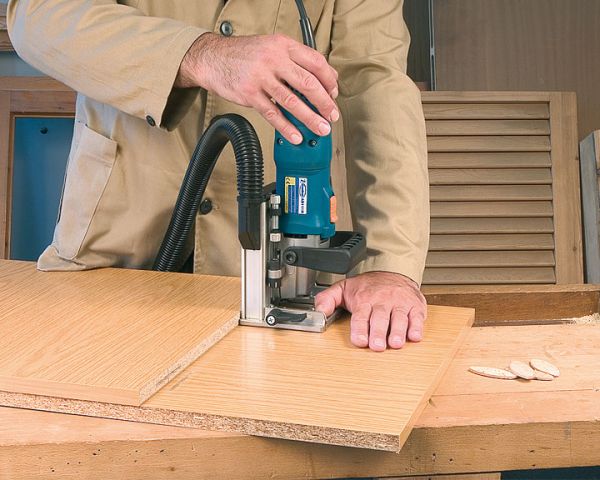

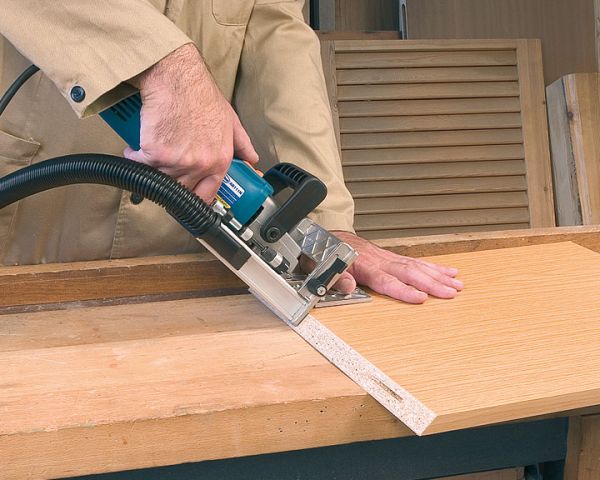

The jointing machine AB111N is specially designed for grooving panels in any position. Thanks to the design of its micrometric fence, which can be adjusted at any height and angle, and to a graphic signs it is not necessarry to take exact measurements, due that it is possible a lateral deplacement of 2 cm for adjusting the joint, once made the groove. A pre-adjusted stopper allows to select the different grooving depths fast and easy. The machine can work usually on panels of 16, 19 and 22 mm thickness, but it is possible to work on thicker pieces thanks to the movable fence which allows to center perfectly the grooves. It is advisable to make three or more grooves to have stronger joints.

Cutter milling 100 x 22 x 4, of 2 teeth and 2+2 spurs
Carrying case
External dust collection connector
Double insulation

Input power:800 W
Blade:100x22x4 mm
No-load speed:10.000/min

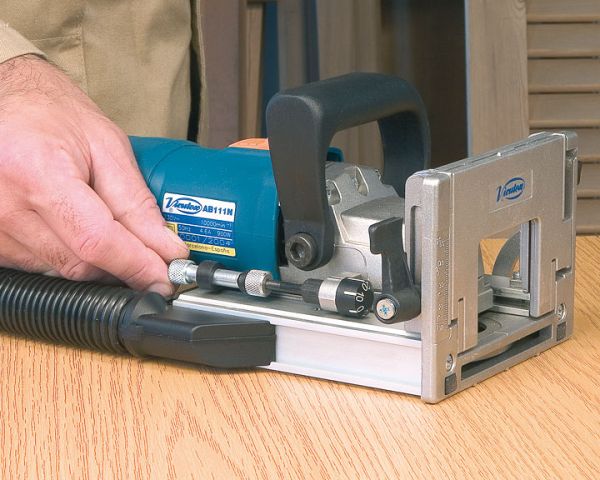

Max. slotting depth:20 mm
Weight:2,6 Kg

6446073 Standard dust collector attachment 3.5 m
6446079 Repairing head CA64B
6446078 Lateral fence CB64B




Wooden assembly splines

1405001 Box of 1000 un. Nº “0”, 47x15x4 mm, Slot depth 8 mm 8 mm
1405002 Box of 1000 un. Nº “10”, 53x19x4 mm, Slot depth 10 mm
1405003 Box of 1000 un. Nº “20”, 56x23x4 mm, Slot depth 12 mm
1405004 Box of 1000 un Nº “6”, 85x30x4 mm, Slot depth 20 mm x2*
(*) 2 contiguous slots at 15 mm
