Virutex AB 181 håndfræser for samlinger

Router for connectors

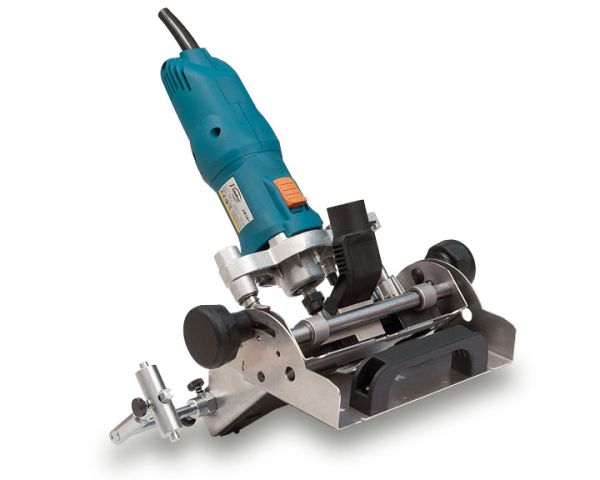

Router for placing connectors for detachable or fixed assemblies.

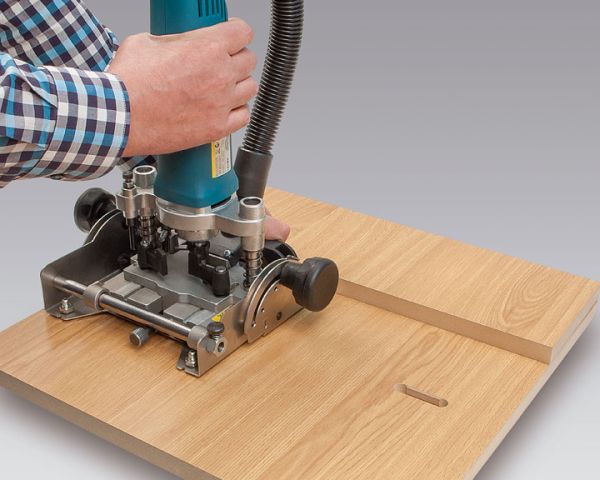

Machine specially designed for trimming the slots to place the OVVO® automatic connectors for assembling panels. Easy to use it makes the trimming fast and accurate. (Patented model)



Powerful 1000 W motor with electronics for speed adjustment and to keep the speed constant under load.

Positioning of the machine by mean of retractable stoppers and visual references.No need to take measures.

Adjustable fence for trimming in several angles. Automatic stoppers for 0°, 45° and 90°.

Precise adjustment of the panel thickness.

Precise adjustment of the trimming depth.

Fast trimming depth adjustment for several dimensions of the connectors. No tools or other machine adjustments needed.

Non-slip double base with non-scratch protection.

Dust collector nozzle. For a connection to an external dust collection.





conectores_3
New OVVO® assembling system

(Patented)

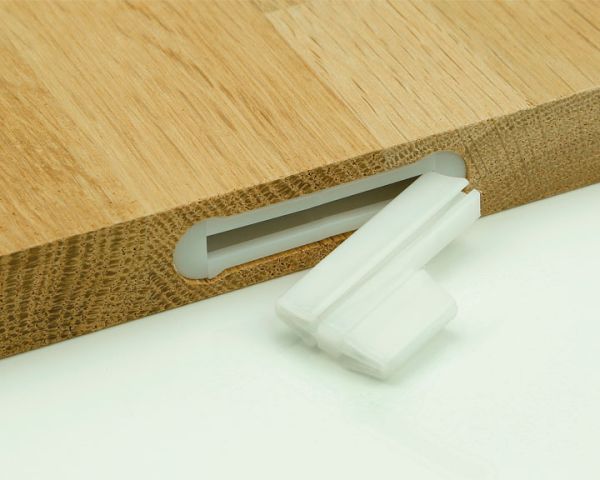

The OVVO® connection system saves assembling time and allows to transport the furnitures in flat parcels, saving time and volume. It is not necessary to use tols, screws or glue to assembly the pieces. The OVVO® system is a solution to join two pieces easily without to use traditional systems.

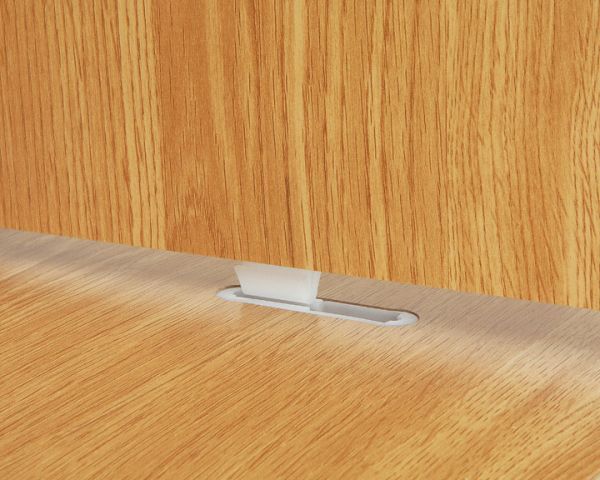

Invisible and detachable. Joints without glue

Very easy operation. Just press both pieces to be assembled, with the connector aligned, until to hear a “click”. The assembly is done.

It is an invisible solution, with a internal automatic clamp, that creates a perfect union between the two assembled pieces.

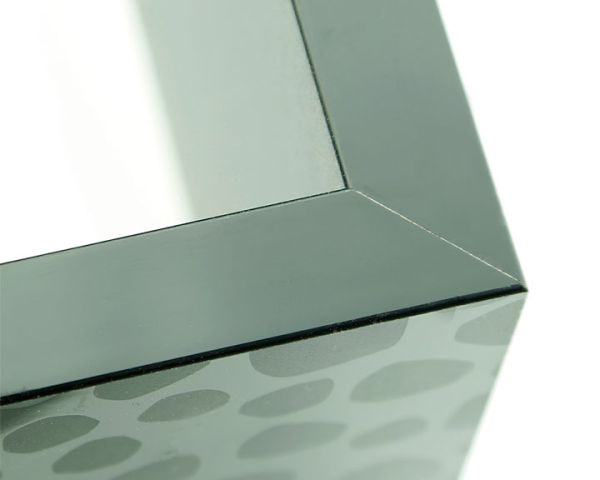

The OVVO® connectors system allows a variety of joints and angles

conectores_2







Standard equipment

7940398 Carbide bit for connector 1240

7004221 Nozzle

Input power:1000 W
No-load speed:14000-27000/min
Chuck collet:8 mm
Weight:3,6 kg

7940398 Carbide bit for connector 1240 (standard equipment)

7940401 Carbide bit for connector 0825

1746245 Dust collection attachment 5 m

6446073 Dust collection attachment  2.25 m
