PE Maskiner  har gennem mere end 45 år arbejdet med spånsugningsanlæg over det meste af landet.
Gennem årene har dette givet os uvurderlig erfaring, og spånsugningsanlæg har udviklet sig til et af vore absolutte kompetenceområder.
Ring og forhør nærmere. Vi giver gerne et uforpligtende tilbud på såvel store som helt små anlæg.

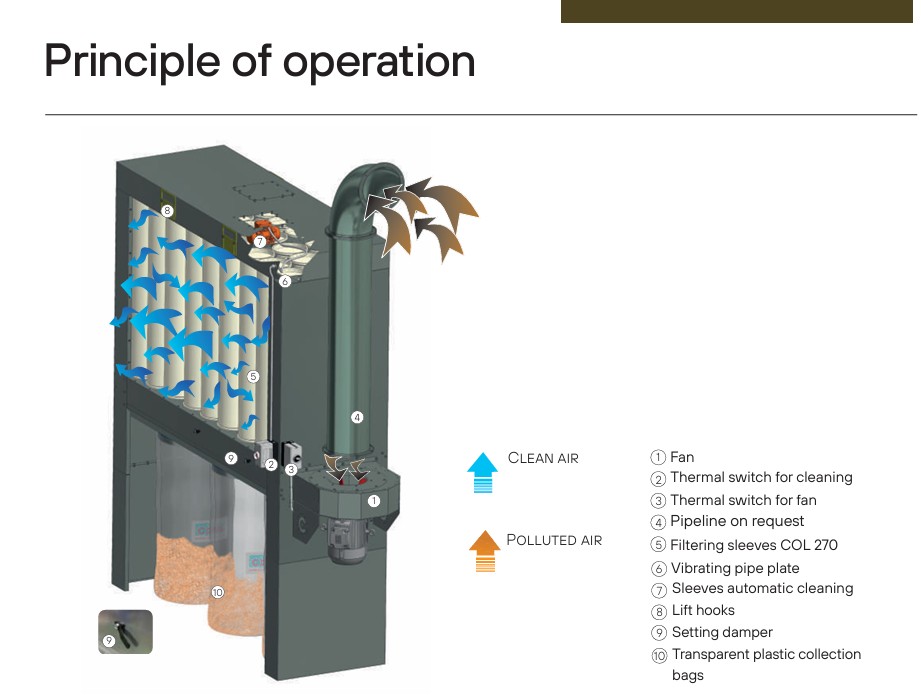

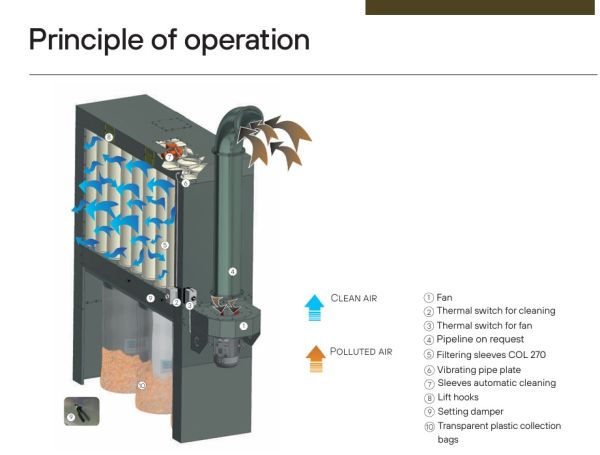

The CORAL MEC filtering-station is of the modular sleeve type with continuous automatic unloading, for filtering woodchips, dust and sawdust. The structure is composed by sturdy galvanized panels bolted to one another.

Filtering efficiency
The filtering media used is polyester needlefelt. The polyester comes in two weights: type A suitable for rough chips, type B for finer dust.

Efficiency and energy recovery
The possibility to recycle the filtered air makes it possible to save considerable amounts of energy because the temperature is not lowered in the working area where the air is extracted.

Ease of access and maintenance
The MEC is accessible from the hatche of the hopper to check the conveying system and from the side doors for checking the conditions of the filtering sleeves which may be tensioned through the special adjustable sleeve tensioning plate. Service steps and gangways according to accident-prevention regulations are supplied upon request.

Explosion relief panels
Upon request explosion relief panels with certification can be supplied.

Anti-return valve
Different fans may be connected to the same pre-chamber due to the use of anti-return valve on each inlet which prevent the air taken in from flowing into other pipes connected. The possibility of connecting different fans to the same filter makes it possible to develop more flexible systems.
