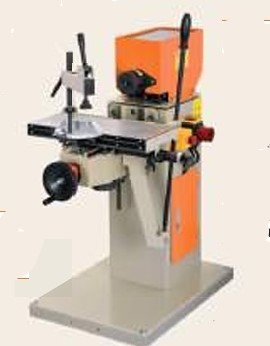

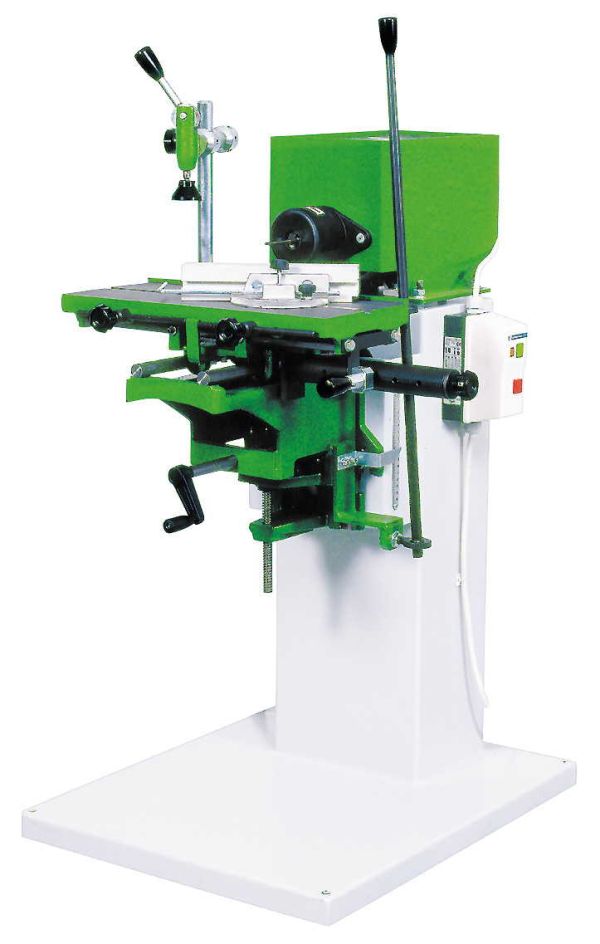

Rojek VDA 316 langhulsboremaskine
Precision ground cast iron table with slot

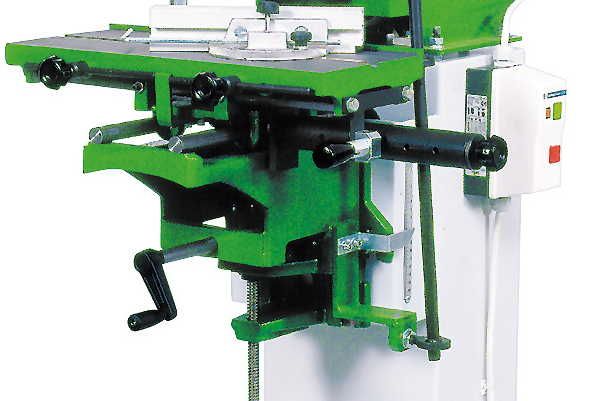

One-lever operating system
Overload protection
Woodpresser
CE standards
Options:
Four size rotor group with fixed position 16, 22, 32, 38 mm

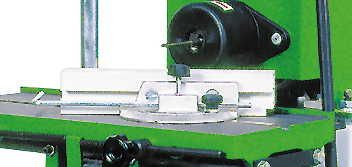

Table slot and guide with protractor.

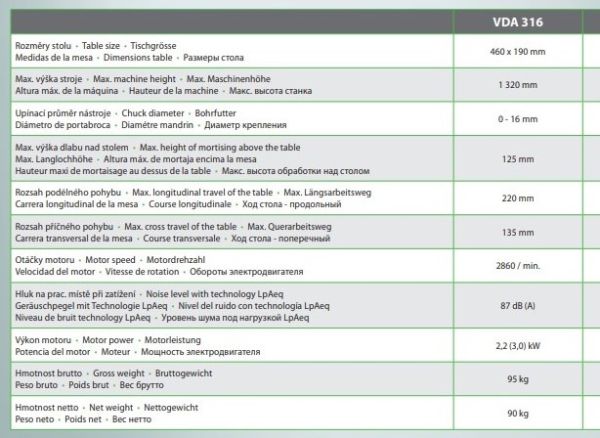

VDA 316 – Technical data
|
| Slot mortising machine |
| Motor power |
2,2 (3,0) kW |
| Motor speeds |
2 860/min. |
| Max. tool diameter |
Ø 16 mm |
| Max. height of mortising above the table |
125 mm |
| Max. longitudinal travel of the table |
220 mm |
| Max. cross travel of the table |
135 mm |

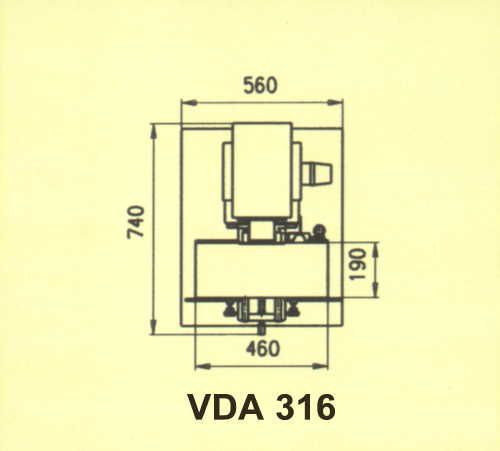

| Machine dimensions |
| Length |
740 mm |
| Width |
560 mm |
| Height |
1 320 mm |
| Table size |
460 x 190 mm |
| Gross weight |
95 kg |
| Nett weight |
90 kg |
| Other parameters |
| Voltage / frequency |
3x400V (3x230V | 1x230V) / 50(60)Hz |
| Line safeguarding |
16 A |
| Noise level without technology LAeq |
85,0 dB(A) |
| Noise level with technology LAeq |
87,0 dB(A) |
| Acustic achievement |
+ |
| Acustic achievement (with technology) |
+ |
|
