Rojek KDR 501 og 501N kombineret fræser rundsav
Combined multi-operation machines • Kombinierte Maschinen
Combined multi-operation machines are intended for demanding handymen or craftsmen. Thanks to the construction of this machine the customers will get a high accuracy
machine. Basic machine includes: professional Aluminium sliding table, cross cutting frame with telescopic arm, eccentric wood presser, rip fence with Aluminium profile and fine
adjustment, precise and stepless height and angle adjustment (90° – 45°).

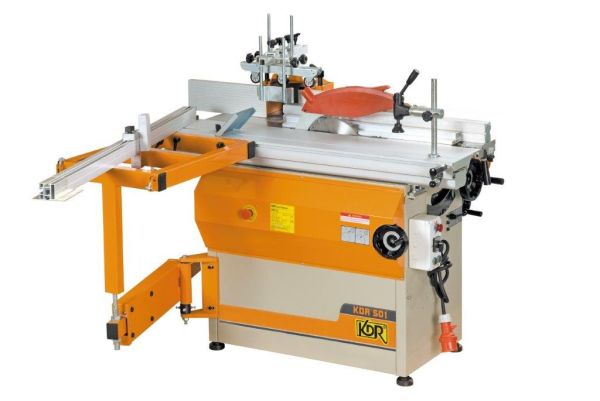

KDR 501 fræser / rundsav

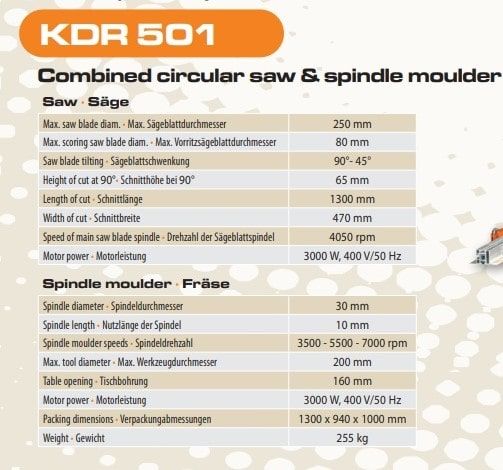

TECHNICAL DATA KDR 501
| Saw | |
| Motor power | 3 kW |
| Voltage / frequency | 3 x 400V / 50Hz |
| Speed of main saw blade spindle | 4 050/min. |
| Max. saw blade diameter | Ø 250 mm |
| Scoring unit | Ø 80 mm |
| Saw blade tilting | 90° – 45° |
| Max. depth of cut | 65 mm [90°] |
| Max. width of cut | 280 mm |
| Max. length of cut | 1 300 mm |
| Spindle moulder | |
| Motor power | 3 kW |
| Voltage / frequency | 3 x 400V / 50Hz |
| Spindle diameter | 30 mm |
| Spindle speeds | 3 500; 5 500; 7 000/min. |
| Max. spindle stroke | 100 mm |
| Max. tool diameter | 200 mm |
| The diameter of the hole in the table | 150 mm |
| Rozměry balení | 1 300 x 940 x 1 000 mm |
| Nett weight | 255 kg |
| Gross weight | 324 kg |

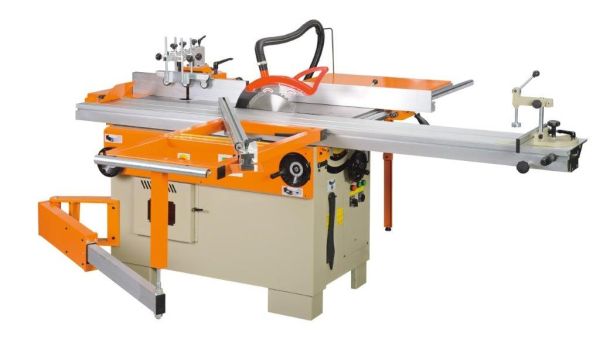

KDR 501N fræser / rundsav
TECHNICAL DATA KDA 501N
| Saw | |
| Motor power | 3 kW |
| Voltage / frequency | 3 x 400V / 50Hz |
| Speed of main saw blade spindle | 4 500/min. |
| Max. saw blade diameter | Ø 315 mm |
| Scoring unit | Ø 90 mm |
| Saw blade tilting | 90° – 45° |
| Max. depth of cut | 100 mm [90°] |
| Max. width of cut | 1 600 mm |
| Max. length of cut | 2 600 mm |
| Spindle moulder | |
| Motor power | 2,8 kW |
| Voltage / frequency | 3 x 400V / 50Hz |
| Spindle diameter | 30 mm |
| Spindle speeds | 1 800; 3 000; 6 000; 9 000/min. |
| Max. spindle stroke | 100 mm |
| Max. tool diameter | 200 mm |
| The diameter of the hole in the table | 150 mm |
| Rozměry balení | 2 300 x 900 x 1 105 mm + 270 x 2600 |
| Nett weight | 418 kg |
| Gross weight | 513 kg |
