Rojek FS 550 tapfræser med fast spindel

O=ekstraudstyr

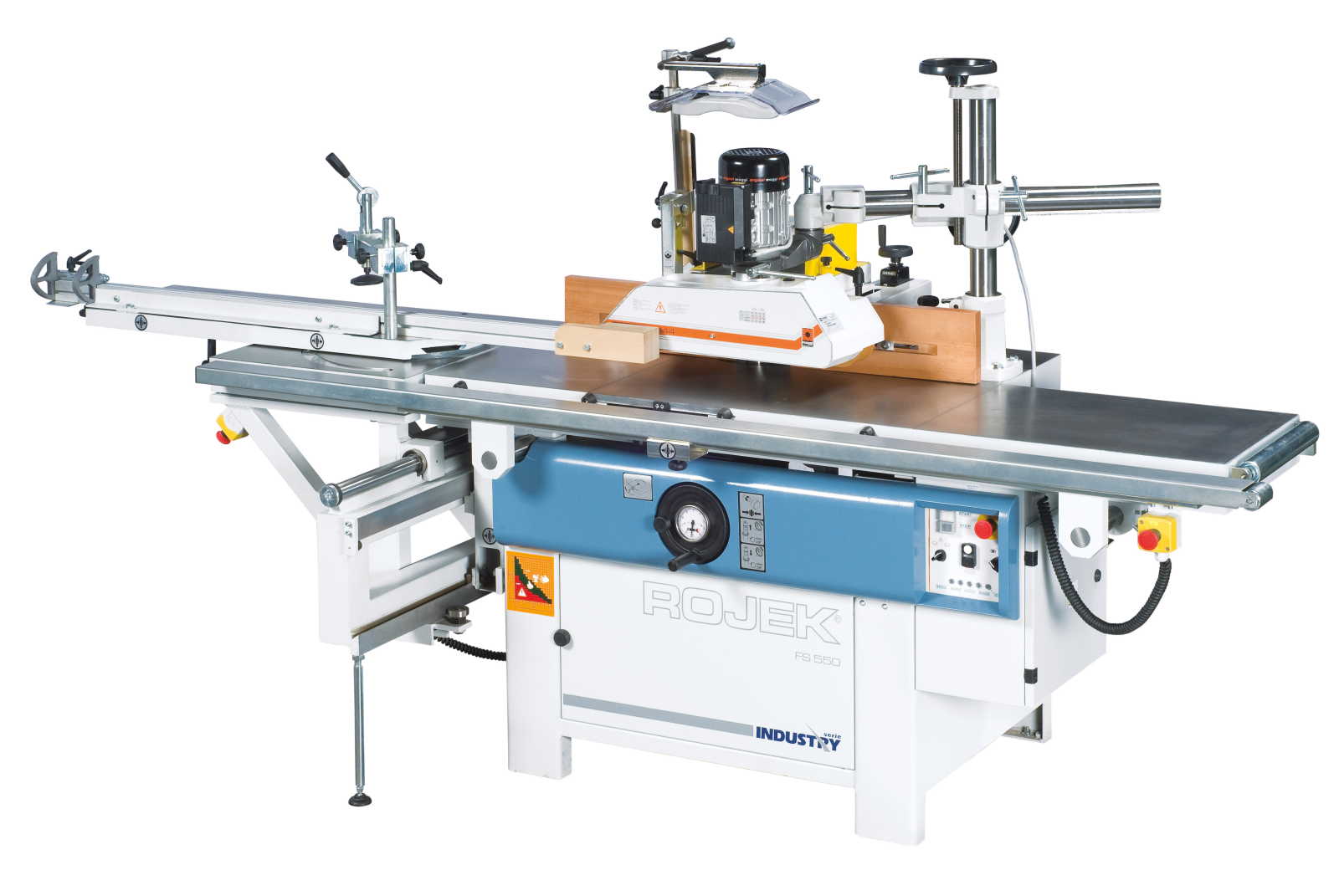

Rojek tapfræser FS 550 med fast spindel

Kontrolpult i øjenhøjde

Revolver stop på tapbord

Sektionsdelt fræsebord er standard

Stor sikkerhedsskærm for tappeværktøjer

Pneumatisk emnetilhold med 1 eller 2 cylindre

Spindle moulder
Motor power S6 40%	7,5 kW (9,2 kW)
Motor speeds	2 900/min.(3 480/min.[60Hz])
Spindle diameter	40 mm (30 \| 50 \| 32 \| 35 mm)
Spindle speeds	3 000; 4 500; 6 000; 8 000; 10 000/min.
Max. spindle stroke	200 mm
Spindle length	233 mm (193 \| 263 \| 193 \| 193 mm)
Max. tool height	180 mm (140 \| 220 \| 140 \| 140 mm)
Max. diameter of table opening	330 mm
Max. tool diameter under the table	320 mm
Max./min. tool diameter for profiling	250 / 80 mm
Max./min. tool diameter for tenoning	350 / 80 mm
Machine dimensions
Length	2 510 mm
Length with sliding table	3 270 mm
Width	1 020 mm
Width with sliding table	2 035 mm
Table height	900 mm
Max. height of machine	1 320 mm
Table size	1 200 x 780 mm
Size of front table extension	658 x 450 mm
Size of tenoning table	1 050 x 330 mm
Height of tenoning table	947 mm
Turn of tenoning table	+60° ÷ -90°
Travel of tenoning table	1 470 mm
Suction dust hood diameter	120 mm
Dimensions with packing	1 020 x 2 510 x 1 320 mm
Gross weight	930 kg
Nett weight	925 kg
Other parameters
Voltage / frequency	3x400V (3x230V) / 50(60)Hz
Line safeguarding	25 A
Noise level (without technology)	81,5 dB(A)
Noise level (with technology)	91,4 dB(A)
Acustic achievement	89,5 dB(A)
Acustic achievement (with technology)	98,7 dB(A)

Ekstra udstyr:
