Prodeco Polybrik T200 serie EPS COMPACTOR til firekantet briketter 200 x 200 mm

POLYBRIK T200 SERIES EPS COMPACTOR

The EPS 6 compactor (Polystyrene) is a machine that reduces the size of expanded polystyrene foam and expanded polypropylene foam.
It is also known as an EPS 6 (Polystyrene) densifier and EPS 6 (Polystyrene) cold compactor.
The EPS 6 (Polystyrene) compactor is widely used in food processing plants, electronics factories, warehouses for both white and black goods, and supermarkets.
The EPS 6 (Polystyrene) cold compactor, has been designed with the principle of auger compaction.
The machine operator puts the used blocks of EPS (Styrofoam) POLYSTYRENE into the hopper.
The blades inside the machine crush the blocks of EPS (POLYSTYRENE) foam into small chips.

.

Tekniske data:

Installed motor power: 4 kW;
EPS 6 volume reduction: 40:1;
Power capacity: m3/h 6-9;
Production: Kg/h 25-35;
Input measurement: 400 x 600mm;

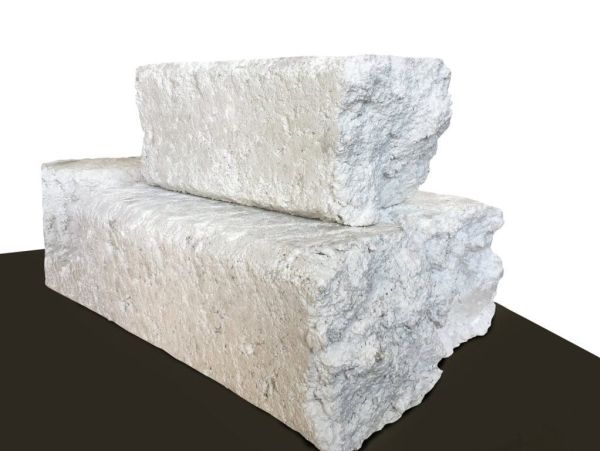

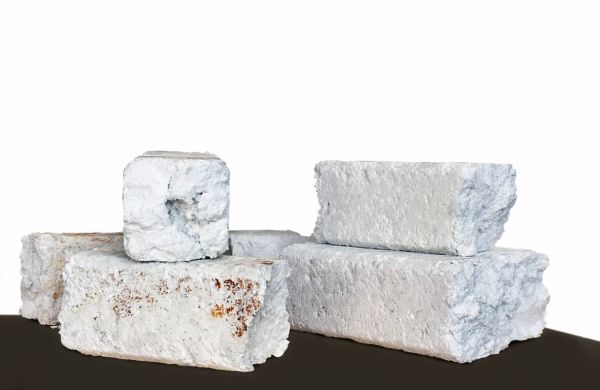

Block size: 200 x 200mm;
Machine weight: 400 kg;
Dimensions: mm 2700 x 480 x H1, 500;
Additional outlet channel 1,000 mm;
Service key;
Voltage 400V – 50 Hz (Different voltages on request);
Standard painting: Structure RAL 9010, protective casing RAL 9006.

The hourly production rate depends on the type of material, on the grain size and humidity.

.
