Description
1.Available with grinding lengths ranging from 1700 mm to 3100 mm, or longer for special grinding purposes.
2. Blade grinding machine features a heavy-duty reinforced machine base which gives the maximum stability.

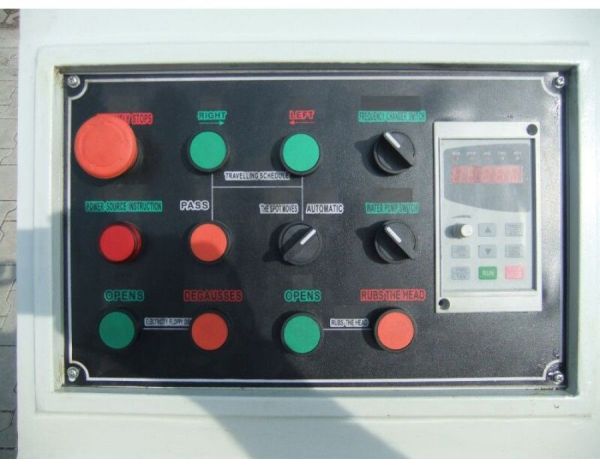

3.PLC controls the carriage movement during the various stages of the working cycle.
4.Suitable for a broad range of industrial straight knives, such as crusher knife blade, chipper knives blades, granulator blades, veneer knives blades, guillotine blades and paper knives.

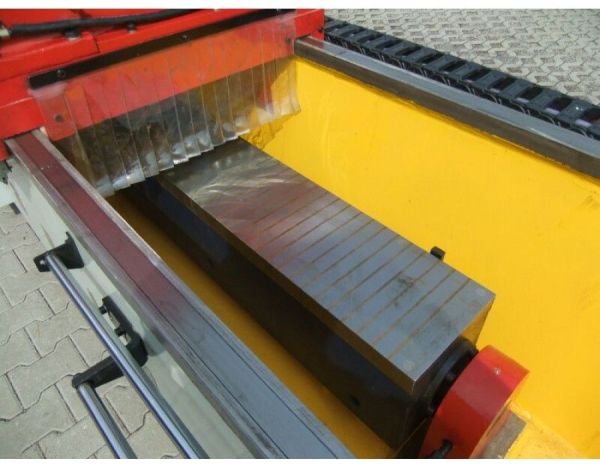

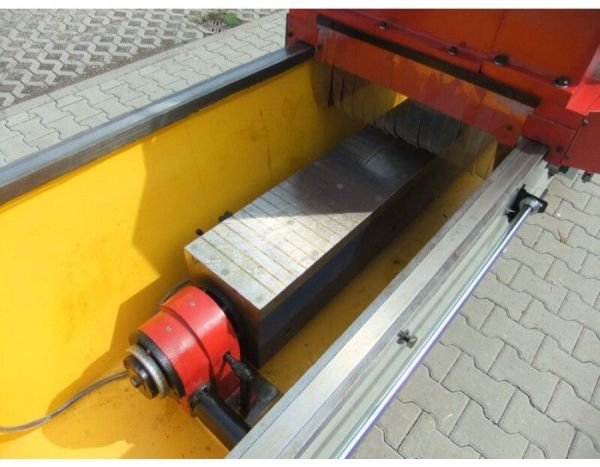

5.Rotating magnetic chuck from 0 to 90 (Polarity 20 mm)

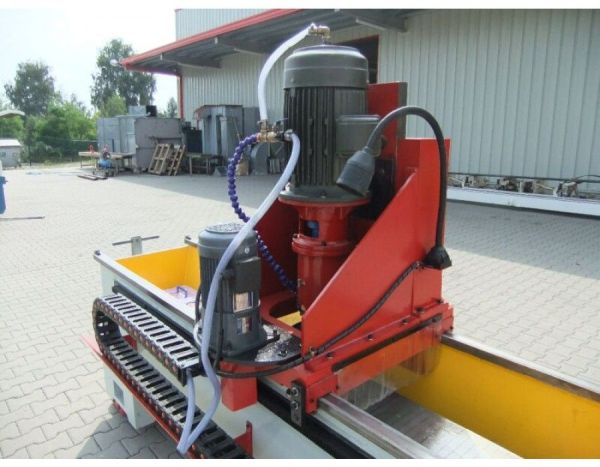

6.Grinding motor 5.5 kW (7HP)

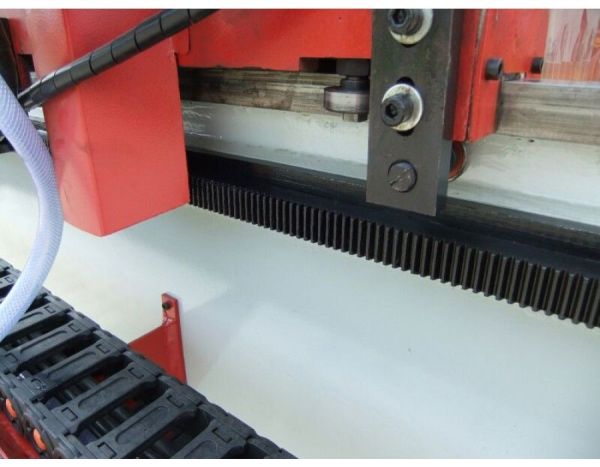

7.Variable carriage speed from 1 to 30 m/min with carriage run adjustment
8.Automatic grinding wheel down-feed
9.Programmable work cycles: roughing, finishing, spark-out;
10.Grinding wheel quick up and down approach, and slow down approach

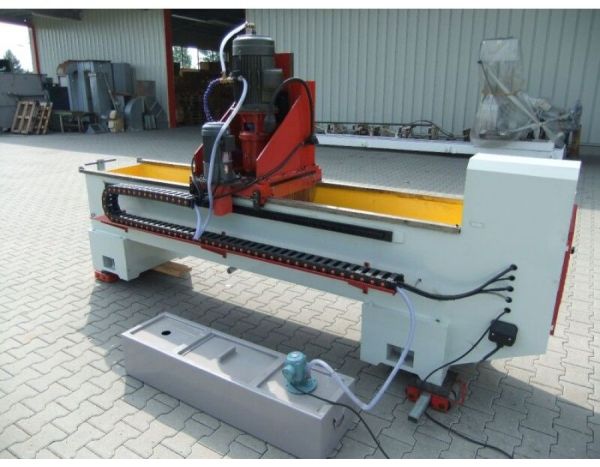

11. Separate coolant collection tank fitted with 90W motor pump
– Abmessungen L=3120, B=1100 mm, H=1600 –
– Abmessungen L=3700, B=1100 mm, H=1600
– Gewicht 2000 kg
– Gewicht 2500 kg |
