Özgenc Makina WDE 200 Double Head Saw 45° with Dowel Router or Dovetail Tenon
Özgenc Makina WDE 200 Double Head Saw 45° with Dowel Router or Dovetail Tenon.
Tekniske data:
It is designed to cut the wooden door frames and moldings 45 ° – 90 ° and open the connection point.
There are a total of 4 motors on it that serve as 2 cutters and 2 drills.
It opens the connection holes in 90 – 45 degree joints.
There are 2 asynchronous and 2 inverter motors.
Finishes the molding process in 20 seconds.
Precise movement with linear rails
|
Sawblade Diameter
|
190 mm
|
|

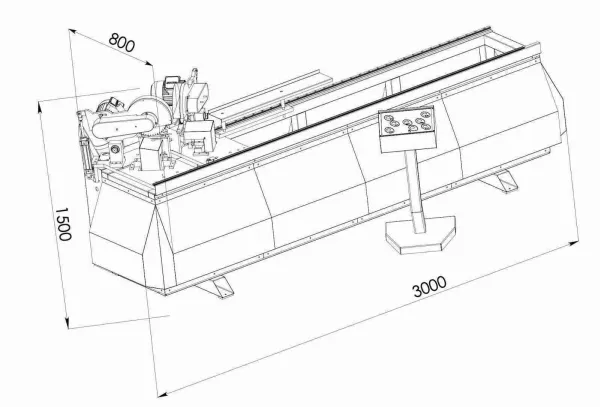

Length
|
3000 mm
|
|
Width
|
800 mm
|
|
Height
|
1500 mm
|
|
Weight
|
465 kg
|
Air Consumption
|
Cutting Motor Rev
|
2860 rpm
|
|
Cutting Sawblade Motor Rev
|
5000 RPM
|
|
Cutting Motor Power
|
1.3 kWh
|
|
Drilling Motor Power
|
0.75 kW
|
|
Cutting Tool Quantity
|
2.1 kWh
|
