Omec SCA 1200 automatisk skuffepresse

Omec SCA 1200 automatisk skuffepresse..

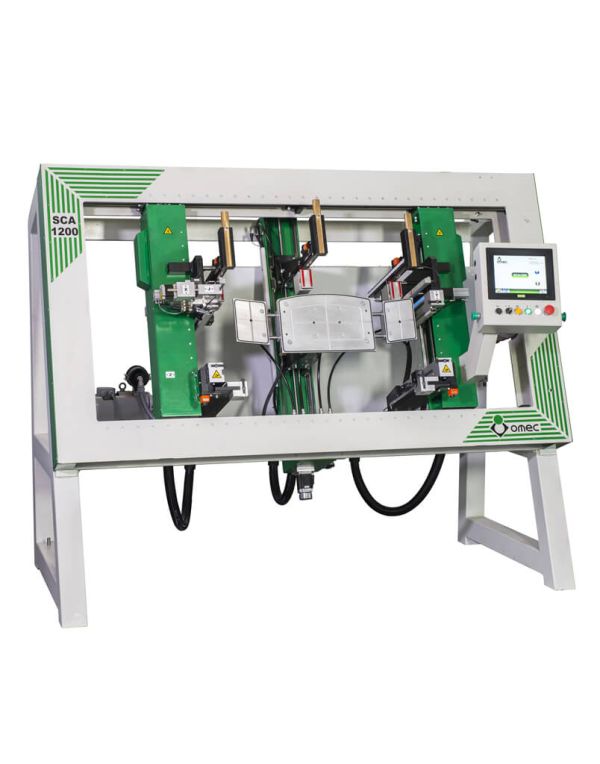

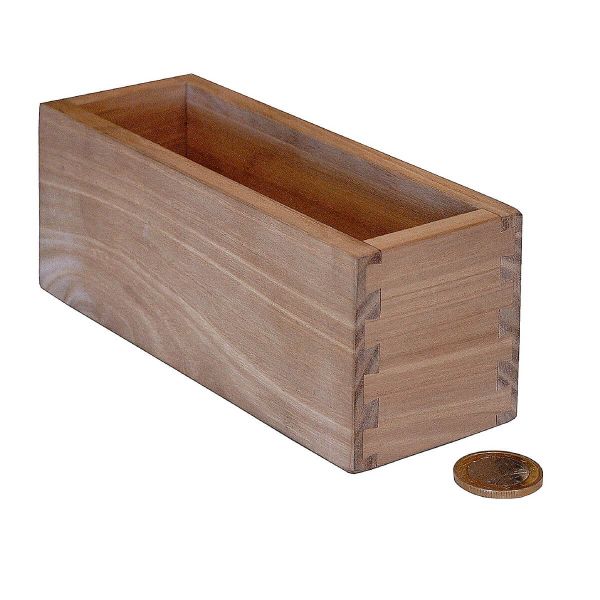

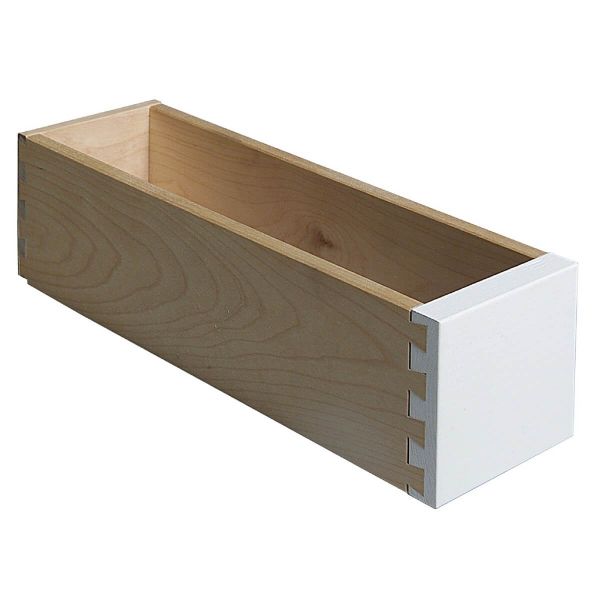

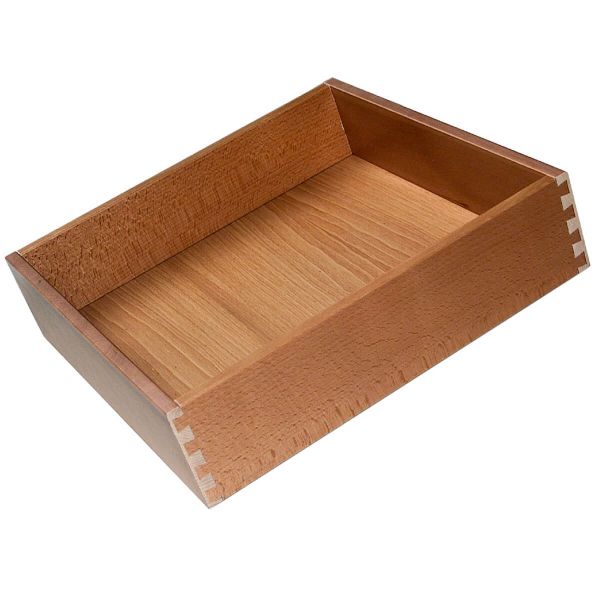

The OMEC SCA1200 7-axes automatic clamping machine with numeric control has been designed to assemble curved and straight drawers with five separate elements with dovetail joints . The machine can assemble drawers with or without the bottom. The SCA1200 automatically adjusts the position of the clamps according to drawer’s dimensions and shapes. The machine can , in fact, assemble curved symmetrical and asymmetrical drawers, with concave, convex and mixed front bent boards . This machine is supplied with a vacuum system allowing to keep the drawer’s bottom in position. The machine is controlled with a pushbutton panel and a touch screen control panel. The SCA1200 is controlled by numeric control programmed for the greatest working flexibility,  allowing to modify within the operating limits the following variables :

  • the drawers’ width
  • the sides’ length
  • the central drawers’ length
  • the position of the vacuum unit to hold drawers’ bottom
  • the bottom groove’s position

All the adjustments can be easily performed by following the instructions provided directly by the software on the display of the machine.

.

TECHNICAL CHARACTERISTICS

On board machine installed power Kw 4
Working pressure MPascal 0,7
Drawers’ production output n/h 100
Machine weight kg 980
Packed machine weight kg 1180
Over-all dimensions (l x w x h) cm 160x220x180
Packing dimensions cm 180x240x200



.

DIMENSIONAL LIMITS OF WORKPIECES

Min Max
Drawer Width 230mm 1200mm
Drawer Depth 50mm 350mm
Drawer Height 230mm 600mm
Front Projection 0mm 30mm
