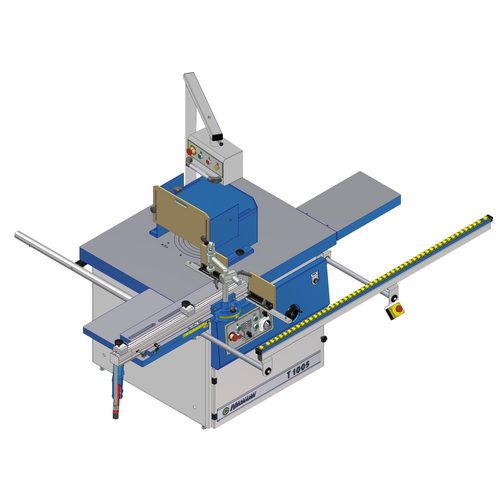

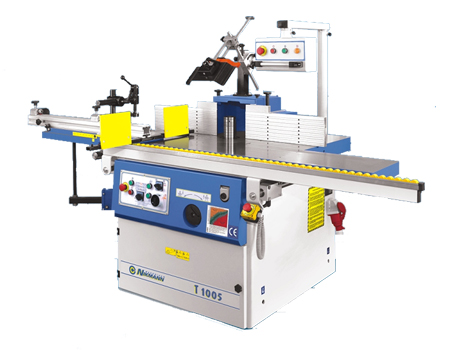

Nikmann T1005 fræser med kipbar spindel 45°
Nikmann T1005 fræser med kipbar spindel 45°
Elektrisk op/ned og manuel kip.
Fixed cast-iron working table with grinded surface. Non-tilting spindle and changeable arbors with Morse cone MK 5. Spindle, mounted on precise bearings for maximal spindle speed 10000 min-1. Support (protector) for the tool for profiling with maximal diameter ø275 mm. Integral safety guides with total length 1100 mm and height 154 mm. Light indication for the spindle speed. 6 spindle speeds /two-speeds motor/. Dust collection ports with diameter Ø 120 mm – under and over the working table. Electronic brake for electrodynamic stopping. Mounted device for spindle blocking while replacement the tool. Electric blocking the start of the machine while replacement the tool through an electric limit switch. Electric blocking the start of the machine by the change of revolutions through an electric limit switch. Vertical and horizontal clamping device. Movable control panel over the working table /on a level with eye/.
| STANDART PERFORMANCE |
T 1005 |
| Elektrisk op/ned manuel kip | 90°/45° |
| Working table dimensions, mm | 1100 x 900 |
| Working table height from the floor level, mm | 850 |
| Distance between the front part of the
working table and the spindle center, mm |
450 |
| Changeable arbor
– Morse cone – Diameter, mm – Usable length, mm |
MK5 Ø 30 160 |
| Diameters of the holes in the working table, mm | ø75, ø110, ø160, ø210,ø260, ø310, ø360 |
| Spindle tilting | – |
| Vertical movement of the spindle,mm | 200 |
| Spindle revolutions, min-1 | 3000/ 4000/ 5000/ 6000/ 8000/ 10000 |
| Max. tool diameter, mm:
– for profiling – for tenoning |
Ø 275 Ø 400 |
| Max. diameter/depth of the tool moving under the working table surface | Ø 350 / h=100 |
| Motor power, 3-phases, 2-speeds, 50 Hz, kW (HP) | 4.5 / 5.5 (6.0 / 7.5) |
| Motor power for the spindle movement, kW (HP | 0.12 (0.16) |
| Integral safety guides | 2 х 550 |
| Dust collection port diameter, mm
– over the working table – under the working table |
Ø 120 Ø 120 |
| Overall dimensions L x W x H (without the movable control panel), mm | 110 0x 1000 x 1120 |
| Weight, kg | ~580 |
| OPTIONS | |
| Left / right spindle rotation | |
| 1-speed motor 7,5kW /10,2 HP/ – revolutions of the spindle 4000, 6000, 8000 min-1 | |
| Extension of table | |
| Cariage with tenoning table and tenoning hood, Ø400mm | |
| Extension tables 500x320mm from the right and from the left of the working table | |
| Feeder MX 38- with 3 feeding rollers and 8 feeding speeds | |
| Feeder MX 48- with 4 feeding rollers and 8 feeding speeds | |
| Changeable arbor –
Diameter / usable height, mm |
Ø30/140, Ø32/140, Ø35/140, Ø40/160, Ø1 1/4″/140 |
